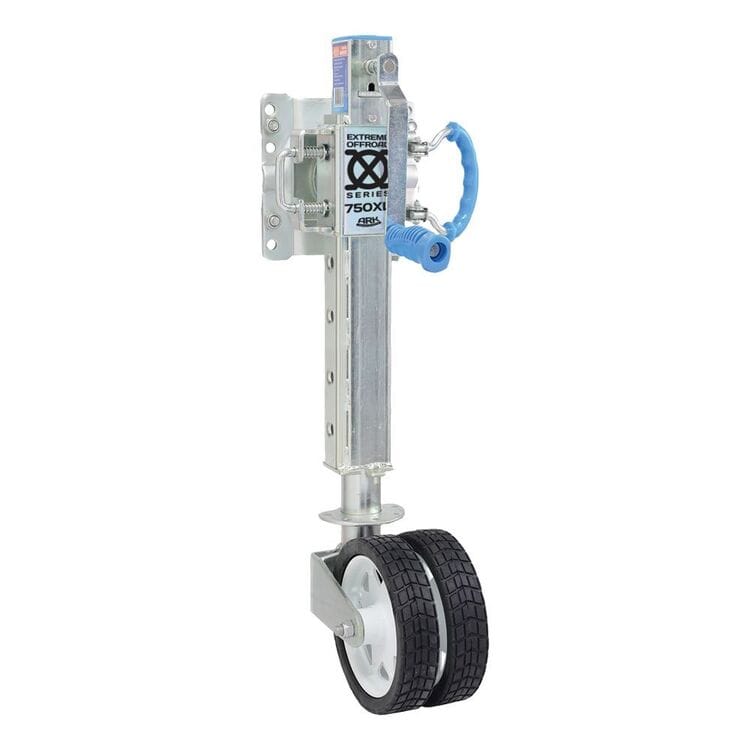

Ark 750 XL Off Road Jockey Wheel
Price
$339.00 Inc.GST
Shipping
The Ark XO 750 XL Off Road Jockey Wheel is the ultimate heavy-duty upgrade engineered for lifted, modern off-road campers and caravans. With an elongated main body that adds 140mm of lifting height over the standard model, it’s designed to accommodate rigs running larger 17-inch alloy wheels and aggressive off-road tyres without breaking a sweat.
Engineered for the Toughest Tracks
Built to conquer unforgiving terrain, this jockey wheel features a highly manoeuvrable, easy-pivot trailing yoke system paired with dual 8-inch solid tyres. This design distributes heavy drawbar loads smoothly across mud, sand, and loose gravel without digging in or bogging down.
Frustrations with fixed brackets and tight spaces are eliminated thanks to highly adjustable frame mount options and variable stowage locking positions, allowing you to easily clear front utility boxes, stone guards, or jerry can holders during transit.
Key Performance Features:
- Extended Body Assembly: Delivers crucial extra frame clearance and lift height while safely managing heavy nose weight.
- Premium Dual Wheels: Integrated 2 x 8″ (200mm) wheels outfitted with fully sealed precision bearings and a rugged off-road tread pattern.
- Rigid 4-Bolt Swivel Clamp: Heavy-duty pivot geometry completely prevents drawbar bowing, twisting, or flexing under load.
- Flexible Stowage Lock: The variable yoke lets you pivot and lock the wheels across 5 positions to clear front towing accessories.
- Detachable Magnetic Handle: The side-winding handle unplugs instantly to safeguard against trail hazards, stone damage, and campsite tampering.
Technical Specifications
| Static Load Rating | 750 kg |
|---|---|
| Height Range | 295 mm minimum to 850 mm maximum |
| Height Adjustability | 6 x adjustable height positions (up to 250 mm extension per setting) |
| Wheel Configuration | Dual 8-inch (200 mm) premium solid tyres |
| Bearing Type | Fully sealed precision ball bearings |
| Drawbar Compatibility | Fits 75 mm, 100 mm, 130 mm, and 150 mm rectangular chassis rails (all mounting hardware included) |
| Finish / Corrosion Resistance | Premium zinc-plated finish, rigorously salt-spray tested for 600 hours |
| Product Weight | Approximately 20 kg |
Frequently Asked Questions
Q: How does the XL variant differ from the standard Ark XO750 model?
A: The XL version features an elongated main body assembly that extends the maximum lifting height up to 850mm (giving you an extra 140mm of lift over the standard model). It also increases incremental body adjustments to 6 positions from 4, making it ideal for modern off-road caravans with high ground clearance.
Q: Does this jockey wheel require welding onto my trailer A-frame?
A: No welding or permanent modification is required. The unit comes with heavy-duty 4-bolt trailing-mount hardware designed to bolt straight onto standard rectangular drawbars ranging from 75mm to 150mm.
Q: How do I prevent the jockey wheel from swinging loose while driving?
A: The assembly incorporates a dedicated locking pin mechanism. When you pull the primary release handle to swing the jockey wheel up into its horizontal travel position, align the pin with one of the built-in base saddle holes to lock it securely in place against track vibrations.
Q: Why is the winding handle removable?
A: The side-winding handle uses a strong internal magnet so it can be detached instantly. This keeps it from hitting stone guards during setup, prevents it from snagging on low rocks or branches off-road, and deters theft at the campsite.
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 50 × 25 × 25 cm |
