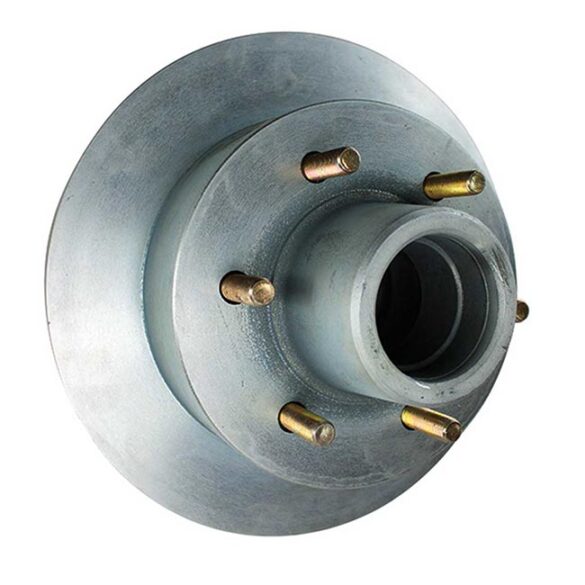

Landcruiser Disc Rotor 2t

2t Landcruiser Disc Rotor up to 4.5t for Tandem Axles

Landcruiser Disc Rotor 2t is robust and used on axles over 1600kg. The actual rating for this rotor is 2.25t.

Disc Rotor suits

• 5 Stud Landcruiser – 5 x 9/16-inch Studs – 2.25t – 150mm P.C.D.
• 5 Stud Landcruiser – 5 x 14mm Studs – 2.25t – 150mm P.C.D. (Metric Studs)
• 6 Stud Landcruiser – 6 x 1/2-inch Studs – 2.25t – 139.7mm P.C.D.
• 6 Stud Landcruiser – 6 x 12mm Studs – 2.25t – 139.7mm P.C.D. (Metric Studs)

Alko Disc brake rotor specifications, click here.

We recommend replacing the phenolic piston with a stainless piston for a longer piston life when using Trojan calipers. A worn or scratched phenolic piston causes swelling, which results in sticking pistons.

Bearing kit to suit 2t disc brake rotor

• Inner ID 50mm, OD 89.96mm – HR30210
• Outer ID 31.75mm, OD 61.95mm – 15123/15245
• Seal ID 60.3mm, OD 89.96mm – 64607
• Grease Cap O.D. 63mm  DC2

Note 1: 2t Disc rotors do not include a bearing kit. We recommend using Japanese Bearings.

Disc hubs are cast to have the hub, which houses the wheel bearings.

Couplemate can provide disc hubs and rotors drilled to suit the majority of popular wheel drilling patterns ex-stocDepending on compatibility, we

We can also manufacture disc rotors to fit most other drilling patterns on reqlity.

Associated disc brake rotor parts

• Al-ko Hydraulic Disc Caliper
• Al-ko Stainless Hydraulic Disc Caliper
• Universal Hydraulic Disc Pads
• Universal Stainless Hydraulic Disc Pad
• Couplemate Hydraulic Caliper Piston 316 Stainless
• Couplemate Hydraulic Caliper Piston Seal Repair Kit
• 12-inch Deemaxx 2t Disc Brake Rotor

Couplemate use Landcruiser 2t Disc Rotors on the following equipment

• 50mm Square Hydraulic Disc Brake Axle
• 50mm Square Mechanical Galvanised Disc Brake

Couplemate ships via Australia Post, Startrack, Fastway and T.N.T to all parts of Australia. Delivery times may vary.
