Tray Back Camper Jack Stand
Price
$236.00 Inc.GST
Shipping
Level Up Your Outback Adventures!
Meet the Manutec Heavy Duty Tray Back Camper Jack Stand—Australia’s most popular choice for a secure, rock-solid 1.4 to 1.5 metre lift.
When it comes to hitting the rugged tracks, top camper manufacturers don’t compromise. They rely on premium, high-quality Manutec equipment as their preferred camper legs. If the pros trust it, your rig deserves it too! Engineered to slide on seamlessly, lift smoothly, and tackle tough Australian conditions with absolute ease.
Why Aussie Adventurers Choose Manutec:
- Massive Support: Boasts a staggering 1,000kg static load capacity per stand.
- Built Outback Tough: Premium steel construction featuring heavy-duty 60mm x 60mm outer tubing.
- Effortless Operation: Comes with a convenient removable hex handle for quick manual adjustments.
- Maximum Versatility: Fits securely via a steel box section welded right to the outside of the bracket.
Technical Specifications
| Feature | Specification |
|---|---|
| Static Load Capacity | 1,000kg per stand |

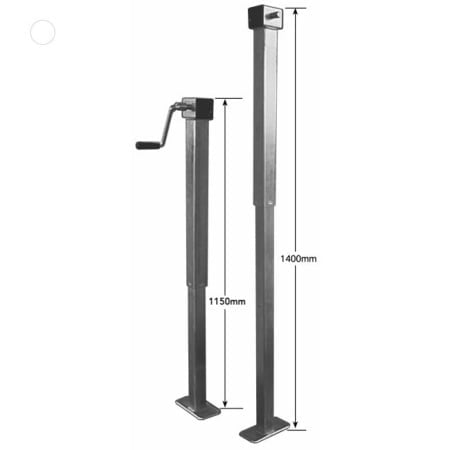

| Closed Length | 1150mm |
| Open Length | 1400mm |
| Lift Travel | 378mm (approximately) |
| Outer Tube | 60mm x 60mm x 4mm |
| Inner Tube | 50mm x 50mm x 4mm |
| Weight | 12.2kg |
| Handle Type | Removable hex handle |
Simple 4-Point Setup
Loading and unloading your camper trailer or RV is simple. Just insert the steel box sections into your camper body at 4 points, and slowly lift.
⏱️ Time-Saving Tip: While an electric drill with a hex head is great for raising the stands quickly, the manufacturer recommends using the manual handle to lower them safely.
One Heavy-Duty Stand, Endless Applications!
This fast-selling powerhouse can even be custom-made to suit unique cab campers, and works perfectly for a massive variety of lightweight applications:
- Flat tray & dual-cab utes
- Aluminium ute campers
- Single cab trays
- Camper trailers
- Independent suspension trailers
- Water tanks & toolboxes
- Canopy lifts
- Fridge slides
- Mobile cold rooms
- Truck campers
Couplemate offers a variety of Medium & Heavy-Duty Jack Stands
- Camper Jack Stand 2T
- Drop Leg Jack Stands
- Heavy Duty Camper Jack Stand
- Mounting Brackets for Jockey Wheel Stands
- Fixed Handle Landing Legs – 1000kg
- Swivel Brackets
- AL-KO Wind Down Landing Leg 1300kg
1.4m Tray Back Camper Jack Stands
Frequently Asked Questions and Safety Guidelines
What is the weight capacity of these jack stands?
Each jack stand is rated for 1,000 kg (1 Tonne), for a combined capacity of 4,000 kg with a standard set of four. Always check your camper’s wet weight (including water and gear) before lifting.
Are these stands compatible with 1.4-metre (1400mm) tray profiles?
Yes. These stands are specifically engineered with an extended lift height and mounting brackets designed to clear standard 1.4m tray setups, ensuring seamless loading and unloading from high-clearance 4WD vehicles.
How do the stands attach to the camper body?
The stands utilise heavy-duty slip-in square tube receivers that lock securely with safety linchpins. This ensures quick installation when unmounting the camper and easy removal before hitting the road.
Can I leave the camper on the jack stands long-term?
Yes, the stands are built for stationary storage. However, for extended periods, we recommend:
- Lowering the camper as close to the ground as safely possible to minimise sway.
- Storing the camper on level, solid concrete or stable ground.
- Using stabiliser pads under the base plates on softer terrain.
Is it safe to sleep inside the camper while it is on the stands?
While the heavy-duty stands can technically support the weight, we strongly recommend lowering the camper to a secure sub-frame, block system, or keeping it mounted to your vehicle tray if you plan to sleep or move around inside.
Additional information
| Weight | 19 kg |
|---|---|
| Dimensions | 105 × 20 × 20 cm |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
1 review for Tray Back Camper Jack Stand
Only logged in customers who have purchased this product may leave a review.
John parkinson –
How is your Tray back Camper jacks fixed to the camper?
Stephen Wotherspoon –
Hello John, There are many ways to attach jack legs to campers depending on possible attachment point. Suggest review youtube videos as there is no advice from the manufacturer at this time.
