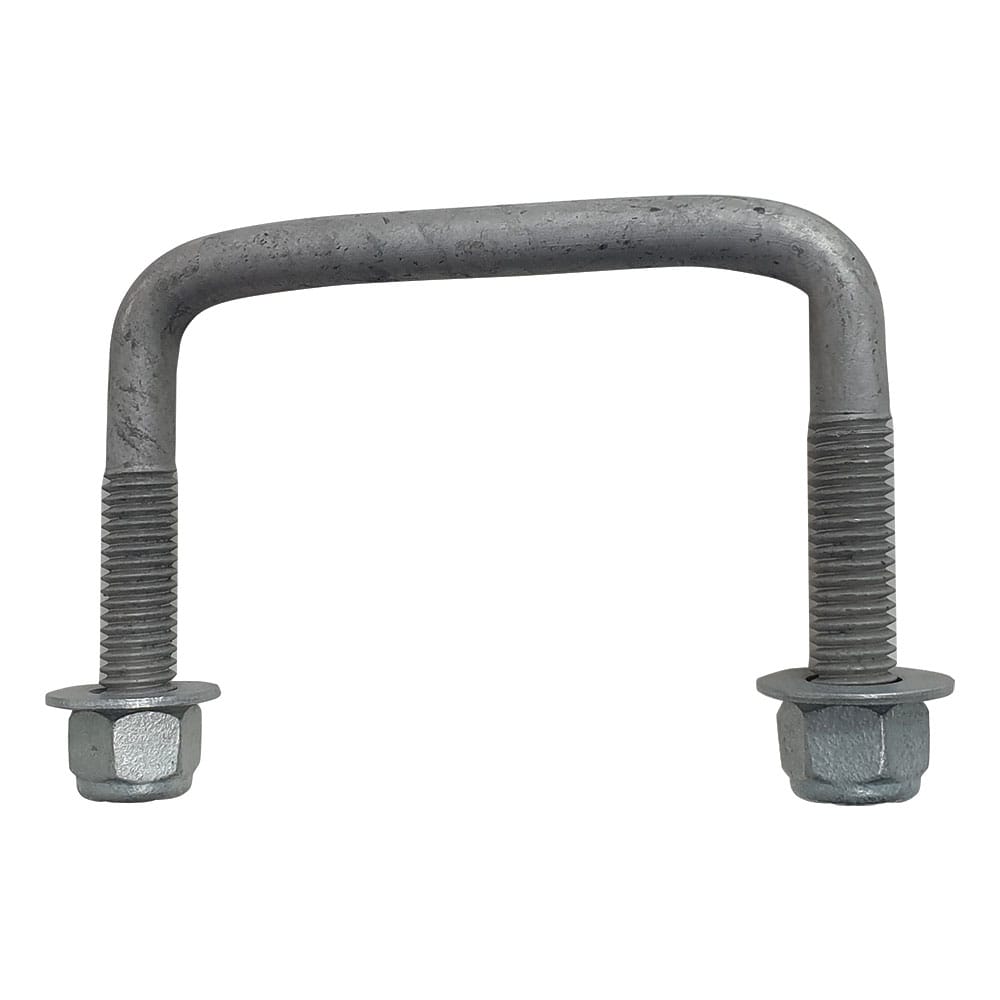

100mm Square Galvanised U-Bolts

SKU: N/A Category: U-Bolts and Kits Tag: U-bolts Brand: BoltBiz

Couplemate 50mm 45mm sqaure trailer u-bolt dimensions M16x2 5/8 inch unf

Price

Price range: $7.95 through $11.24 Inc.GST

U-Bolt Length

Clear

U-bolt is available from 75mm to 200mm lengths. Add roughly 13mm to your length for the spacer plate and nut/washer.

✓ Galvanised U-bracket with 60mm thread length.
✓ Includes 2 x Galvanised Nyloc nuts (1/2″ BSW).
✓ Also available in a U-bolt clamp kit.

All dimensions (length, width) are the internal U-Bolt measurements.

Shipping

Select delivery location

100mm Square Galvanised U-Bolts Including Hardware

100mm Square Galvanised U-Bolts can be used for a range of projects.

Our customers often use these U-bolts, which come in various leg lengths, to secure jockey wheels to their caravan chassis or boat trailer.

Specifications: 100mm Square Galvanised U-Bolts

75mm Long
100mm Long
125mm Long
150mm Long
200mm Long

How to measure U-bolts

Measure u-bolts from the inside of the bolt. Example. 75mm u-bolts fit 75mm drawbars or chassis rails.

100mm Square Galvanised U-Bolts Include

Galvanised Nylocs
Zinc washers

Trailer Spare Parts News Articles

Why U-bolts could be the primary cause of accidents.
Incorrectly tightened U-bolts on a truck chassis can lead to catastrophic failure.

Galvanised U-bolt clamp kits

Frequently Asked Questions & Installation Guide

✔What are they used for? Ideal for securing jockey wheels, spare tyre carriers, and suspension parts to 100mm square trailer or caravan chassis.
✔Are they rust-resistant? Yes, the hot-dipped galvanised finish offers high corrosion protection in harsh marine and boat trailer environments.
✔What does the kit include? Each U-bolt comes complete with matching flat washers and secure Nyloc nuts or spring washers.

👍 The Do’s

Measure first: Check your chassis or tube width to ensure a perfect 100mm square fit before ordering.
Tighten evenly: Crank down both sides bit by bit to maintain even alignment and clamping pressure.
Recheck load: Tighten your nuts again after your initial trip to settle the load safely.

👎 The Don’ts

Don’t reuse worn parts: Discard old U-bolts showing heavy rust, deep cracks, or stripped threads.
Don’t force fit: Avoid using square-bend bolts on round axle setups, as they will not clamp properly.
Don’t over-torque: Avoid using aggressive impact wrenches that might strip the galvanised threads.

Additional information

Weight	0.5 kg
Dimensions	12 × 10 × 2 cm
Bolt Diameter	12.7mm
U-Bolt Width	100mm
Stud Thread	1/2" BSW
Fastener Type	U-Bolt
Coating	Galvanised
Torque	1/2-inch – 60Nm
U-Bolt Length	75mm, 100mm, 125mm, 150mm, 200mm
