50mm Square Galvanised Axle | Parallel, Unbraked | Landcruiser

SKU: N/A Categories: Axles - Unbraked, Axles Brand: Couplemate

Price

$800.00 Inc.GST

Stud Pattern (PCD)

Clear

Shipping

Select delivery location

This 50mm square galvanised axle (parallel and unbraked) is a heavy-duty, corrosion-resistant towing solution designed specifically for marine environments and high-capacity utility trailers.

Rated for 1,600kg, this axle utilises a Parallel bearing configuration to provide superior strength and durability compared to standard slimline setups.

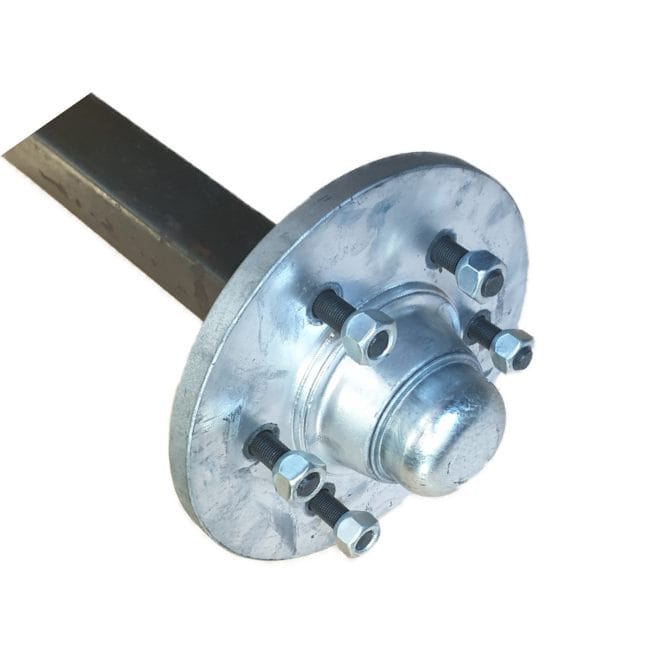

Note: Image shows black axle, it should show a galvanised axle.

Product Overview

Built to withstand the harshest saltwater conditions, this axle features a solid 50mm square beam with a hot-dipped galvanised finish. By using the same large bearing (L68149) for both the inner and outer positions, the “Parallel” design effectively increases the axle’s load-carrying capacity and lifespan, making it the ideal choice for large boat trailers and off-road campers.

Key Features

Solid 50mm Square Beam: Forged from high-grade structural steel to ensure maximum rigidity and resistance to bending under heavy loads.
Hot-Dipped Galvanised Finish: Provides an industry-leading protective barrier against rust and corrosion—essential for boat trailers frequently submerged in salt water.
Parallel Bearing Setup: Engineered for 1,600kg capacity, utilising two large L68149 bearings per hub to distribute weight more evenly across the spindle.
Versatile Hub Options: Available in popular 5-stud and 6-stud LandCruiser bolt patterns (PCD 139.7mm) (PCD 150mm) to match heavy-duty 4WD rims.
Unbraked Simplicity: A clean, low-maintenance design for trailers where independent braking is not required (within legal weight limits) or for use as a secondary axle.

Technical Specifications

Axle Size: 50mm Solid Square
Load Rating: 1,600kg
Bearing Type: Parallel (Inner: L68149 | Outer: L68149)
Stud Patterns: 5-Stud LandCruiser or 6-Stud LandCruiser
Material: Galvanised Structural Steel
Hubs: Includes two galvanised lazy hubs, pre-pressed with studs.

Why Choose a Parallel Axle?

Standard axles often fail at the outer bearing under heavy loads. The Parallel system replaces the small outer bearing with a second, larger inner bearing, significantly increasing the surface area available for load distribution. This results in a cooler-running hub and a much higher safety margin for long-distance towing.

There are no FAQs for this product.

Additional information

Weight	80 kg
Dimensions	40 × 240 × 40 cm
Stud Pattern (PCD)	5 Stud Landcruiser (5 x 150mm), 6 Stud Landcruiser (6 x 139.7mm)
