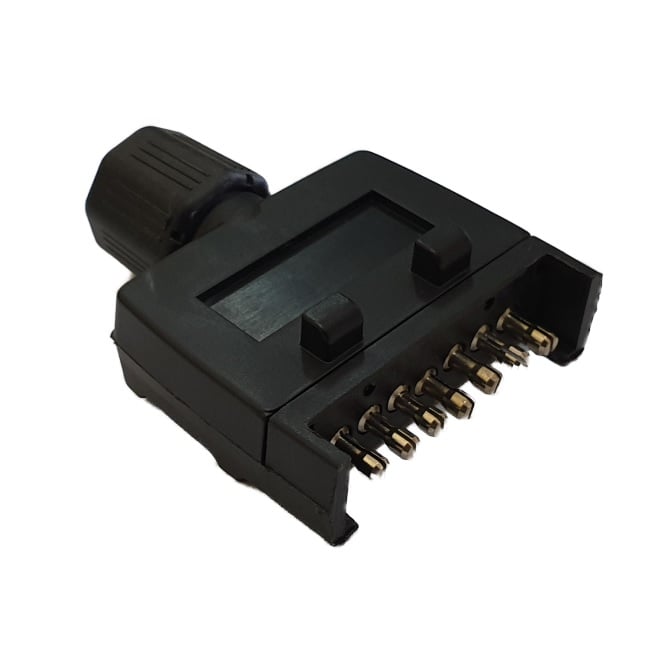

7-Pin Flat Trailer Plug
Price
$16.50 Inc.GST
✓ Flat male plug (trailer side).
✓ Pins made from stainless steel.
✓ Supplied with circuit wiring diagram.
Shipping
7-Pin Flat Plug for Trailer & Caravan Towbars
Ensure a reliable, corrosion-resistant electrical connection with the heavy-duty Couplemate™ 7-Pin Flat Trailer Plug, featuring premium stainless steel terminal screws.
Product Description
Specifications & Wiring Diagram
- Plug Type: 7-Pin Flat Type (Standard Australian System)
- Voltage Rating: Optimised for 12V automotive systems
- Terminal Material: High-grade Stainless Steel screws
- Application: Heavy-duty use on boat trailers, caravans, camper trailers, and box trailers
Standard Australian 7-Pin Flat Wiring Diagram
Each plug adheres to the standard Australian 12V trailer wiring circuit. Use the reference table below to precisely match your cable core to the correct terminal pin:
| Pin No. | Circuit / Function | Recommended Wire Colour |
|---|---|---|
| 1 | Left-Hand Turn Indicator | Yellow |
| 2 | Reversing Signal / Auxiliary | Black |
| 3 | Earth Return / Ground | White |
| 4 | Right-Hand Turn Indicator | Green |
| 5 | Service Brakes (Electric Brakes) | Blue |
| 6 | Stop Lamps (Brake Lights) | Red |
| 7 | Rear Lamps, Clearance, & Side Markers | Brown |
Why Order with Couplemate™?
- Express Dispatch & Flexible Freight: We ship nationally across Australia and internationally. Choose from our fast courier network, your own preferred carrier (for trade account holders), or convenient Click-and-Collect.
- Wholesale & Bulk Incentives: High-volume commercial accounts and trade discounts are available. Apply via our wholesale portal to unlock competitive tier pricing.
- 60+ Years of Combined Expertise: Access expert tech support and towing advice from a highly knowledgeable Australian team.
Frequently Asked Questions (FAQ)
Why are stainless steel screws better than standard aluminium ones?
Standard aluminium terminals are fragile and frequently snap or strip when you tighten them down on heavy-gauge wire. Stainless steel screws provide a much stronger physical hold, handle higher torque during installation, and drastically reduce corrosion risk over time.
Will this 7-pin flat plug fit my standard Australian vehicle socket?
Yes. This plug strictly follows the standard Australian physical format and wiring configuration, making it fully compatible with all standard 7-pin flat vehicle sockets installed across Australia.
Can I use a 7-pin flat plug with a 12-pin socket setup?
Yes, a standard 7-pin flat trailer plug will physically plug into the top row of a standard 12-pin vehicle socket. However, it will only operate the primary 7 lighting circuits (pins 1 to 7).
Related Towing & Electrical Components
There are no FAQs for this product.
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 10 × 5 × 3 cm |
