Dexter Bearing Kits to suit Trailers and Caravans.

Dexter bearing kits suit American Dexter marine trailers and Caravans. Select from NSK long haul Japanese bearings. 1.6t and 2t.

Melbourne Trailer and Caravan Supplies (MTCS) were the Australian distributors of Dexter Trailer products, Melbourne, for over 30 years.

These products included NSK Dexter Bearings Melbourne and other Dexter products and spare parts.

Dexter, in recent years, purchased Al-ko International and then integrated MTCS into the Al-ko distribution network,

1.6t Dexter bearings are easy to identify and, as a result, easy to purchase.

2t Dexter bearings are difficult to identify because of several variations in outer bearings and seals. The inner bearing will be consistent (25580).

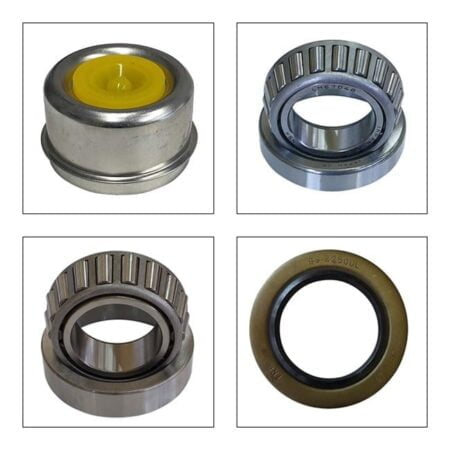

The bearing kit from NSK Japan includes front and back bearings, seal and pressed steel hub cover.

1.6t Dexter Bearing Kit (3500lbs)(CM483)

  1. Inner ID 35.00mm, OD 59.97mm - 68149/111
  2. Outer ID 27.00mm, OD 50.29mm - 44649/10
  3. Seal ID 44mm, OD 65.22mm - GS-1719DL
  4. 1.98" Dexter Rubber Grommet Dust Cap - DC200L

2t Dexter Bearing Kit (CM484USA2T)

  1. Bearing ID 44.45mm, OD 82.93mm – 25580/20
  2. Outer ID 31.75mm, OD 61.95mm – 15123/245
  3. Seal ID 47.8mm OD 85.7mm – 33940
  4. Marine Grease Cap DC250L
Penrite Bearing Grease

Couplemate recommends Penrite grease for all Caravans and Trailers. Click to purchase

2t Dexter Bearing Kit (CM484USA2T-2.00)

  1. Bearing ID 44.45mm, OD 82.93mm – 25580/20
  2. Outer ID 31.75mm, OD 61.95mm – 15123/245
  3. Seal ID 52.4mm OD 85.7mm – 33970
  4. Marine Grease Cap DC250L

2t Dexter Bearing Kit (CM484USA2T-2.125)

  1. Inner ID 44.45mm, OD 82.93mm – 25580/20
  2. Outer ID 31.75mm, OD 61.95mm – 15123/245
  3. Seal ID 2.125", OD 3.376" – GS-2125DL (Double Lip)
  4. Grease Cap DC250L

2t Dexter Bearing Kit (CM484USA2T-2.25)

  1. Inner ID 44.45mm, OD 82.93mm – 25580/20
  2. Outer ID 31.75mm, OD 61.95mm – 15123/245
  3. Seal ID 2.25, OD 3.376" – GS-2250DL (Double Lip)
  4. Marine Grease Cap DC250L

Melbourne Trailers 2t Dexter Bearing Kit  (CM484MEL2T)

  1. Inner ID 44.45mm, OD 82.93mm – 25580/20
  2. Outer ID 31.75mm, OD 59.10mm – 67048/10
  3. Seal ID 50mm, OD 85mm – 64190
  4. Grease Cap CM498

Melbourne Trailers 2t Dexter Bearing Marine Kit  (CM484MEL2TM)

  1. Inner ID 44.45mm, OD 82.93mm – 25580/20
  2. Outer ID 31.75mm, OD 61.95mm – LM67048/10
  3. Seal ID 50mm, OD 85mm – 82130
  4. Grease Cap CM498

Bearings are rated as follows

  • 1450kg - 45mm Round or Square Axle (Ford or Slimline Bearings)
  • 1450kg - 50mm Round or Square Axle (Ford or Slimline Bearings)
  • 1600kg - 45mm Round or Square Axle (Parallel Bearings)
  • 1600kg - 50mm Round or Square Axle (Parallel Bearings)
  • 45mm Round or Square Axle (Dexter 1.6t Bearings)
  • 1600kg - 50mm Round or Square Axle (Dexter 1.8t Bearings)
  • 2250kg - 50mm Square or 60mm Round Axles (2.25t Bearings)

It is wise to remove the old bearing cups when replacing bearings. Cups and races are subject to wear and tear. If you witness carbon black in your grease or black grease, cups and races need immediate replacement.

Low-quality bearings have poor coatings and low tolerances. These bearings wear quickly and are not suitable for long-haul, high-speed use.

Use high temperature bearing grease for use at high speeds.

It fits the following hub, disc and drums.
