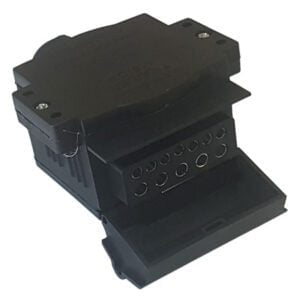

12 Pin LED Plug and Socket

12 Pin LED Plug | Socket for Trailers & Caravans with stainless steel terminals for Auxiliaries. In addition, Led’s are located under the cover on the right and the left side of the Pins.

Specifications

  • 1: Ground
  • 2: Left turn signal
  • 3: Right turn signal
  • 4: Brake light
  • 5: Tail light
  • 6: Reverse light
  • 7: Auxiliary 1
  • 8: Auxiliary 2
  • 9: Spare
  • 10: Electric brake signal
  • 11: Battery charger
  • 12: Trailer supply

Why are Trailer Vision 12-pin plugs better than the more popular brands?

Simple, the stainless screws and ferrules used in this product are superior to brass ferrules and screws. Brass screws break easily when screwed in hard for a good connection.

A good tip is to spray corroded terminals with WD40. As a result, connections come back to life and become electrically conductive again.

However, this fix is short-lived and only provides a temporary solution. Consequently, the best answer is to buy a quality set of trailer LED plugs and sockets.

If you are towing a trailer, it is important to use the correct type of electrical connector. The 12 pin LED plug and socket is the best choice for most trailers, but you should check the trailer’s owner’s manual to be sure.

Here are some of the benefits of using a 12-pin LED plug and socket:

  • Increased current carrying capacity
  • Easier to see connections
  • More weatherproof
  • Can be used with LED lights

If you are looking for a reliable and durable electrical connector for your trailer, the 12 pin LED plug and socket is a good choice.

Here are some of the things to consider when choosing a 12 pin LED plug and socket:

  • The type of trailer you are towing
  • The electrical accessories you need to power
  • The weather conditions you will be towing in
  • The budget you have available

Once you have considered these factors, you can start shopping for a 12 pin LED plug and socket. There are many different brands and models available, so you should be able to find one that meets your needs and budget.

Problems associated with trailer plugs

  • Corrosion of terminals
  • Water ingress
  • Dirt ingress
  • Cable separation from terminals

Furthermore, the greatest cause of caravan plugs and socket connection problems is unsoldered and ineffective connections at the plug terminal and at the trailer lights. The simple solution is to twist the cable ends, solder the copper tips then insert into the plug ferrules and tighten.

Generally, pin connectors are brass or poor-quality brass alloy. So, Trailer Vision invented LED connectors with stainless steel screws in their terminals in an effort to combat poor connections.

12 Pin Caravan Plug and Socket Specifications

  • Pins  8 ,9, 10, 11, 12  current rating  35 amp Wire  Size  5 mm
  • Pins 1,2,3,4,5,6,7 current rating 15 Amps Wire  Size  4 mm
  • Chrome  Plated  Brass Pins with Stainless Steel Screws
  • Spring-Loaded  Front Cover with a clip to hold open separator to insulate between Trailer Circuits and AUX Battery Circuit
  • Weather Resistance Rear Cable Entry Seals  with Gripping Device for Holding Cable

As a result, bad connections are usually comprised of oxidised terminals or weak linkage. Therefore, to eliminate bad connections, Couplemate recommends soldering the ends of each cable end before insertion into the ferrule.

Trailer Vision has produced a combination of stainless steel pin screws with plated brass terminals to help prevent breakage and ensure tight contact between the socket and plug. For instance:

  • Pin 8 has a RED LED that indicates a breakaway charging circuit.
  • Pin 5 has a BLUE LED that monitors the breakaway battery circuit

Testing Breakaway Battery

  • Disconnect the trailer plug from the vehicle.
  • Pull out the pin in the breakaway switch to activate the electric braking system.
  • The BLUE flashing LED in the trailer plug must flash to indicate a breakaway battery energy source.
  • The amber light on the breakaway battery indicates batteries charging status.

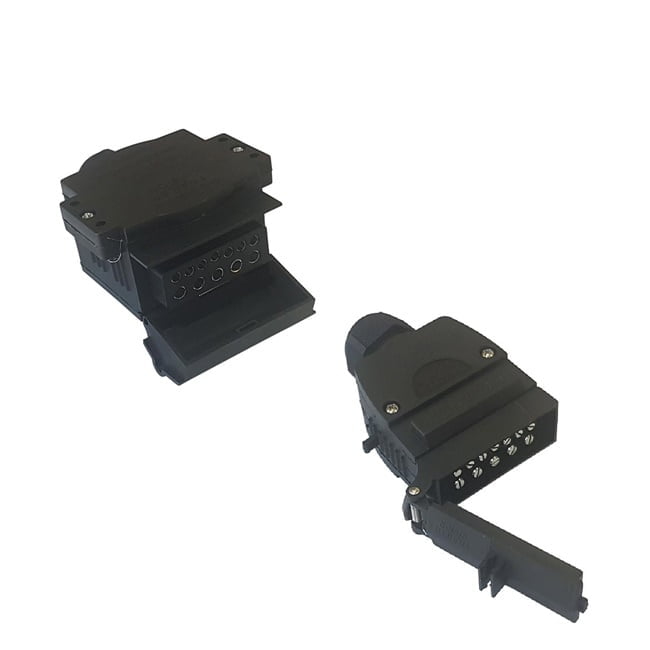

trailer plug wiring diagram12 Pin Socket

12 Pin LED Plug

Additional information

Weight0.5 kg
Dimensions15 × 10 × 3 cm
Plug or Socket

12 Pin Plug – Trailer, 12 Pin Socket – Car
