1. Incident Analysis & System Behaviour
In Australia, towing a heavy caravan over 2 tonnes gross mass (GTM) requires a breakaway system under Australian Design Rule (ADR) 38. The system operates via a continuous 12V loop controlled by a normally open switch mounted on the drawbar.

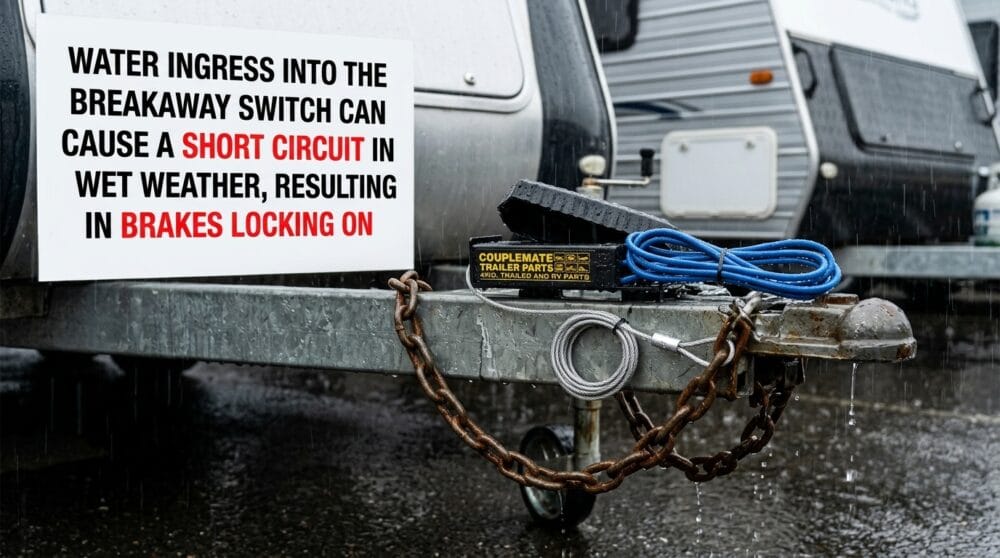

The Wet Weather Failure Mechanism
-
- The Switch Contact Short-Circuit: The breakaway switch contains two spring-loaded brass or copper contact tabs separated by a non-conductive plastic pull-pin attached to your safety lanyard.
- The Problem: When heavy rain or road spray hits the switch housing, water contaminated with road salt and road grime penetrates the pin housing body. Water bridging the internal contacts conducts electricity, completing the 12V circuit even though the plastic pin remains firmly in place.
- The Result: Because this switch bypasses the in-cab brake controller, the short circuit immediately directs raw 12V power from the dedicated 12V 5Ah backup battery to your 4t caravan’s electric brake magnets. This causes the trailer brakes to lock up or grab violently while driving, creating extreme heat and risking a severe highway accident.
2. Immediate Safe Fix Instructions
If your caravan brakes lock up or grab unexpectedly during rain, pull over safely immediately. Follow these steps to diagnose and temporarily isolate the fault:
| Step | Action | Operational Detail |
|---|---|---|
| 1 | Isolate Power | Open the main black control box and temporarily pull the main fuse or carefully disconnect the positive lead of the 12V 5Ah backup battery. This stops unintended power flow to the brake magnets so you can safely clear the roadway. |
| 2 | Displace Moisture | Remove the breakaway lanyard pin completely. Use compressed air or a generous spray of electrical contact cleaner or water-displacing spray (like WD-40) directly inside the plunger sleeve to clear out water trapped between the contact surfaces. |
| 3 | Check the In-Cab Controller | Reinsert the pin and check if your in-cab dashboard controller displays an “Open Circuit” or short-circuit indicator. If your vehicle continues to experience unexpected braking, check the main 7-pin or 12-pin trailer plug terminals for water bridge tracking. |
3. Permanent Weatherproofing & Maintenance
Standard, unsealed breakaway switches are susceptible to moisture intrusion. To permanently solve wet-weather tracking on a 4-tonne trailer, implement these hardware changes:
Hardware Solutions
- Option A: Apply Dielectric Grease Protective Barrier
Remove the pull pin and pack the inside of the switch plunger sleeve with high-quality, non-conductive dielectric silicone grease. Reinsert the pin. The grease physic - Option B: Purchase a rubber boot – Purchase Switchand Boot Here
