Drop Leg – Part – ALQR Large Aluminium Foot
Price
$16.50 Inc.GST
Shipping

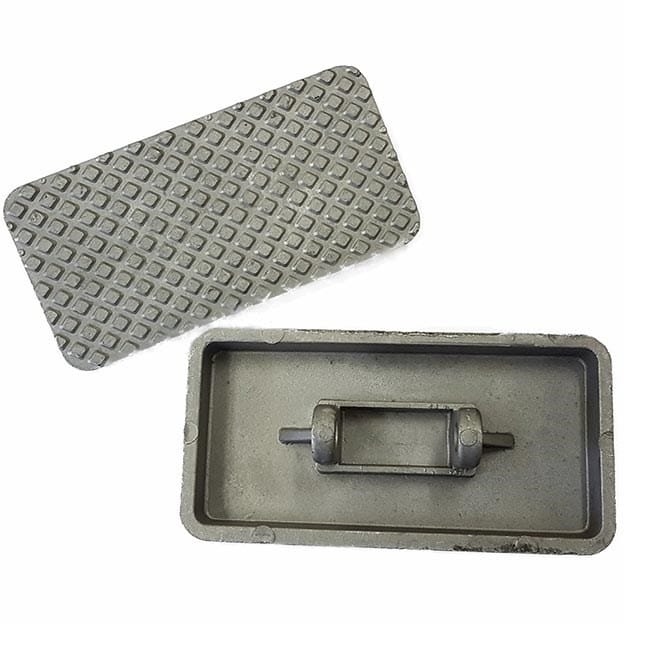

Manutec ALQR Large Aluminium Replacement Foot
The Manutec ALQR Large Aluminium Foot is a premium, genuine replacement part designed specifically for Manutec quick-release adjustable drop-down legs and corner stabilisers.
Measuring 150 mm by 80 mm, this lightweight yet structurally rigid foot features a protective plastic/rubber outer coating to withstand demanding outdoor terrain, improve ground adhesion, and prevent environmental corrosion.
Product Overview
Restore the structural stabilisation and safety of your caravan or commercial trailer with the genuine replacement Manutec ALQR Large Aluminium Foot. Engineered specifically as a direct-fit swap for popular Australian-built caravan chassis assemblies (including legacy G&S and modern AL-KO chassis setups running Manutec gear), this replacement foot ensures your stabilising legs maintain a secure footprint on loose soil, sand, gravel, or bitumen.
Constructed from high-grade structural aluminium, the component delivers robust compressive strength without adding excessive unladen weight to your trailing chassis system. The integrated plastic coating shields the raw metal assembly against abrasive terrain and moisture ingress, significantly reducing long-term wear. Equipped with an optimised pivot channel, it conforms cleanly to uneven surfaces to distribute load weights safely.
Key Features
- Genuine OEM Component: Ensures precision fitment compatibility for standard Manutec ALQR drop-down series stabiliser legs.
- Enhanced Footprint Design: Expanded 150 mm x 80 mm base improves surface area contact to mitigate trailer sinking on soft terrain.
- Advanced Plastic Coating: Safeguards raw structural aluminium from rust and road debris abrasion.
- Built-In Insect Moat Feature: Intelligent physical channel layout helps isolate the stabilizing arm from ant infestations.
Technical Specifications
| Measurement Property | Technical Parameter Details |
|---|---|
| Brand Manufacturer | Manutec Pty Ltd (Genuine Original Spare) |
| Manufacturer SKU Part Number | ALQR-LGEALUMFT / ALQR-LGEALUMFT-SP |
| Overall Length | 150 mm |
| Overall Width | 80 mm (Variant options may measure 75mm) |
| Profile Height | 25 mm |
| Net Unit Weight | 0.28 kg (270 grams) |
| Material Composition | Structural Die-Cast Aluminium |
| External Protection | Heavy-Duty Black Plastic Coated Finish |
| Fitment Requirements | Requires a Manutec 65mm pivot pin assembly (sold separately) |
Frequently Asked Questions
Q: Can I use this Manutec ALQR large foot to jack up or level my caravan?
A: No. Manutec ALQR systems are strictly engineered as stabilising legs to prevent chassis rock. They are not structural lifting or levelling jacks. Attempting to support full vehicle corner mass can buckle the foot assembly or leg mechanisms.
Q: Does this single replacement foot pack include the steel pivot pin or securing nut?
A: No. This item consists of the single large plastic-coated aluminium foot casting only. If your original pivot pin is bent, damaged, or lost, you must purchase a matching Manutec 65mm pivot pin separately.
Q: How do I know if my trailer uses an ALQR system rather than another model?
A: Manutec ALQR legs feature a signature quick-release mechanism handle that allows the stabiliser arm to drop or swing down swiftly into multiple locking points. Measure your existing damaged foot; if it closely approximates 150 mm x 80 mm, this is the correct OEM replacement.
Australian Trailer Safety & Component Standards
Caravan protrusions, dynamic structural chassis loadings, and stability stabilisers must comply with public road safety frameworks throughout Australia. Read through national vehicle design regulations to maintain on-road compliance:
-
- Review dimension and safety rules via the federal Australian Vehicle Standards Bulletin 1 (VSB1).
There are no FAQs for this product.
