Caravan Stabiliser Leg and Corner Steady
Price
Price range: $88.15 through $121.50 Inc.GST
Shipping
Caravan Quick Release Stabiliser Legs | Manutec (Sold Individually)
Caravan stabiliser drop legs provide maximum stability to your caravan. These tools keep the vehicle sturdy, even when there is movement inside. They also ensure the trailer resists the wind and prevents rocking.
Manutec caravan stabilizer legs are known for their heavy-duty, zinc-coated steel construction, designed to provide a “rock-solid” foundation for caravans and trailers. These legs typically feature a quick-release mechanism and a large steel foot for enhanced stability on various terrains.
Technical Specifications

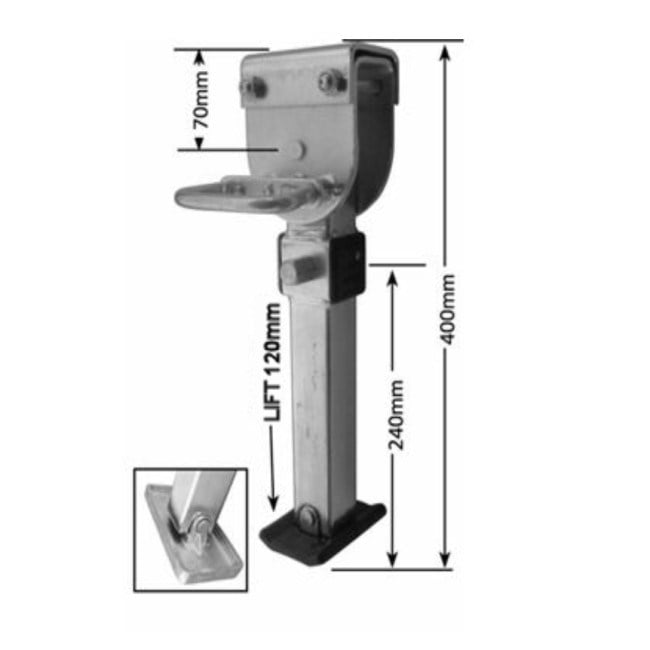

- 400mm Drop-Down Leg
- Adjustable Leg Type: Quick Release
- Large aluminum foot
- Height: 400mm – 520mm
- Coating: Zinc
- Lift: 120mm
- Release: Pull Handle, Hex Head Handle
460mm Drop Leg
- 460mm Drop-Down Leg
- Adjustable Leg: Quick Release
- Large aluminum foot
- Height: 460mm – 620mm
- Coating: Zinc
- Lift: 180mm
- Release: Pull Handle, Hex Head Handle
520mm Drop Leg
- 520mm Drop-Down Leg
- Adjustable Leg: Quick Release
- Large aluminum foot
- Height: 520mm – 660mm
- Coating: Zinc
- Lift: 140mm
- Release: Pull Handle, Hex Head Handle
600mm Drop Leg
- 600mm Drop Down Leg
- Adjustable Leg: Quick Release
- Large aluminium foot
- Height: 600mm – 780mm
- Coating: Zinc
- Lift: 180mm
- Release: Pull Handle, Hex Head Handle
Manutec Advisory Warning
- When using a power drill to adjust legs or stands, set it to the lowest torque and speed settings. Failure to do so may damage the internal components. Strictly no impact drills!
Sizes Available are
- 400mm Closed
- 460mm Closed
- 520mm Closed
- 600mm Closed
Manutec manufactures a wide range of quality stabiliser legs and spare parts. Caravan stabiliser legs provide a flat, load-bearing surface on soft ground, ensuring a horizontal travelling position when detached from the vehicle.
Make your adventure caravan trips complete with drop-down stabiliser legs. These are different from jacks in that they do not lift the vehicle off its wheels, but (like jacks) only provide stability when the caravan is not in motion.
To ensure stability, secure the drop-down leg at a suitable angle and lock it. The drop-down leg has a winding mechanism, maintained by internal gears. Consequently, your caravan is equipped with the necessary support to prevent rocking.
Pro Tip: Mount the device carefully; the drop-down leg’s winding mechanism can damage the caravan.
Swing Down Stabiliser Drop Leg
Couplemate Trailer Parts sells only the best-quality drop-down adjustable legs and caravan spare parts throughout Australia.
You are welcome to either pick up or take advantage of our low freight rates: express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.
We also ship products to New Zealand via Australia Post Air Express.
Caravan Stabiliser Leg and Corner Steady Guide
Ensure a rock-solid, stable caravan layout and protect your chassis from structural damage by following these essential operation guidelines.
- Level the caravan first: Use drive-on ramps and the jockey wheel to completely level the caravan before winding down the steadies.
- Use support pads: Place heavy-duty plastic or timber pads under the footplates on soft sand, grass, or mud to prevent sinking.
- Lubricate the worm drive: Apply a dry silicone lubricant spray or a light layer of grease to the threaded lead screw every six months.
- Secure before transit: Verify that all four corner steadies are fully wound up and securely locked into their travel positions before moving.
- Distribute weight evenly: Wind all legs down firmly to the ground so the stabilizer load is evenly shared across all four corners.
- Don’t lift the caravan: Never use corner steadies as jacks to lift wheels off the ground for tyre changes; they are for stabilization only.
- Don’t over-torque with drills: Avoid using high-torque impact drivers on the hex nut, as this can strip the gears or bend the internal screw thread.
- Don’t overload the chassis: Avoid winding the legs so tight that you twist the caravan chassis or cause interior doors and cabinets to bind.
- Don’t leave legs unlatched: Never rely solely on the internal screw tension to hold a drop-down-style leg vertically without dropping its locking pin.
- Don’t ignore dirt buildup: Avoid letting thick road grime, saltwater, or red dust bake onto the moving arm linkages and pivot joints.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 15 × 15 × 60 cm |
| Brand | Manutec |
| Coating | Zinc |
| Closed Height | 400mm, 460mm, 520mm, 600mm |
| Handle | Pull and Release |
| Lift | 120mm |
| Nut Type | 19mm Hex |
