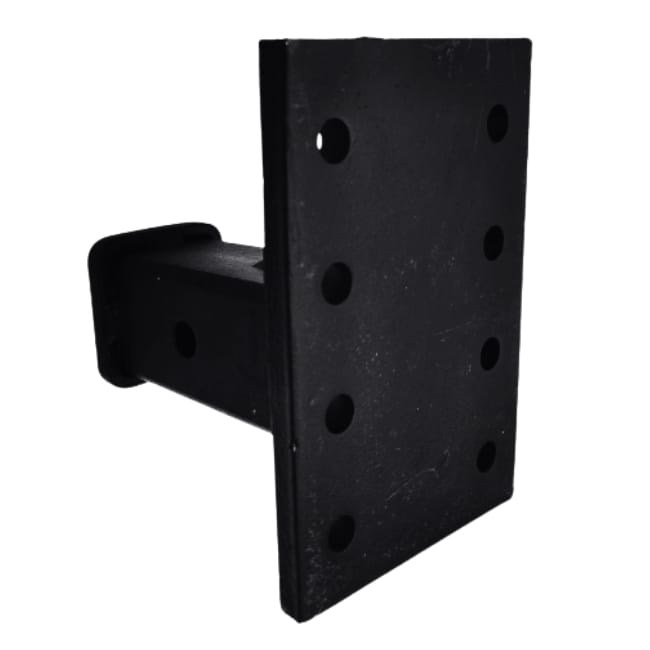

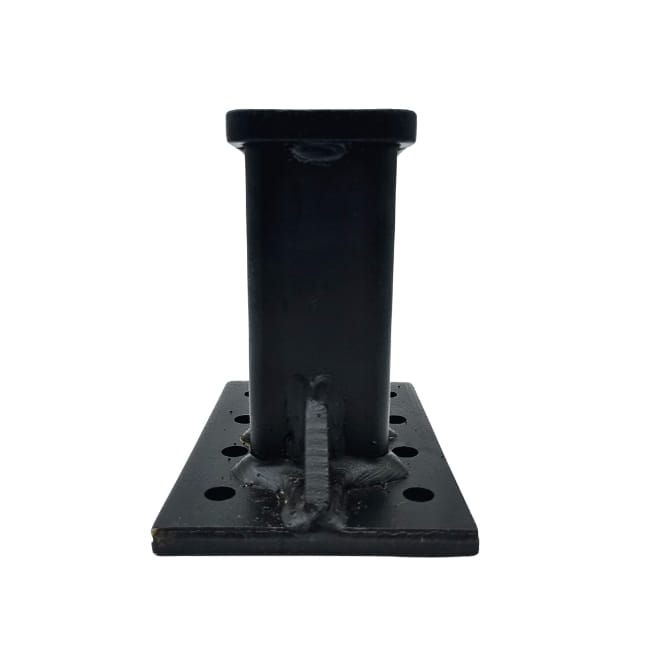

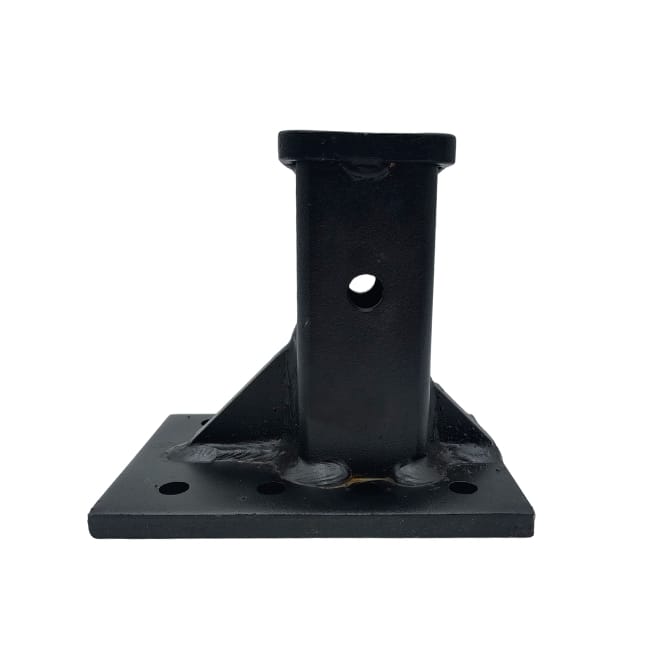

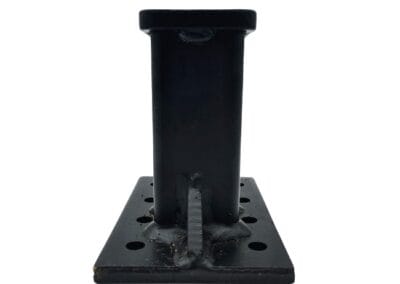

Truck Pintle Tow Bar Receiver Adaptor 4500kg

Part No: CM513 Category:
Part No: CM513 Category:

$233.00

What are the key benefits?

Allows trucks to use standard tow bar receiver attachments.
4500kg rating so you can tow 50mm & 70mm ball couplings.
✓ Can be safely used standard or inverted.

Manufactured by Wallage Forge.

Frequently Bought Together

Pintle Hook Grade 8 Bolt Kit

Stainless Tow Bar Anti-Rattle Shim Kit + Installation Video

Why should you install Anti-Rattle Hitch Shims?

Minimises Tow Bar Rattle
Quick and Easy Installation
Made of Stainless Steel

Designed and manufactured by Couplemate™ Australia.

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

Truck Tow Bar Adaptor | Suits 4500kg

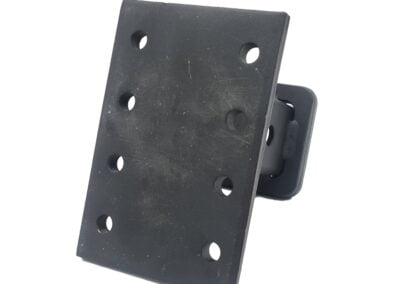

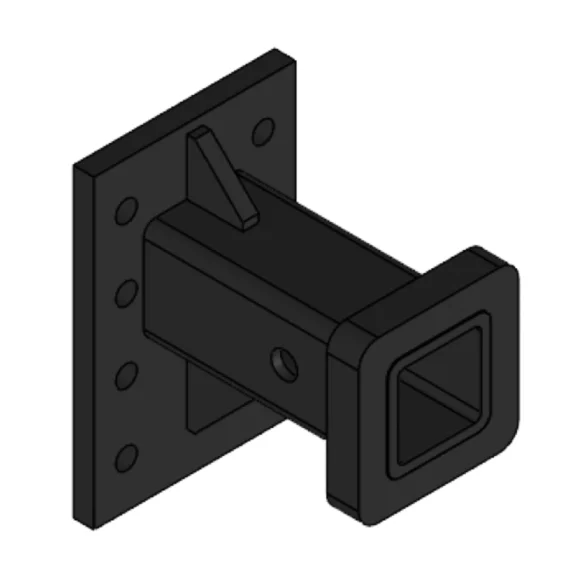

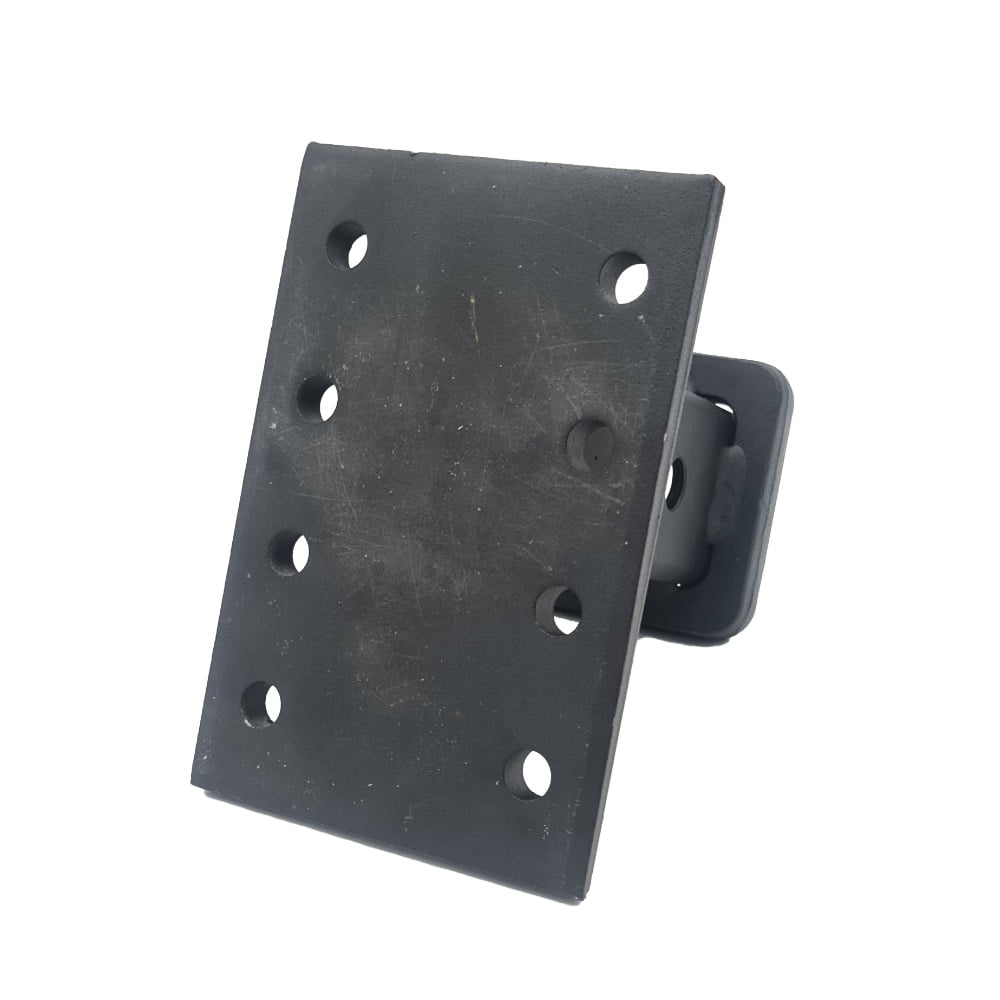

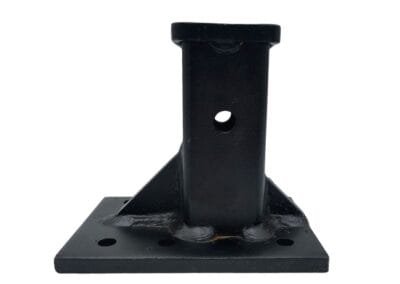

The Truck Tow Bar Adaptor allows trucks to use standard Australian hitch receivers.

This product is an excellent solution if your truck needs to tow standard trailers with 50mm or 70mm ball couplings (or the Cruisemaster DO35). After bolting on the flat plate to your truck’s tow bar, you can insert 50mm hitches into the receiver. This is an easy bolt-on solution, meaning you can swap and change without wasting time.

When attaching this product, you must bolt at least four holes with Grade 8 Bolts onto your tow vehicle.

With the CM513 Truck Tow Bar Adaptor, your truck will be able to use:

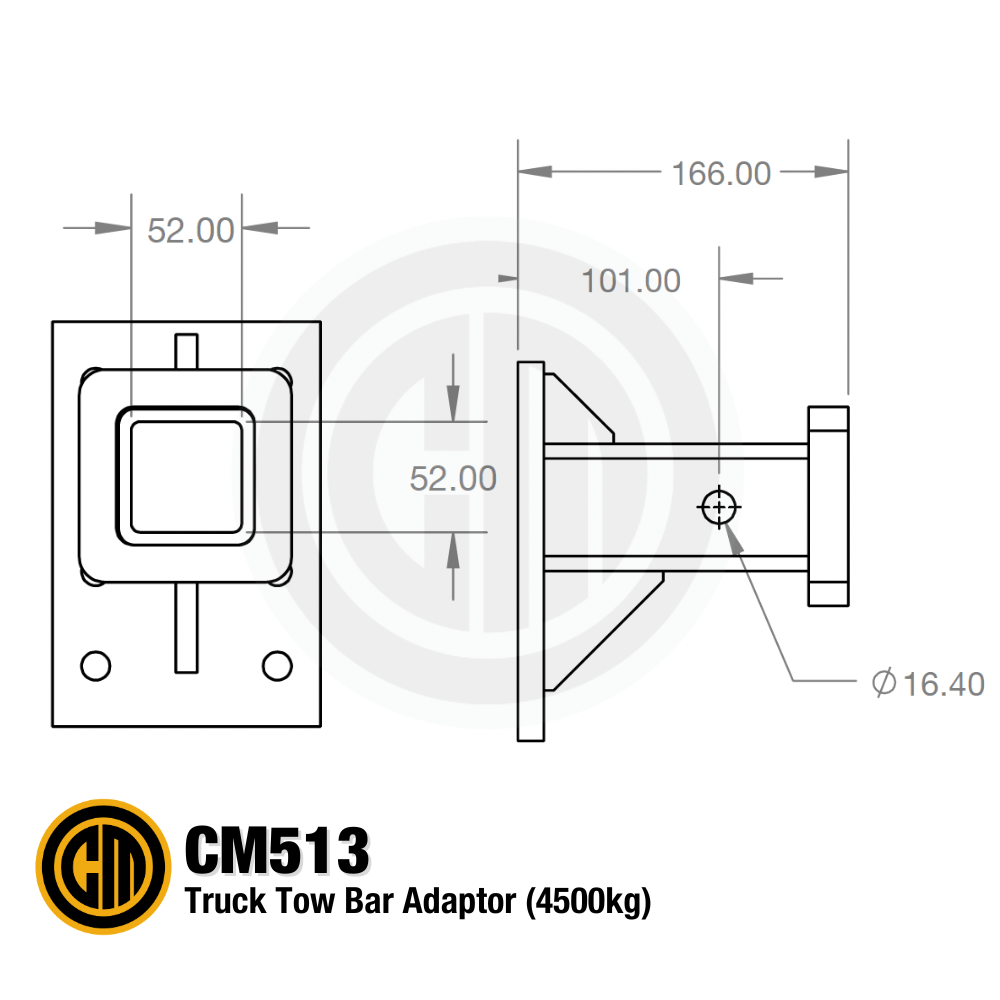

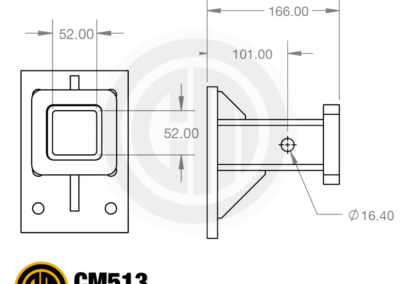

Product Specifications

  • Materials: A500 Receiver, Hot Rolled Plate
  • Coating: Black

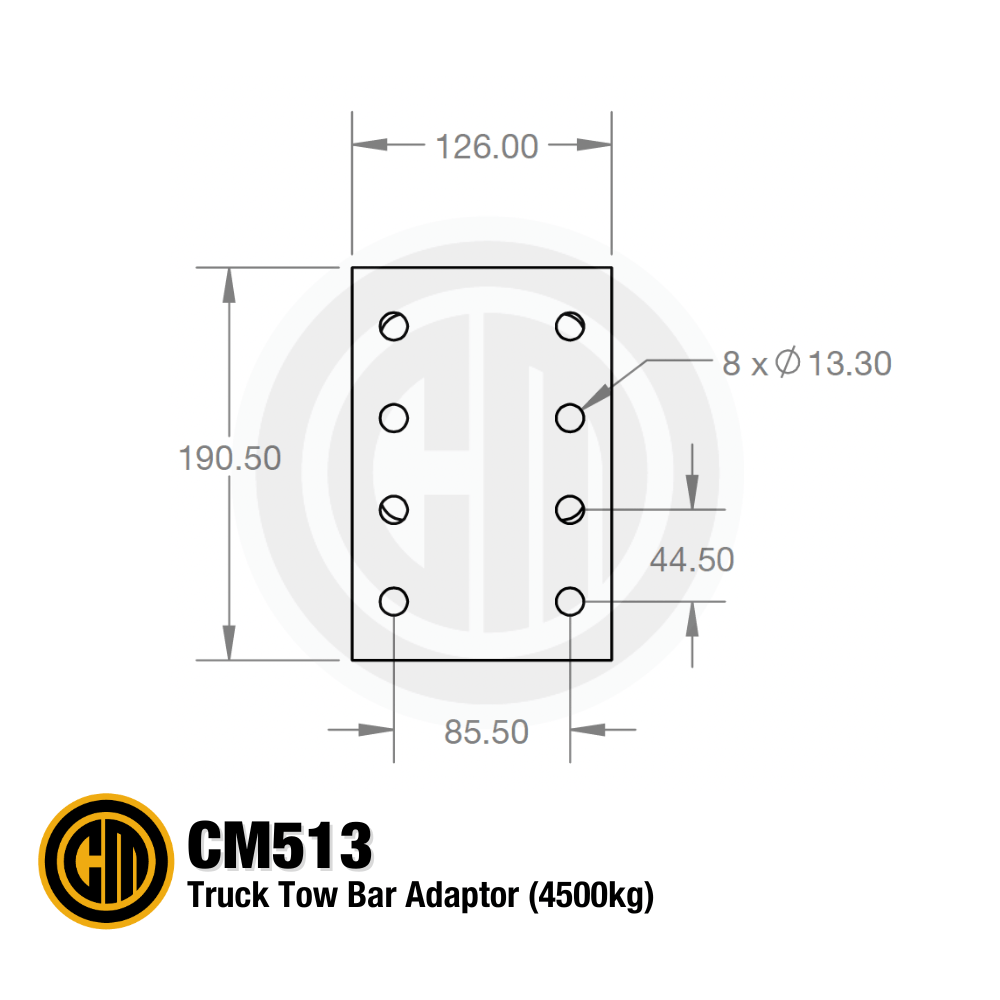

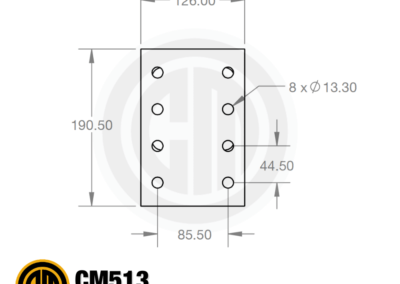

  • Hole Spacings: 85mm x 45mm
  • Mounting Hole: 1/2″ (Grade 8 Bolt Required – Sold Separately)
  • Bar Size: 50mm x 50mm
  • Towing Capacity: 4500kg ATM (Inverted or Standard)

Additional information

Weight5 kg
Dimensions20 × 20 × 20 cm
SKU

CM513

Brand

Wallace Force

Weight Rating

4500kg (4.5t)

Plate Thickness

13mm

Bolt Spacings

85mm x 45mm

Required Products

4 x Grade 8 1/2" Bolts (Sold Seperately)
