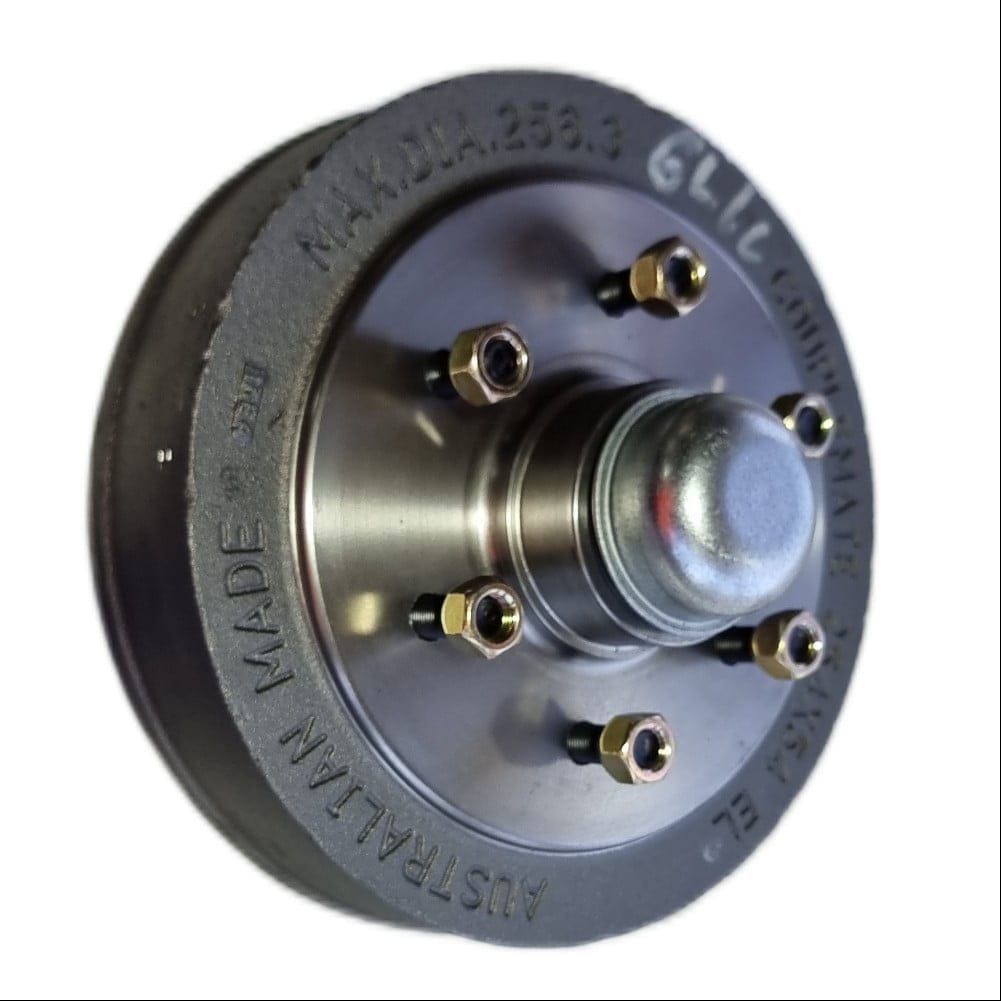

10-inch Parallel Brake Drum with Greased Bearings

SKU: N/A Category: Brake Drums Tags: Australian Made, Couplemate™ Core, Parallel Equipment Brand: Couplemate

Price

$167.50 Inc.GST

Stud Pattern (PCD)

Clear

10-inch parallel brake drum with greased bearings
Suits 10-inch electric, mechanical and hydraulic backing plates
Grey iron construction with 256.3 mm maximum diameter
54 mm width with 1/2-inch UNF stud thread
Designed for caravan, trailer and camper applications

Shipping

Select delivery location

10-Inch Parallel Brake Drum with Bearings | Electric Drum for Caravans, Trailers and Campers

When you’re out in the Australian outback, the last thing anyone wants is a brake failure due to low-quality drums.

Quality brake drums are crucial for caravans because they play a major role in stopping them safely and efficiently. Due to the added weight and momentum, the brakes are under considerable stress when towing a caravan. The brake drums must withstand high temperatures, extreme pressure, and constant wear and tear.

These brake drums are most commonly used for 10″ electric backing plates but also suit 10″ mechanical backing plates and 10″ hydraulic backing plates.

If your desired drum is not listed, call us for custom work.

Product Specifications

Materials: Grey Iron
Max. Diameter: 256.3mm
Width: 54mm
Stud Thread: 1/2-inch UNF
Suits Bearings:
- Parallel – 68149/68149

10-inch brake drums are often marked with 254 x 54 EL. N.B. Drums are not supplied with nuts.

Other Available Parallel Drums

What makes Low-Quality Drums Dangerous?

A few years ago, Couplemate™ was worried about the increasing loss of quality and complaints from imported drums. We decided to make a better 10-inch drum brake to ensure electric brake drums were first-class and we could own a quality product.

Low-quality or worn brake drums can cause a range of problems, including:

Reduced stopping power
Increased stopping distances
Excessive heat buildup
Complete brake failure

This can be extremely dangerous, particularly when driving on steep or winding roads. This can result in costly repairs and replacements and potential safety hazards.

What makes AL-KO 10-inch Electric Brake Drums Superior?

High-quality brake drums are specifically designed for caravans and other towing applications. You can ensure your braking system is reliable and effective.

Quality brake drums will provide consistent stopping power, reduce the risk of overheating, and ultimately help to keep you and your passengers safe while on the road.

Stud Pattern Options

If you’re unsure what stud pattern you have, read our quick guide: What is my Wheel P.C.D.?

Ford: 114.3mm PCD (1/2″)
5S Landcruiser: 150.0mm PCD (9/16″) (M14)
Mercedes – 130mm PCD (M14)
F100: 139.7mm PCD (1/2″)
Defender: 165.10mm (5/8″) (M16)
Land Rover: 165.10mm (9/16″)

6S Land Cruiser: 139.7mm PCD (1/2″)
Nissan Navara: 114.3mm PCD (1/2″)

Dodge Ram: 165.10mm (M14)

Frequently Asked Questions: 10-Inch Parallel Brake Drum

What does “Parallel” mean for this brake drum?
It means the inner and outer bearings are the exact same size (usually 68149/11 cones). This design distributes weight evenly and is common on 1600kg axles.
Are the bearings pre-packed with grease?
Yes, this drum comes with **high-temp trailer wheel bearing grease** pre-installed. It is ready to mount straight out of the box.
How do I know if this fits my trailer?
Measure your existing drum diameter (10 inches) and verify your axle has parallel spindles. Check your wheel stud pattern (e.g., 5-stud Ford or 6-stud Land Cruiser) before buying.

Do’s and Don’ts for Installation & Maintenance

👍 Do’s	❌ Don’ts
Check the rear seal: Ensure the grease seal is seated firmly and flush before sliding the drum onto the spindle. Use a torque wrench: Tighten your wheel nuts in a star pattern to the manufacturer’s specified torque. Match your brakes: Pair this drum with matching 10-inch electric or hydraulic brake shoes.	Don’t mix grease types: If you top up the grease later, use a compatible lithium-complex base to prevent breakdown. Don’t drop the drum: Impact can chip the machined braking surface or crack the pre-fitted bearing cups. Don’t over-tighten the castle nut: Tighten until snug to seat the bearings, then back it off slightly so the drum spins freely without play.

Additional information

Weight	10 kg
Dimensions	30 × 30 × 10 cm
Bearing Profile	Parallel (PLL)
Brand	AL-KO
Drum Size	10-Inch – Inner Dia
Hub Boss Diameter	90mm
Hub Cap	63mm
Materials	Grey Iron
Max. ATM	1600kg ATM
NSK Bearing #	68149/10
Stud Pattern (PCD)	Ford (5 x 114.3mm), 5 Stud Landcruiser (5 x 150mm), 6 Stud Landcruiser (6 x 139.7mm)
Stud Thread	1/2" UNF – 490300-ALKO
