45mm Square Galvanised U-Bolts

SKU: N/A Category: U-Bolts and Kits Tag: U-bolts Brand: BoltBiz

Price

Price range: $6.25 through $8.50 Inc.GST

U-Bolt Length

Clear

Shipping

Select delivery location

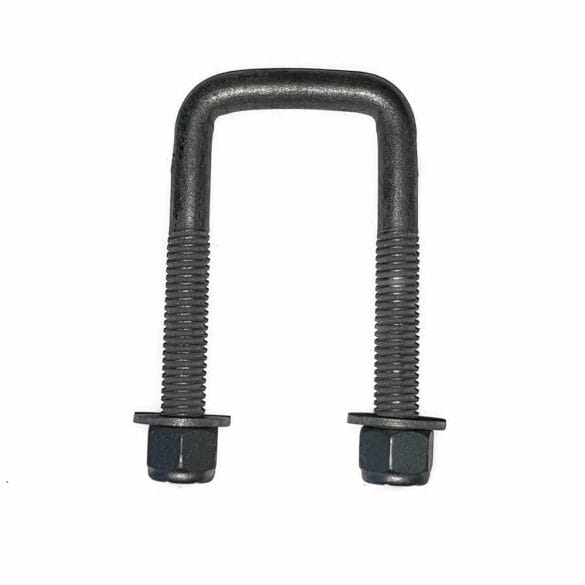

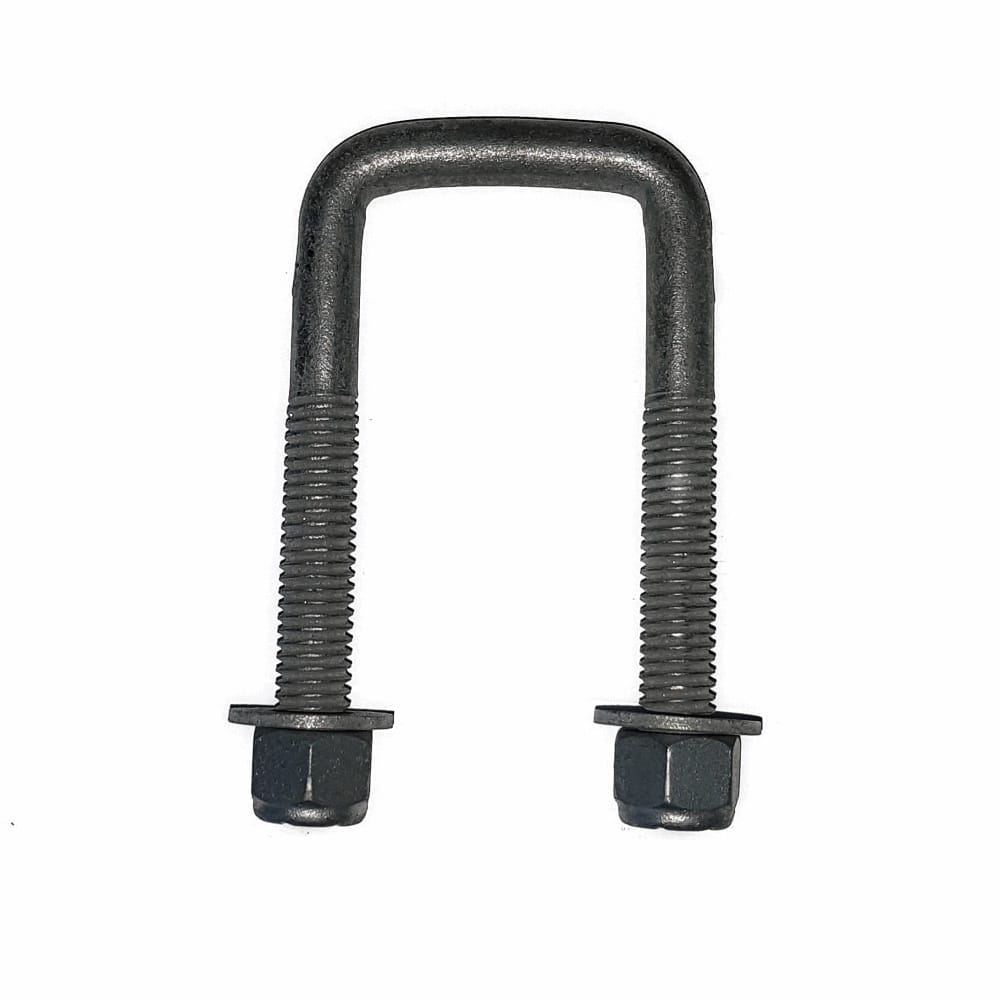

45mm Square Galvanised U-Bolts

45mm square galvanised U-bolts, including galvanised nylocks and washers. Available lengths are 112mm, 125mm, 137mm, 150mm, 162mm, 175mm

Rolled threads with gal flat washer + gal Nylock. The thread length is 60mm.

Some of the longer U-bolt lengths are difficult to locate. Couplemate carries a good stock of these longer U-bolts because we know you need them quickly. At checkout, you can choose to send via Express Post.

How do I calculate the correct length?

Spring width plus
Axle Pad 8mm plus
Axle width plus
Nylock plus

Why should I check and retighten U-bolts?

First, retighten the U-bolts about 200 km after installation, as the steel tends to stretch slightly under load.

U-bolts generally fail due to hydrogen embrittlement during bending and galvanising. At Couplemate, a new process removes hydrogen embrittlement, producing ST-class U-bolts.

We stress-tested these U-bolts during manufacturing and in batch testing until failure.

W…………hat is the rating for U-bolts?

Destruction loads exceed 17,000kg for 1/2-inch galvanised U-bolts.

Our U-bolts are derated to 375kg each, or 1500kg per set of 4 U-bolts, sufficient for a single axle.

The max rating of 60mm Round axles is 3000kg with a U-bolt rating of 1500kg.

Available Lengths: 45mm Square Galvanised U-bolts

100mm
115mm
125mm
140mm
150mm
165mm
175mm

Understanding Caravan and Trailer U-Bolts

Galvanised U-Bolt 45mm Square Clamp Kits are listed below

Frequently Asked Questions & Usage Guide

What are the internal dimensions? These U-bolts feature a 45mm inside width, designed for a flush, full-contact fit against 45mm square trailer axles or RHS/SHS hollow sections.
Are they suitable for marine use? Yes, the electro-galvanised.. f.inish offers excellent corrosion resistance, making them ideal for boat trailers and saltwater environments.
Why do they include Nyloc nuts? Nyloc nuts feature a nylon insert that resists vibration, preventing the hardware from backing off or loosening during transit.
What is the weight rating? When used in a standard set of 4 on a single axle, they provide a combined rated capacity of up to 1500kg (375kg per individual U-bolt).

✔️ DO	❌ DON’T
Do measure carefully: Verify your axle profile from the inside of the legs before ordering to ensure a tight 45mm square fit.	Don’t use on round axles: Never mount square U-bolts to round trailer axles, as this creates dangerous gaps and localised stress points.
Do use flat washers: Always pair the U-bolts with the included flat washers against the fish plates for an even, secure bind.	Don’t reuse Nyloc nuts: Do not reuse old Nylocs if you disassemble the suspension, as the nylon locking mechanism wears down after one use.
Do routine checks: Re-tighten and check the torque on your Nyloc nuts every 300km of travel for optimal safety.	Don’t over-torque: Avoid using high-impact air guns that can strip the galvanised threads or crush the mounting plates.

Additional information

Weight	0.5 kg
Dimensions	10 × 6 × 2 cm
U-Bolt Width	45mm
U-Bolt Length	100mm, 115mm, 125mm, 140mm, 150mm, 165mm, 175mm
Thread Length	45mm
Nut Type	Nylock
Coating	Galvanised
Torque	1/2-inch – 60Nm
