5 Stud ElectroGal Slimline Hub

SKU: N/A Category: Hubs - Unbraked Tags: Galvanised Hubs, marine parts Brand: Couplemate

5 Stud Landcruiser Electrogal Slimline Hub

Price

Price range: $39.50 through $112.98 Inc.GST

Stud Pattern

Clear

Shipping

Select delivery location

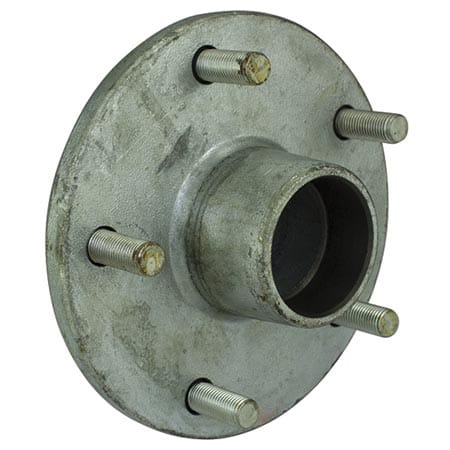

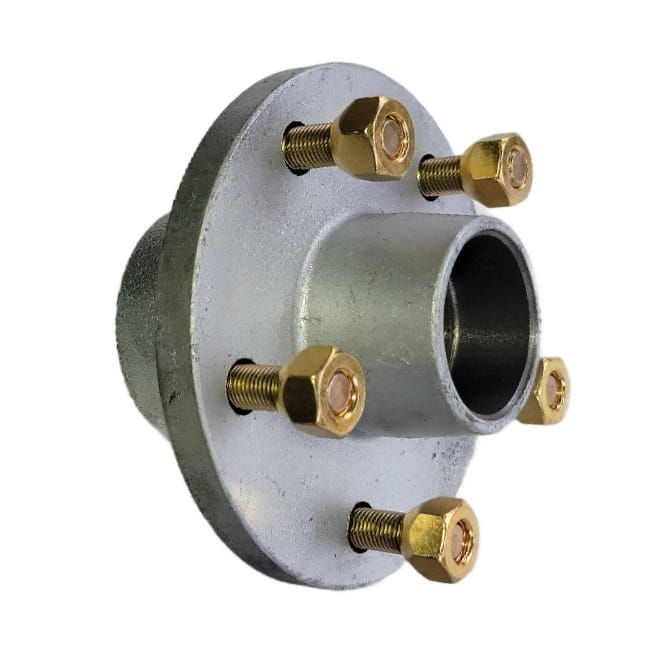

5 Stud ElectroGal Slimline Hub

These hubs are designed for marine trailer applications where a corrosion resistant hub coating is required. The ElectroGal finish provides a corrosion resistant surface suitable for trailer environments, the slimline hub design is available in a range of common 5 stud wheel patterns.

With multiple hub diameters, PCD configurations and stud sizes available, these hubs provide options for a variety of trailer applications.

ElectroGal Hub for Marine Trailer Applications

Marine trailers are regularly exposed to demanding operating environments, making the choice of hub and protective coating an important consideration. The ElectroGal coating on these slimline hubs provides a corrosion resistant finish for marine trailer applications.

Available Stud Patterns

The correct hub configuration depends on the vehicle or wheel application and the existing trailer components. Before ordering, check the required hub diameter, PCD and wheel stud size to ensure the hub matches your application.

Suits	Diameter	PCD	Studs
Ford	150mm	5 x 114.3mm	1/2″
Toyota Land Cruiser	190mm	5 x 150mm	9/16″
Holden HT	140mm	5 x 107.95mm	7/16″
Holden HT	150mm	5 x 107.95mm	7/16″
Holden HQ	150mm	5 x 120.65mm	7/16″
Holden Commodore	150mm	5 x 120mm	7/16″

Hub Specifications

Specification	Details
Coating	ElectroGal
Inner Bearing Cup	59.10mm
Outer Bearing Cup	45.20mm
Seal	59.10mm
Dust Cap	45mm
Supplied With	Wheel nuts

This hub is compatible with the following bearing kits: 700kg Holden LM Bearing Kit, 1000kg Composite Bearing Kit, 1450kg Ford Slimline Bearing Kit

Maintenance & Bearing Advice

Regular inspection and maintenance of trailer wheel bearings is important to help maintain smooth hub operation and identify wear before it becomes a problem. When servicing the hub, inspect the bearings and bearing cups for signs of wear, damage, scoring, pitting or discolouration and replace damaged components as required.

We recommend NSK Japanese Bearings when replacing the bearings in your trailer hubs. Using quality replacement bearings and the correct grease seal helps maintain the bearing assembly and support reliable trailer operation.Always check the bearing numbers and hub configuration before ordering replacement components to ensure the correct parts are selected.

How to install an unbraked hub

Installing an unbraked trailer hub correctly is important to ensure the bearings, seal and hub assembly are correctly fitted. For a step-by-step guide, watch our video explaining how to install an unbraked hub:

Related Products:

6 Stud Electrogal Slimline Hub

There are no FAQs for this product.

Additional information

Weight	4 kg
Dimensions	15 × 15 × 10 cm
Stud Pattern	5S Landcruiser (5 x 150mm), Ford (5 x 114.30mm), Holden Commodore (5 x 120mm), Holden HQ (5 x 120.65mm), Holden HT (5 x 107.95mm) – 140mm, Holden HT (5 x 107.95mm) – 150mm
Coating	Galvanised
