Axle | 50mm Square | Unbraked

SKU: N/A Categories: Axles - Unbraked, Axles Tags: Australian Made, Couplemate™ Core Brand: Couplemate

$\Mm Square X 5 Stud Land Cruiser Lazy Unbraked Axle$

Price

Price range: $525.00 through $559.20 Inc.GST

Stud Pattern (PCD)

Clear

Axle | 50mm Square | Unbraked

Face-to-Face Length.(Required)

Enter the Face-to-Face length of your axle. (mm).

Please enter a number from 1000 to 2400.

Shipping

Select delivery location

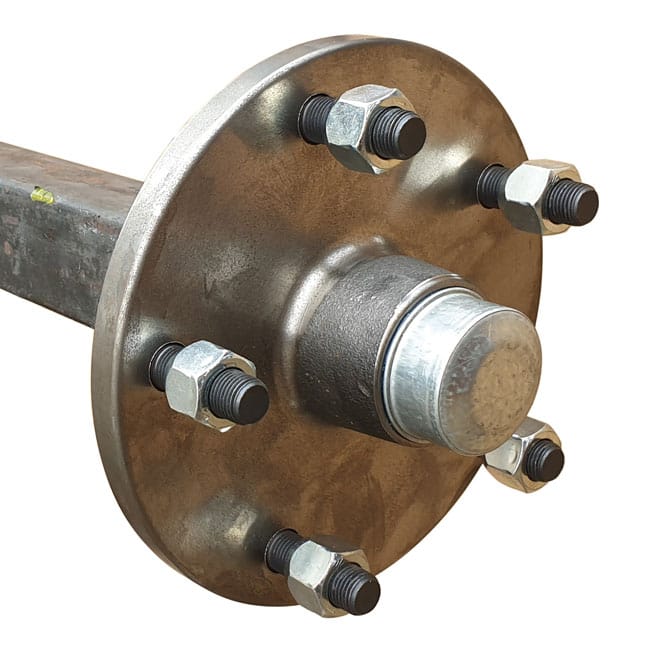

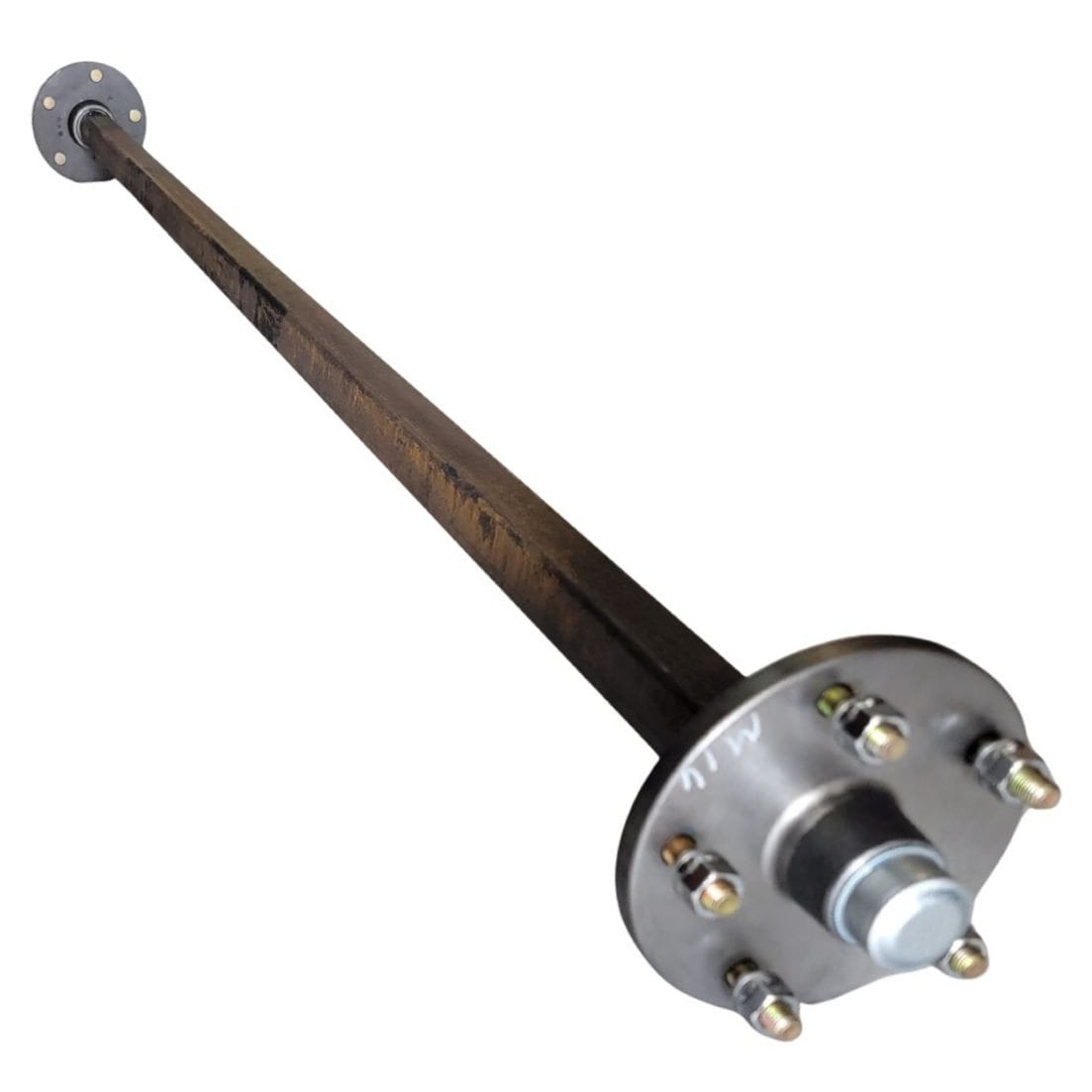

50mm Square Axle – Unbraked Lazy (Slimline Bearings)

Rating: 1450kg
Application: Heavy-duty single-axle trailers, boat trailers, and utility builds.

Product Overview

Engineered for durability and high load capacity, the 50mm square profile (solid beam) is the industry standard for unbraked trailer setups requiring a 1450kg rating. Featuring precision-machined Slimline (L68149/L12749) stubs, it provides a smooth, reliable tow for medium-to-heavy frames without the complexity of a braking system.

Key Features

High-Grade Steel: Forged from premium solid square steel to prevent flexing under maximum load.
Slimline Configuration: Uses the popular Slimline bearing set, offering a higher load rating than standard LM/Holden alternatives.
Unbraked Simplicity: Perfect for trailers with a GVM under 750kg, or as a secondary axle in specific multi-configurations.
Corrosion Resistant: Available in natural steel (for welding) or galvanised finishes (ideal for marine environments).

Technical Specifications

Size: 50mm x 50mm Solid Square
Load Rating: 1450kg (Single Axle)
Bearing Type: Slimline (Inner: L68149/11 | Outer: L12749/11)
Hub Pattern: [Insert options, e.g., Ford 5-Stud / HT Holden]
Standard Lengths: Available in common track widths [Link to Size Guide] or Custom Cut.

What’s Included?

1x 50mm Square Solid Axle
2x Unbraked Hubs (Fitted with Cups)
2x Bearing Sets (Bearings, Seals, and Dust Caps)
2x Castle Nuts & Split Pins

There are no FAQs for this product.

Additional information

Weight	80 kg
Dimensions	40 × 240 × 40 cm
Stud Pattern (PCD)	5 Stud Landcruiser (5 x 150mm), 6 Stud Landcruiser (6 x 139.7mm), Ford (5 x 114.3mm), Holden HQ (5 x 120.65mm), Holden HT (5 x 107.95mm), Jeep (5 x 127mm)
