50mm Square Galvanised U-Bolts

SKU: N/A Category: U-Bolts and Kits Tag: U-bolts Brand: BoltBiz

Price

Price range: $6.50 through $15.00 Inc.GST

U-Bolt Length

Clear

Shipping

Select delivery location

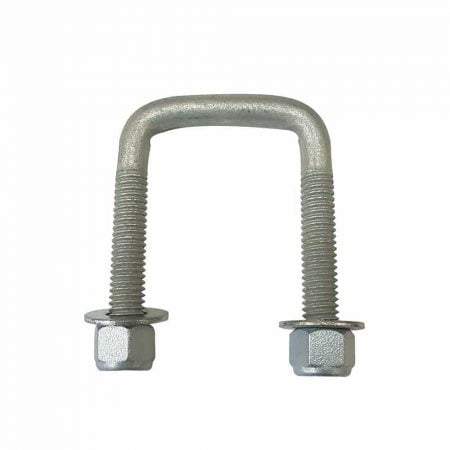

Caravan U-Bolt: 50mm Square – With Gal Nylocks and Gal Washers

The 50mm square U-bolt is a sturdy and reliable option for securing jockey wheels to caravans and boat trailers.

Made from galvanised steel, it resists rust and corrosion.

The caravan U-bolt: 50mm square, 75mm long, features galvanised nylocks and washers, ensuring a secure, tight fit. Its square shape provides added stability and strength, making it a popular choice for heavy-duty applications.

We carry a good stock of Premium 50mm Square U-Bolts for immediate Express Dispatch.

U-bolts, washers, and nylocks are galvanised to resist corrosion and are suitable for marine environments.

Further, the 50mm square galvanised Australian U-bolt has rolled threads instead of cut threads. Additionally,

the thread length is 60mm.
The thread size is 1/2 inch BSW.

Purchase U-Bolt kits with clamps here.

50mm Square U-Bolt Lengths

75mm x 50mm
100mm x 50mm
115mm x 50mm
125mm x 50mm
137mm x 50mm
150mm x 50mm
165mm x 50mm
175mm x 50mm
200mm x 50mm
250mm x 50mm

Four elements uniquely define any U-Bolt:

Material type (for example, bright zinc-plated mild steel or galvanised)
Thread dimensions (for standard 1/2 inch )
Inside diameter (for example, 50 mm – the distance between the legs)
Inside height (for example, 125 mm)

Mild steel stretches under load. You must re-tighten the U-bolts about 200 km after installation.

Loose U-bolts cause accidents

Vibration fatigue can loosen U-bolts if not re-tightened after 300 km.

Excellent article on vibration fatigue here.

How U-Bolt Sizes Are Measured

Measure from the inside of the U-bolt or the width of the tube.

For example, the 250mm U-Bolt Kit is 250mm when measured from the thread’s tip to the top’s underside.

The U-Bolt kit comprises

1 x galvanised U-Bolt
2 x galvanised Washers
2 x galvanised Nylocks

Mild steel stretches under load. You must re-tighten the U-bolts about 200 km after installation.

Specifications: Caravan U-Bolt: 50mm square

The thread length is 50mm.
The thread size is 1/2 inch BSW.

Also, review U-Bolt kits with clamps in our trailer parts shop

Galvanised U-Bolt Square Clamp Kits are listed below

Boat Trailer 50mm U-Bolts FAQ

Q: How do I correctly measure a 50mm U-bolt to ensure a proper fit?

To confirm you are buying the correct size, take your measurements from the inside of the hardware:

Internal Width: Measure the inside distance between the two legs; a 50mm U-bolt measures exactly 50mm inside to fit cleanly over a 50mm axle or chassis rail.
Internal Length: Measure from the inside top curve down to the tip of the threaded legs.
Thread Clearance: Ensure the length leaves roughly 10mm to 15mm of visible thread past the nut once fully torqued.

Q: Why is a galvanised or Dacromet finish necessary for boat trailers?

Marine environments subject your trailer to harsh saltwater conditions, requiring specialised protection:

Corrosion Resistance: Hot-dip galvanised and Dacromet coatings provide a thick barrier that actively resists rust.
Structural Longevity: Prevents premature weakening of the metal caused by oxidation.
Safety: Eliminates hidden rust failure points, securing your heavy watercraft during highway transit.

Q: What is the load rating for standard 50mm boat trailer U-bolts?

Load ratings can vary by manufacturer, but heavy-duty 1/2-inch rod variations typically follow these standards:

Individual Capacity: Commonly rated at roughly 375kg per individual U-bolt.
Axle Set Capacity: A complete setup of 4 U-bolts on a single axle distributes a total rating of up to 1500kg.
Tensile Steel Strength: High-quality kits use 1045-grade tensile steel that can handle high structural stress.

Q: Should I use Nyloc nuts or standard nuts with spring washers?

Both methods are widely used on Australian trailers to combat road vibration, offering unique advantages:

Nyloc Nuts: Feature an integrated nylon collar that locks the thread tightly without needing extra washers.
Spring Washers: Combine flat washers with a split spring washer to maintain tension against a standard nut.
Best Practice: Always hand-tighten your nuts evenly across the plates; avoid using air impact wrenches (rattle guns), which can strip or warp the hardware.

Additional information

Weight	0.4 kg
Dimensions	10 × 10 × 2 cm
U-Bolt Length	75mm, 100mm, 115mm, 125mm, 140mm, 150mm, 165mm, 175mm, 200mm, 250mm
U-Bolt Width	50mm
Torque	1/2-inch – 60Nm
U-Bolt Application	Spring U-Bolts
Thread Length	45mm
Nut Type	Nylock
Coating	Galvanised
