50mm x 2.25t Stainless Hydraulic Drop Axles

SKU: N/A Categories: Axle - Drop and Overlay, Axles Brand: Couplemate

Price

$2,500.00 Inc.GST

Stud Pattern (PCD)

Drop

Clear

50mm x 2.25t Stainless Hydraulic Drop Axles

Face-to-Face Length.(Required)

Enter the Face-to-Face length of your axle. (mm).

Please enter a number from 1000 to 2400.

Shipping

Select delivery location

50mm x 3-inch and 4-inch Drop Hydraulic Axles

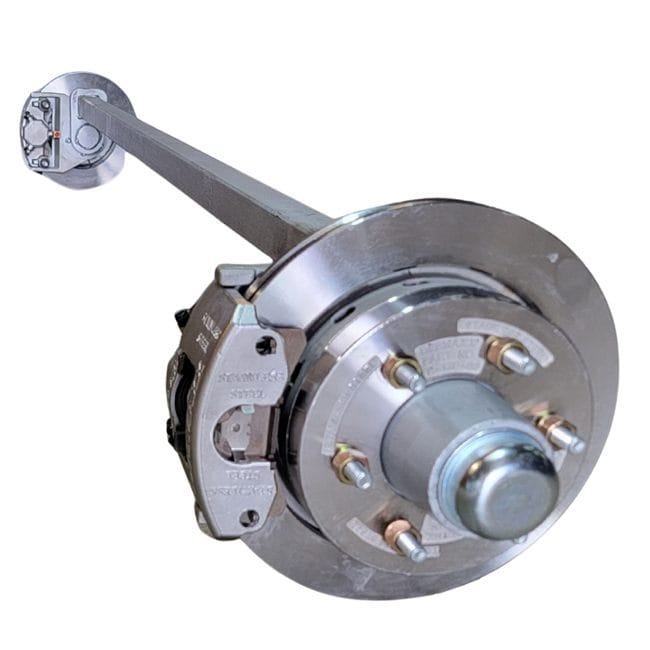

Stainless High-Performance Customer 50mm x 2.25t Drop Hydraulic-Axle units are custom-built and now available.

Upgrade your trailer’s towing dynamics, stability, and ramp efficiency.

Lowering your trailer’s ride height makes launching and retrieving your boat effortless at shallow boat ramps.

While traditional electric drum brakes remain common due to lower costs, many owners of larger (over 2 tonnes) or off-road caravans are upgrading to or specifically choosing EOH systems (such as the AL-KO iQ7 or Hydrastar) for the improved performance and safety.

Components

Galvanised Axle
316 Stainless Calipers
316 Stainless Disc Rotors
Galvanised 2.25t Hubs

Premium Technical Specifications

Axle Profiles Available: Heavy-duty, maximum-strength 50mm Square solid steel.
Drop Configurations: Choose between a 3-inch or 4-inch drop to perfectly optimise your trailer’s centre of gravity.
Weight Capacities: Custom-engineered options ranging to 4.5 Tonne (4.5t) ratings or 2.25t per axle.
Premium Finishes: Marine-grade Hot-Dipped Galvanised for salt-water protection or Natural Steel finish for standard road applications.

Superior Braking Performance

Reduced Stopping Distance: Hydraulic disc brakes offer significantly better stopping power, which is critical for heavy modern caravans.
No Brake Fade: Unlike drum brakes, which can overheat and lose effectiveness (“fade”) on long downhill, steep, or fast-paced trips, hydraulic discs dissipate heat much more effectively, providing consistent braking.
Smooth Operation: They provide a smoother, more direct “brake feel” compared to the harsh bite of electric drums.

Hydraulic-braked axles are becoming popular for caravans. This is due to the positive braking features of the hydraulic braking system.

Reliability and Durability (Especially Off-Road)

Self-Cleaning: While electric drums can trap mud, rocks, and debris inside, hydraulic discs are more open, allowing them to throw off dirt and water, making them ideal for rough terrain.
Water Resilience: They perform better after crossing rivers or in wet conditions compared to drum brakes.
Automatic Adjustment: Hydraulic discs are self-adjusting, eliminating the need to manually adjust the brakes as the pads wear down.

Reduced Maintenance

Fewer Moving Parts: With fewer internal moving parts in the wheel assembly, there is less that can go wrong compared to the complex mechanisms inside a drum brake.
Longer Life: Although they can be more expensive initially, the pads and rotors generally last longer than drum brake shoes

List of Components

Why Upgrade to Drop Axles?

Easier Launch & Retrieval: Your boat sits significantly lower in the water at boat ramps.
Enhanced Towing Stability: Lower centre of gravity reduces highway sway and body roll.
Complete System Renewal: Maximise durability by upgrading your leaf springs and bush kits during installation.

To finalise your catalogue listing, let me know if you would like me to create: A technical dimension guide for customer measurements

There are no FAQs for this product.

Additional information

Weight	99 kg
Dimensions	240 × 40 × 40 cm
Stud Pattern (PCD)	5 Stud Landcruiser (5 x 150mm), 5 Stud Landcruiser (5 x 150mm) – M14, 6 Stud Landcruiser (6 x 139.7mm)
Drop	3-inch, 4-inch
