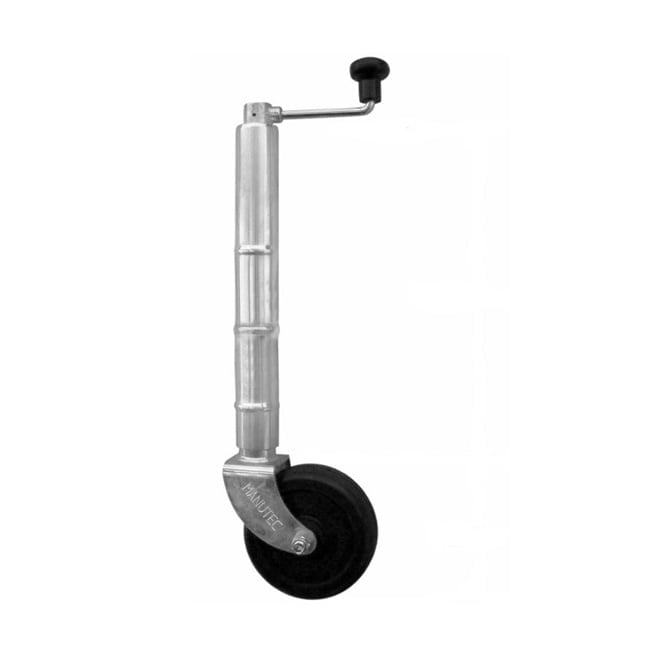

6-inch Bolt On Jockey Wheel
The 6-inch bolt-on jockey wheel offers your trailer the necessary support to keep it stable when not attached to the tow vehicle.
The Bolt-on jockey wheel is suitable for light trailers and is available with or without a bracket.
If you have problems with the 6-inch jockey wheel, consider some larger wheel versions.
There are four types of high-quality Jockey Wheels in the 6-inch rubber range
- Bolt-on with a Clamp
- Bolt-on No Clamp
- Extra Height with a Clamp
- Extra Height No Clamp
- U-Bolt Swivel to suit 3-inch and 4-inch trailer chassis rails.
Choosing the right jockey wheel is critical. It helps in more ways; it helps manoeuvre the caravan, and lower and raise the A-frame drawbar bar when required.
Although most caravans come with a jockey wheel, it’s advisable to invest in a good replacement that suits your weight rating better.
If your caravan has a load capacity of 500 kg or below, this is a perfect choice for you. It’s easy to use, adjust, remove, and manoeuvre. Made of solid rubber, it comes with a nylon insert and clamp bolts for secure attachment.
We recommend this product for trailers having 4-leaf spring suspensions or smaller.
Note: Wheels are rated for different loads and have two functions
- Lift the caravan off the tow ball.
- To move the caravan to its location. When moving your trailer, do not forget to lower the stem for maximum efficiency.

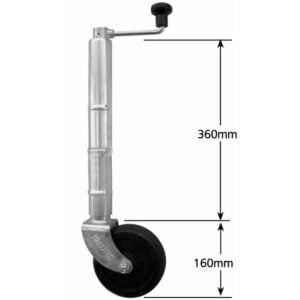

Technical Specifications
- Wheel diameter – 150mm x 50mm
- Weight – 5.2 kg
- Static Load Capacity – 500kg
- Dimensions – 60 cm x 15 cm x 15 cm
- Zinc Coating
- Lift 225mm
- Nylon Bore in the Wheel
- Solid tyre rubber Wheel
We offer a wide range of jockey wheels, each with a different load capacity.
More Jockey Wheels and Parts are available below
