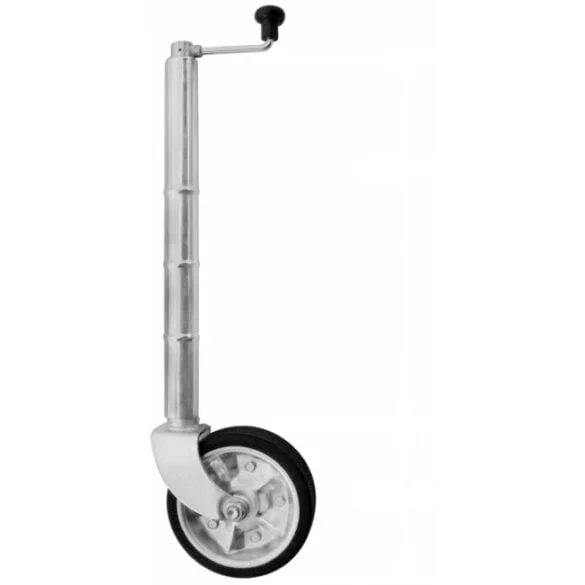

8-inch Extra Height Bolt On Jockey Wheel

The 8-inch Extra Height bolt-on jockey wheel offers your trailer the necessary support to keep it stable when not attached to the tow vehicle.

The Bolt-on jockey wheel is suitable for caravans and trailers and is available with or without a bracket.

There are four types of high-quality Jockey Wheels in the 8-inch rubber range.

  • Bolt-on with a Clamp
  • Bolt-on No Clamp
  • Extra Height with a Clamp
  • Extra Height No Clamp
  • U-Bolt Swivel to suit 3-inch and 4-inch trailer chassis rails.

Choosing the right jockey wheel is critical. It helps with other tasks, such as manoeuvring the caravan and lowering and raising the A-frame drawbar bar when required.

Although most caravans come with a jockey wheel, it’s advisable to invest in a suitable replacement that better suits your weight rating.

This is a perfect choice if your caravan’s load capacity is 700 kg or below. It’s easy to use, adjust, remove, and manoeuvre. Made of solid rubber, it comes with a nylon insert and clamp bolts for secure attachment.

We recommend this product for trailers having 4-leaf spring suspensions or smaller.

Note: Wheels are rated for different loads and have two functions

  • Lift the caravan off the tow ball.
  • To move the caravan to its location, remember to lower the stem for maximum efficiency when moving your trailer.

Technical Specifications

  • Wheel diameter – 200mm x 50mm
  • Weight – 8.2 kg
  • Static Load Capacity – 700kg
  • Dimensions – 52 cm x 15 cm x 15 cm
  • Zinc Coating
  • Max Height: 720mm
  • Lift 225mm
  • Steel Bearings in the Wheel
  • Solid tyre outer rubber Wheel

We offer various jockey wheels, each with a different load capacity.

More Jockey Wheels and Parts are available below

Additional information

Weight9 kg
Dimensions60 × 20 × 20 cm
