Galvanised 10-inch Disc Rotor incl Bearings

SKU: N/A Category: Disc Caliper and Parts Brand: Couplemate

Price

$110.00 Inc.GST

Stud Pattern (PCD)

Clear

Shipping

Select delivery location

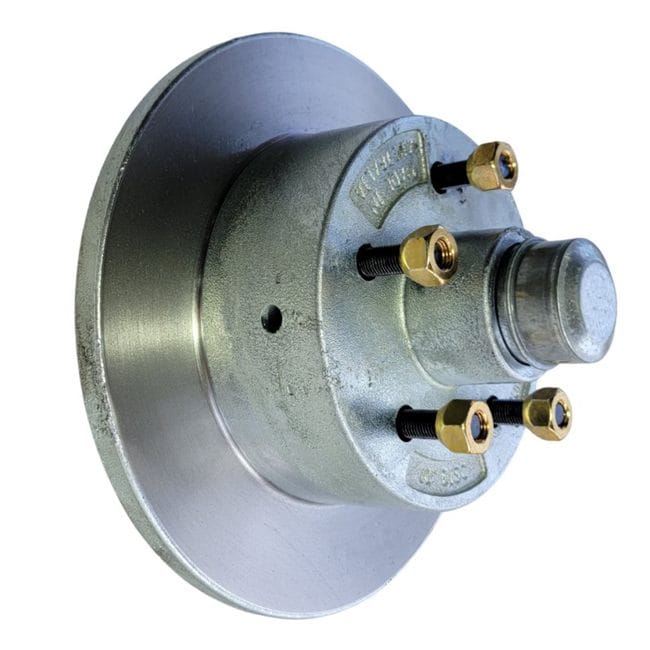

10-Inch Galvanised Disc Rotor incl SL Bearings

Ensure reliable stopping power in the toughest marine conditions with our 10-inch Disc Rotor Galvanised. Specifically engineered for boat trailers and caravans, this rotor features a high-grade galvanised finish that provides superior resistance to saltwater corrosion and rust.

Designed for versatility, this rotor is compatible with both LM (Holden) and SL (Slimline/Ford) bearing configurations. It features the popular 5-stud pattern, making it a standard replacement for a wide range of Australian trailer setups.

Bearings (Factory-greased)

Key Features

Marine-Grade Protection: The hot-dip galvanised or Dacromet coating, prevents rust, extending the lifespan of your braking system even with frequent saltwater submersion.
Precision Machining: The disc face is precision-machined for optimal brake pad contact, ensuring smooth, consistent braking and reduced “brake fade”.
Universal Bearing Fit: Compatible with standard 39mm–40mm axles (LM Bearings) and 45mm square axles (SL/Slimline Bearings).
Standard HT or Ford Pattern: Features the industry-standard 5/4.25-inch PCD with 7/16″ UNF studs (HT) or 5/4.5-inch PCD (Ford) with 1/2-inch studs for reliable wheel fitment.
Heat Management: The open disc design allows for efficient heat dissipation, outperforming traditional drum brakes during prolonged use or heavy towing.

Technical Specifications

Diameter: 254mm (10 inches)
Thickness: 16mm (5/8 inch)
Stud Pattern: HQ Holden (5 Stud) – Ford (5 Stud)
PCD (Pitch Circle Diameter): 4.25-inch (HT) – 4.5-inch (Ford)
Stud Distance: 71mm (centre-to-centre)
Bearings: Slimline SL: (Inner 68149/10, Outer 12749/10)

Why Choose Galvanised?

For boat trailer owners, Alibaba.com and local specialists like Couplemate recommend galvanised rotors to prevent the rapid oxidation that occurs on untreated steel. This simple upgrade reduces maintenance costs and ensures your trailer is always road-ready for the next launch.

Product FAQ & Care Instructions

Galvanised 10-inch Disc Rotor (incl. NSK Bearings)

What You SHOULD Do (Dos)

✓ Pack with marine grease: Always fill the hub cavity and pack the high-quality NSK bearings with marine-grade grease before installation to prevent water ingress.
✓ Check torque specifications: Tighten all wheel nuts and caliper bolts to the manufacturer’s recommended torque settings after the first 100km of use.
✓ Wash down after saltwater immersion: Thoroughly rinse the galvanised coating with fresh water after every boat ramp launch to maximise the lifespan of the rotor.
✓ Match with compatible brake pads: Use non-asbestos or ceramic brake pads designed specifically for coated trailer rotors to ensure optimal stopping power.

What You SHOULD NOT Do (Don’ts)

✗ Do not submerge when hot: Avoid backing your trailer into cold water immediately after driving; let the 10-inch rotors cool down first to prevent thermal cracking or warping.
✗ Do not machine the galvanised face: Never turn or machine the braking surface of this rotor, as doing so removes the protective zinc layer and causes instant rusting.
✗ Do not mix old and new components: Never install new NSK bearings onto an old, worn axle spindle race, as this will lead to premature bearing failure.
✗ Do not use harsh chemical cleaners: Avoid using acid-based wheel cleaners or heavy solvents that can chemically strip away the galvanised rust protection.

Additional information

Weight	8 kg
Dimensions	30 × 30 × 15 cm
Stud Pattern (PCD)	Ford (5 x 114.3mm), Holden HT (5 x 107.95mm)
