Independent Coil Suspension Kit – Hydraulic

$2,662.50$3,685.26 inc GST

Afterpay available for orders up to $2,000.00 Learn More

Engineered for Quality

Clear

Description

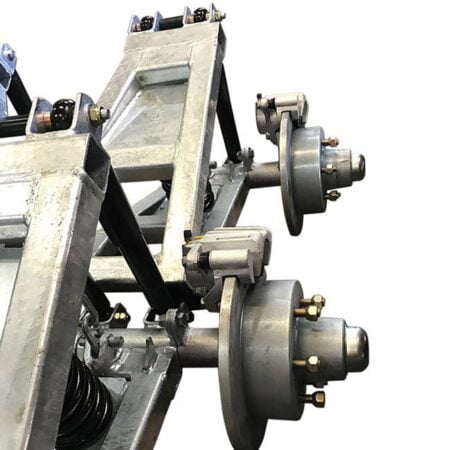

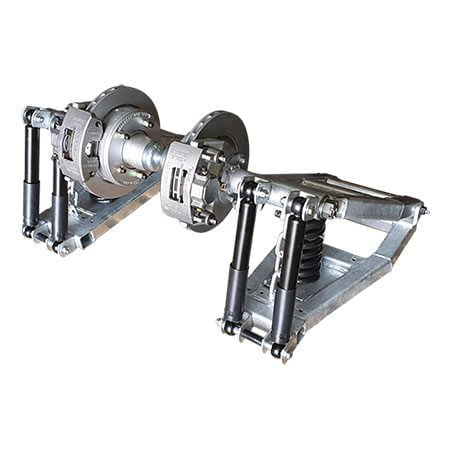

Independent coil suspension kit – Hydraulic

The Couplemate Independent coil suspension with hydraulic braking systems for boat trailers. Dirt roads from Cape York to Broome, Couplemate ICS trailing arm kits are well designed by our engineers. The most popular reason our customers select this independent suspension system is:Australian Made

  • Robust hydraulic disc brakes
  • Reliable coil spring system
  • Does not require constant camber adjustment
  • Coil Springs have no weak spots as opposed to leaf springs which have a soft spot 100mm from the eye, on most springs.

Our experts can quickly help you with any height or ride information you need. One of the most popular questions. Do we provide replacement bushings? The ICS has two high tensile bushings that do not require replacement.

We have replaced only two bushings on a trailer after 250,000 over the outback terrain. So no, generally we do not replace bushings. However, that is not to say we cannot replace these bushings.

Couplemate suspension systems have many features designed by our engineers; they are Ride Height No Load  335mm, Full Load 297mm as measured from the bottom of the chassis rail to the axle centre.

Coil spring upgrades or replacements can be found here

Is Couplemate independent suspension made in Australia?

Yes, the ICS is by the Australian made Campaign and manufactured in our Wynnum workshops by Aussie workers.

Features

  • Ride Height No Load  335mm, Full Load 297mm as measured from the lower part of the chassis rail to the axle centre.
  • Coil Springs – Replaceable
  • Stub Axles – Replaceable
  • Al-ko Hydraulic Calipers with Stainless Pistons
  • Al-ko Disc Rotors
  • Max Compression 70mm at full load.
  • Bump stops help prevent shock loading.
  • This zero camber is due to the upper frame that provides fundamental strength to the entire suspension.
  • Coil suspension features our unique zero camber at full load.
  • Inbuilt structural rigidity ensures no camber movement.
  • Twin shock absorbers.
  • Australian Made.
  • To make your calculation simple, we can offer Sunraysia Rims and off-road tyres in 14 inch, 15 inch and 16-inch tyres with prices ranging from $244.00 to $344.00 for the 16-inch off-road tyre. (tyres are extra)

Price includes both left and right-hand sides to suit a single axle. Independent coil suspension kit is built explicitly for rigidity. We recognised rigidity is the key to independent suspension. Therefore, we needed a top and bottom frame. The addition of a top frame to compliment the bottom structure is the key to rigidity and strength for the toughest of conditions.

Authorised Installers

Trailers and Spares – 4/294 New Cleveland Rd, Tingalpa. Phone (07) 3890 4211

Trail A Van – 24 Mansell St, Wilsonton. Phone (07) 4634 8600

ATM Load Ratings

  • 1450kg – Slimline
  • 1600kg – Parallel
  • 2250kg – 2t Al-ko

Specifications

Review Other Independent Suspensions Couplemate Offer Here

Couplemate Trailer Parts sells only the best quality Independent Coil Suspension Kit – Hydraulic and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.

© Steve Wotherspoon August 24, 2021. Images and text may be copied, provided a link back to the copied page and the source is displayed where the content or image is located.

Additional information

Weight120 kg
Dimensions90 × 60 × 60 cm
Stud Pattern

,

Reviews

There are no reviews yet.

Be the first to review “Independent Coil Suspension Kit – Hydraulic”
