20mm x 30t G80 Truck Trailer Safety Chain Holder

Part No: CM560 Category: Tag:
Part No: CM560 Category: Tag:

$396.00

Brand: Couplemate

The original G80 Truck Trailer Safety Chain Holder

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

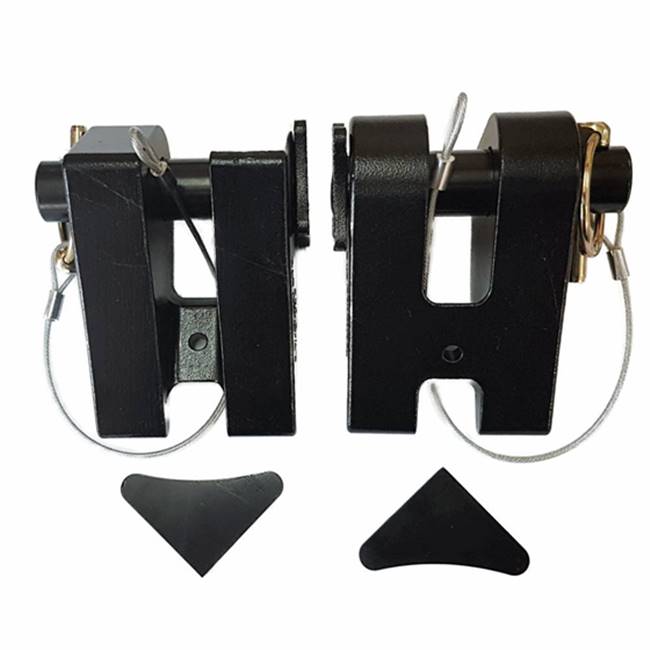

20mm x 30t G80 Truck Trailer Safety Chain Holder | Suits up to 30t

20mm x 30t G80 Truck trailer safety chain holders use a 4140 high tensile pin on vehicles that weigh over 3500 kg and up to 30 tonne.

Chain Holder Installation Instructions:

  • Weld the safety chain holder to the tow bar.
  • Weld safety chain holders directly to the trailer chassis rail as close to the coupling.
  • Aluminium Trailers: Weld the chain holder to a plate and bolt it to the trailer via 4 x high-tensile bolts.
  • The triangle tag is a safety feature that prevents the 4140 pin from falling out of the holder.

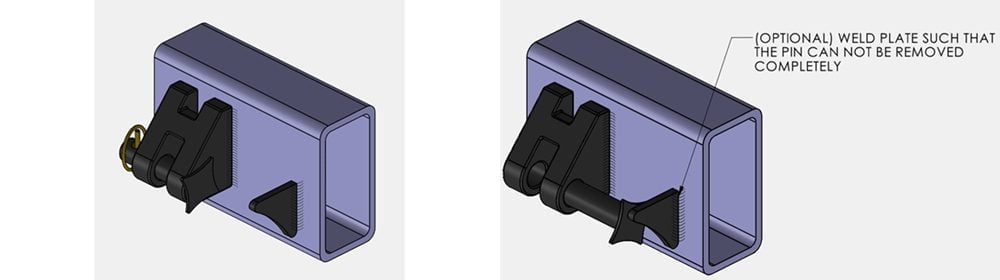

How to weld G80 Safety Chain Holders onto trailer chassis (with optional mount plate).

How to weld G80 Safety Chain Holders onto trailer chassis. Made by Couplemate.

Testing G80 Safety Chain Holders

Road safety starts with product safety and product testing.

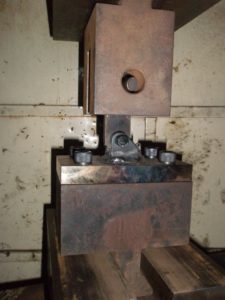

The 200t press above is set up to destroy the safety chain holder to its breaking level and record the data.

Welding plays a crucial role in safety. Incorrect or unprofessional welding causes dangerous situations.
8t Military Grade Truck Trailer Safety

  • Every truck with a tow bar that tows a trailer over 3.5t must have a pair of safety chain holders attached. The holder has a 4140-grade pin.
  • Mount the chain holders on either side, adjacent and as close as possible to the tow bar coupling.
  • Furthermore, the attachment must withstand static forces that are incurred during towing and, in particular, be resistant to cracks or breaks.

Myths and Facts: Dee Shackles and Safety Chains

Chain Holder Technical Specifications

Purchase matching G80 Safety Chain

Review Safety Chain Holder up to 3.5t

Additional information

Weight10 kg
Dimensions15 × 10 × 8 cm
