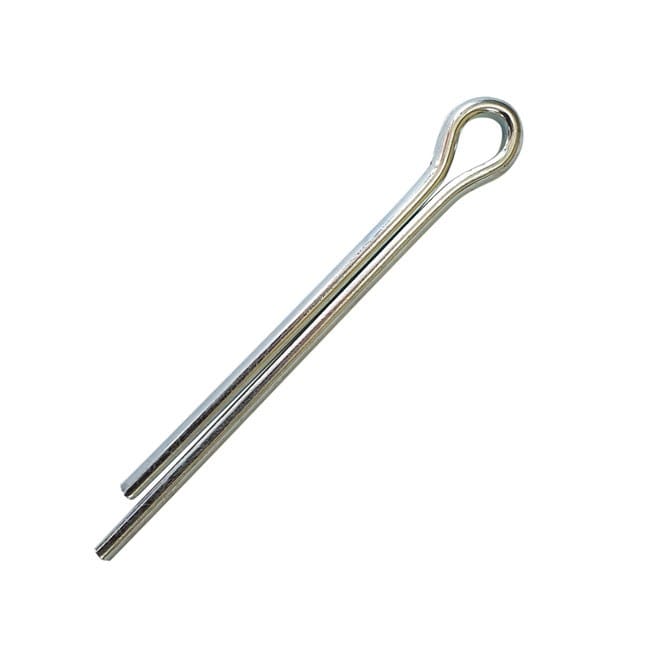

Split Pin – M10 x 100mm – Suits: 10T Towball
Price
$2.18 Inc.GST
Shipping
This M10 x 100mm Heavy-Duty Split Pin (Cotter Pin) is a critical safety component designed specifically for securing 10-tonne 3-inch towball assemblies. It acts as the final fail-safe, ensuring the large castle nut remains locked in place under the extreme vibrations and loads associated with heavy-duty towing.
Product Overview
When hauling 10 tonnes, security is paramount. This oversized split pin is engineered to fit the cross-drilled hole of a 3-inch towball shank. Its substantial 100mm length provides ample material to be bent securely around the castle nut, preventing the nut from backing off even under the most demanding road conditions.
Key Features
- Safety Critical: Provides a mechanical lock for the towball nut, preventing accidental loosening and potential trailer detachment.
- Heavy-Duty Sizing: At M10 thick, this pin offers high shear resistance, making it suitable for the massive torque and tension loads of a 10T towing setup.
- High-Ductility Steel: Manufactured from premium mild steel that is easy to bend during installation without snapping, yet rigid enough to hold its shape once set.
- Corrosion Protection: Finished with a protective coating to resist rust and road grime, ensuring it remains easy to inspect and eventually remove during maintenance.
Technical Specifications
- Diameter: M10 (10mm).
- Length: 100mm.
- Compatibility: Suits 10T 3-inch (approx. 75mm) diameter towballs.
- Material: Zinc-plated or galvanised mild steel.
- Type: Traditional Split / Cotter Pin
Installation Note
For maximum security, once the split pin is inserted through the towball shank and castle nut, the legs should be bent in opposite directions—one over the top of the shank and the other down against the flat of the nut. Never reuse a split pin; always install a fresh pin whenever the towball is serviced or reinstalled.
There are no FAQs for this product.
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 100 × 1 × 1 cm |
