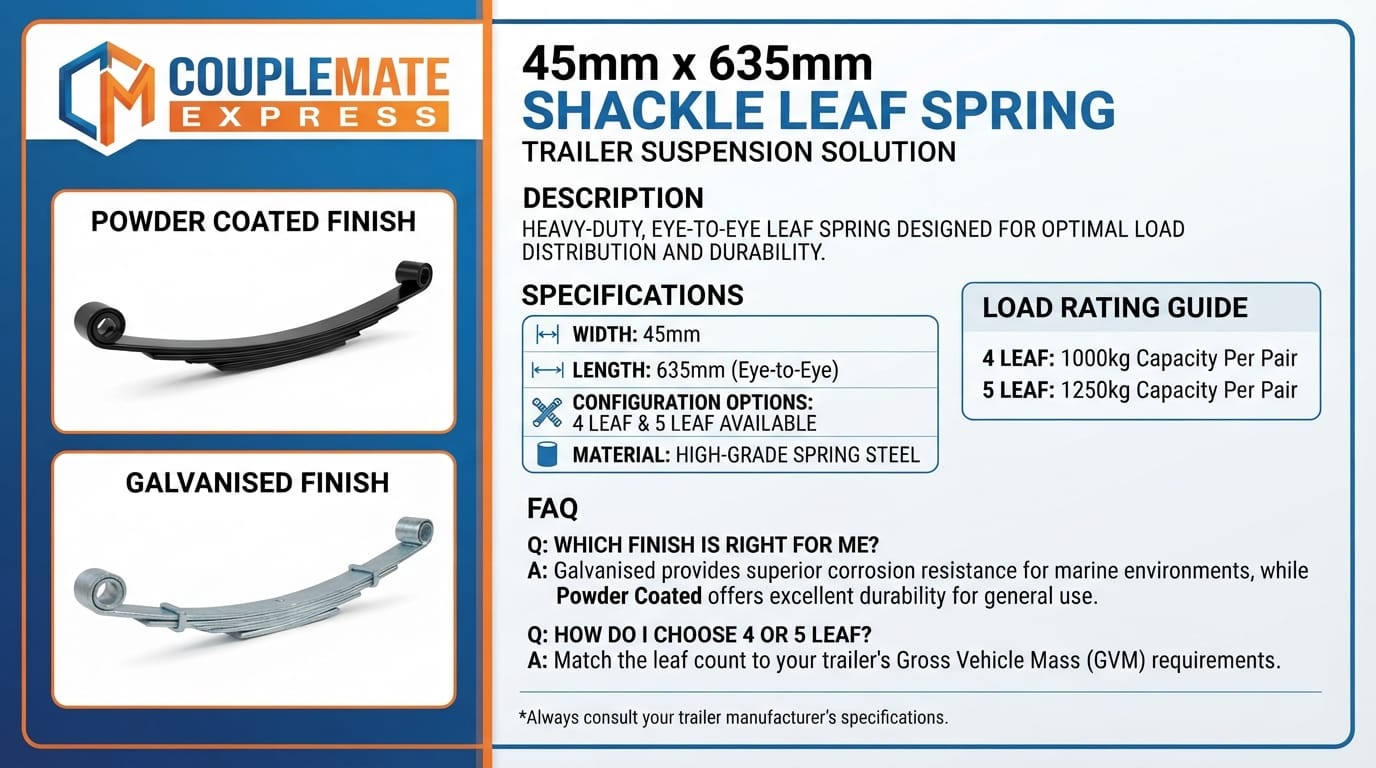

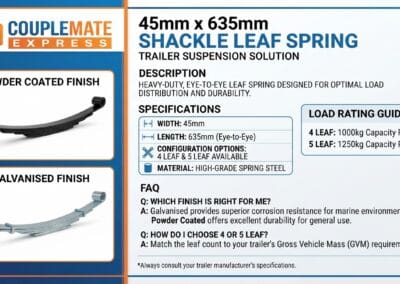

45mm x 635mm Shackle Leaf Spring

SKU: N/A Category: Springs Shackle Tag: eye to eye srpings Brand: Manutec

Eye To Eye Springs - 45Mm Wide And 635Mm Long

Price

Price range: $65.66 through $117.20 Inc.GST

Spring Leaf #

Coating

Spring Offset

Clear

Shipping

Select delivery location

Eye to Eye Springs – 45mm Wide and 635mm Long

Eye to eye springs – 45mm wide and 635mm long are used on tandem trailers and are suitable for use with 13 / 14″ Wheels.

These eye to eye springs – 45mm wide and 635mm long springs are also available in either a centred or offset configuration in 4 or 5-leaf packs only. Additionally, they use polyurethane bushes, which means they don’t need grease and are long-lasting.

Product Specifications

Width: 45mm
Length: 635mm
Leaf Thickness: 8mm
Free Camber: 100mm
Maximum Compression: 50mm
Spring Bolt Holes: 9/16″
Leaf Ratings (per spring):
- 4 Leaf = 550kg
- 5 Leaf = 650kg

Frequently Asked Questions

What size leaf springs do I need? The first step would be to measure your existing leaf springs. You can then confidently match the springs to your trailer. Refer to our How-to guide below for more information:

How to Measure Leaf Springs

Does upgrading leaf springs increase towing capacity? This is a question that comes up a lot. The answer is both yes and no. Trailers are rated based on their weakest component, which is usually the bearings.

Will longer shackles lift my trailer? Yes, longer shackle plates will increase your trailer’s ride height. We offer two lengths of shackle plates suitable for 45mm springs with 63mm centre and 75mm centre holes. It is important to note that the increase is quite minimal and is not the most effective way to increase height.

You will likely see gains of around 5-8mm by increasing your shackle plate length. For alternative ways to improve the height of your trailer, please call us on 07 3348 3822, and the team would be happy to discuss the most appropriate method for you.

Should trailer leaf springs be replaced in pairs? We recommend replacing both springs to avoid any height difference across either side of the axle. A brand-new spring will always have a stronger camber than an old, worn spring, and if the difference is significant, it will result in additional weight being placed on the older spring. This is not ideal.

Purchase Other 45mm Shackle Springs

Here is an excellent article on “Why do springs break?”

Frequently Asked Questions: 45mm x 635mm Shackle Leaf Spring

What are the core dimensions of this shackle leaf spring?

This traditional eye-to-eye automotive style spring features a standard 45mm width and a 635mm eye-to-eye length. It is built with an 8mm leaf gauge, optimised for excellent load sharing and smooth towing.

Can this spring be used on tandem axle setups?

Yes. Eye-to-eye shackle springs are the ideal choice for multi-axle or tandem setups. By linking them through a rocker assembly, the system distributes weight evenly when one axle takes on a larger percentage of the load while crossing kerbs or bumps.

Installation Dos and Don’ts

✔ Installation Do’s

Lubricate regular maintenance parts: Keep your nylon bushes and shackle pins well-greased at all times to prevent premature breakage at the bush ends.
Torque under load: Leave your shackle bolts snug but mobile during installation. Always perform final torquing with the trailer fully on the ground at standard ride height.
Recheck hardware early: Always re-verify bolt torques after the first 50 to 100 miles (80–160 km) of travel.
Position plates properly: Position your rear shackle plates toward the front of the trailer at an angled 5 o’clock position to optimise movement.

✖ Installation Don’ts

Don’t tighten bolts prematurely: Never lock down your shackle bolts while the trailer frame is still suspended on jack stands.
Don’t force unaligned components: Avoid using worn shackle pins, contaminated bushes, or mismatched hanger brackets, as this voids standard warranties.
Don’t ignore bolt clearance: If you are mounting springs above the axle, make sure your central spring bolt does not contact a flat steel surface, or it could shear off under tension.

Additional information

Weight	5 kg
Dimensions	93 × 15 × 10 cm
Spring Leaf #	4 Leaf, 5 Leaf
Bolt Diameter	9/16-inch UNF
Coating	Galvanised, Painted
Free Camber	100mm
Shackle Bolts	9/16 x 3.5-inch Non-Greaseable Shackle Bolt
Spring Compression	50mm Max
Spring Leaf Rating	4 Leaf – 550kg, 5 Leaf – 650kg
Spring Leaf Thickness	8mm
Spring Length	635mm
Spring Type	Shackle
Spring Width	45mm Wide
Spring Offset	Centre Pin, Offset Pin
