6t Pintle Towbar Adaptor

Description

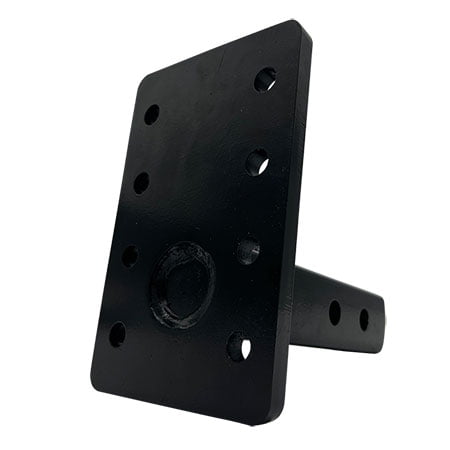

6t Pintle Towbar Adaptor Arm – Forged and Fabricated

6t Pintle Towbar adaptor arm, 8 hole allows a 6t pintle hook connected to a 50mm receiver hitch, possible.

Precision robotic welding makes this adaptor plate the best-built product on the market.

The Couplemate CM510 adaptor hitch receiver arm suits three mounting positions. Another two mounting locations are available when inverting the adaptor bracket.

There are two versions available

• CM510 – 12kN to 76.6kN (use tables below)
• CM510-1 – 6,000kg Rated with CRN 44737 D-Value 88.31kN

The two pintle adaptors above are the most popular on the Australian market.

Purchase suitable pintle hooks and trailer spare parts here

• Combination Pintle Hook Incl 3.5t Tow Ball – D-Value 33.6kN
• 6t Truck Pintle Hook Combination
• Truck Pintle Hooks – 36.8kN to 84kN
• 75mm Ring Coupling D-Value 49kN
• Pintle Hitch Tow Ball Adaptor

Pintle Hitch Adaptor Bracket Features

• Black Powder Coated

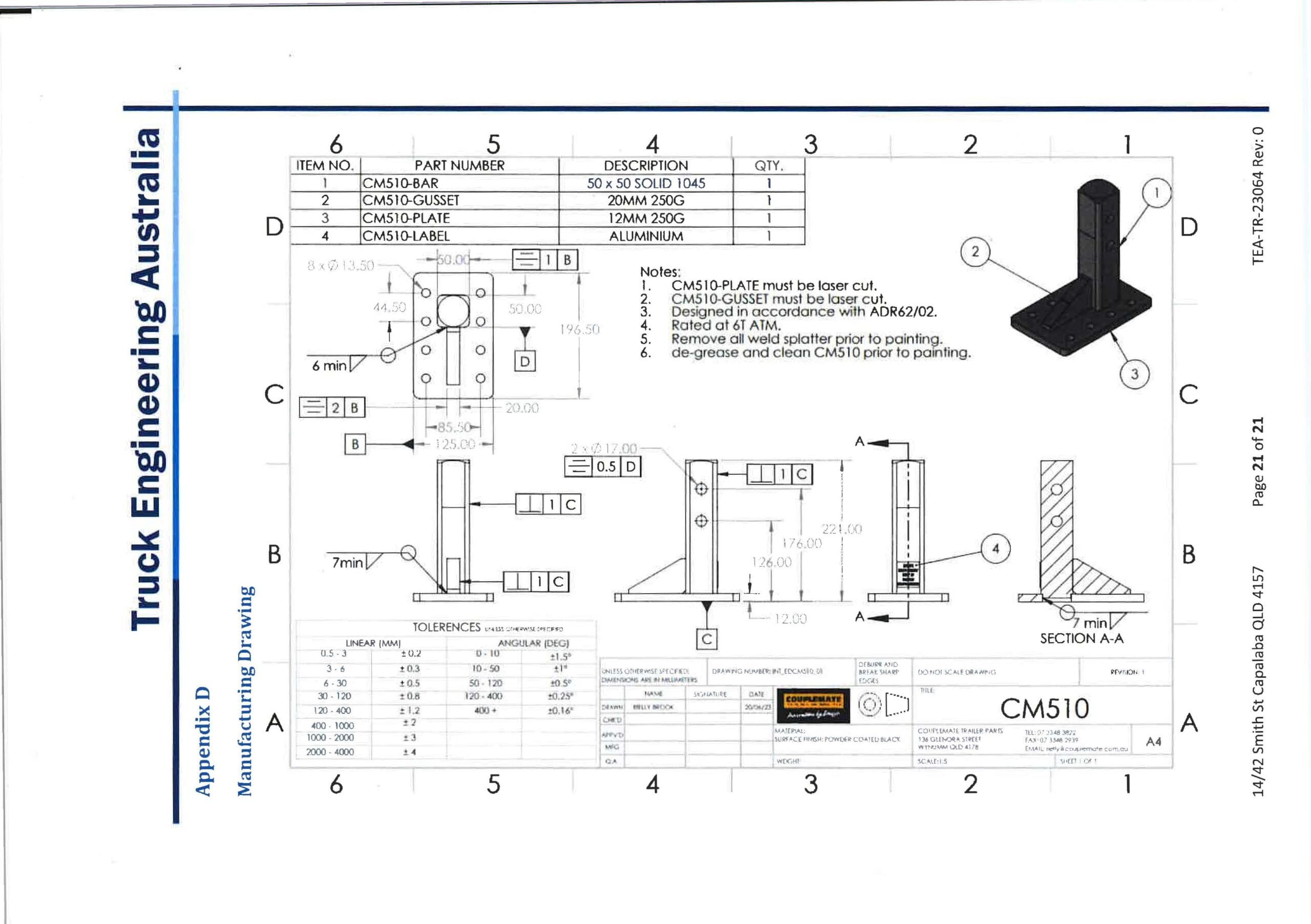

• Rating per diagram
• Solid 50mm fabricated bar
• Suit 5/8 inch pin
• Buy high tensile pintle hook bolts here
• Four mounting positions.
• Mounting holes are 12.5mm
• Centre of hitch pin to the rear of the bar is 75mm

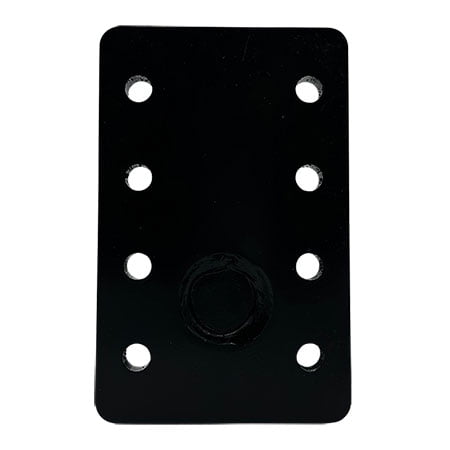

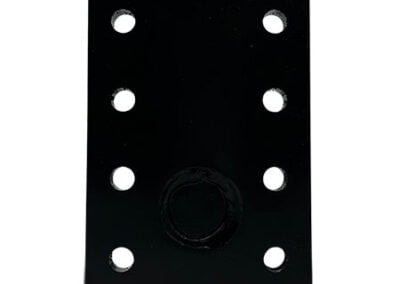

• Pintle hook mounting holes are 85mm x 45mm
• We recommend the use of a high tensile hitch pin for equipment over 3.5t

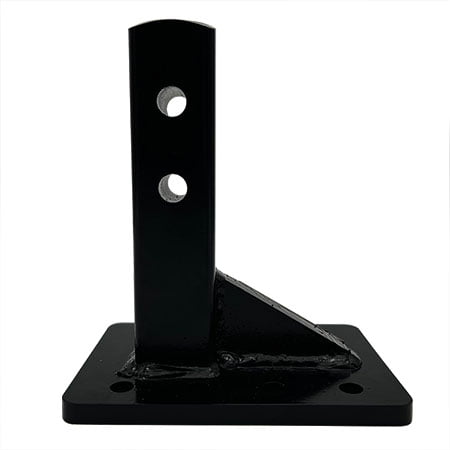

Note 1: Robotic Welding. Note 2: Beware of hollow receiver arms.

The problem with receiver tow arms is the rattle. Rattles are constant and annoying when driving on long trips.

This receiver pin below significantly reduces rattle because it is not only oversized by lockable with a nylock. Standard hitch pins are 16mm and rattle. The high tensile bolt is 16.5mm and rated at 6000kg.

6t Receiver Hitch Pin ClassV

Finally, special discounts are available from our online trailer parts shop only, from time to time.

6t Pintle Towbar Adaptor Arm

Couplemate Trailer Parts sells only the best quality 6t Pintle Towbar Adaptor and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.
