40mm Square Galvanised Axle – Unbraked Hub
Price
Price range: $505.45 through $576.00 Inc.GST
Shipping

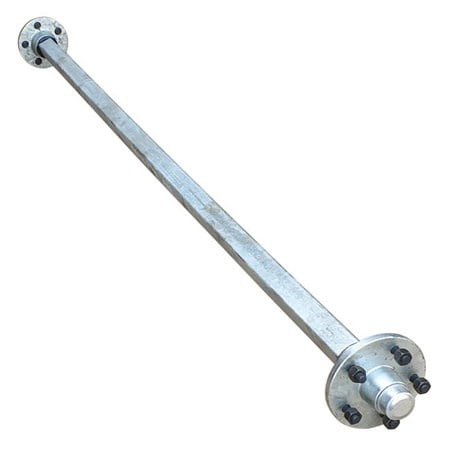

40mm Square Unbraked Galvanised Axle Assembly
A 40mm square unbraked galvanised lazy axle assembly is ideal for small and boat trailers with a capacity up to 1000kg. Boat trailer 40mm axle buyers may like to call us for galvanised equipment.
Available Axle Stud Patterns
- Ford
- HT Holden
- HQ Holden
- Commodore
- 5 Stud Land Cruiser
- 6 Stud Land Crusier
We manufacture our axles from Australian steel and hot-dip galvanise them in Brisbane. We then machine the finished galvanised product.
40mm square assemblies are supplied with Japanese bearings and hubs, ensuring the best quality. It consists of the following:
- 1 x 40mm round axle
- Two lazy Ford hubs
- 2 x Japanese Bearings
It’s ideal for small trailers weighing up to 1000 kg and comes greased and wholly assembled for your convenience.
However, a 40mm square Axle Assembly is unsuitable for over 2300mm or tandem trailers. In a wide-trailer axle assembly, the axle is prone to flex. This rapidly wears out the springs due to vibration reverberation from the axle’s centre to the springs. The springs wear out much more than they should.
Some of the models this is suitable for our Ford, HT Holden, Commodore, HQ Holden, and Land Cruiser 6-stud.
Log on to Couplemate’s website for a wide range of caravan and trailer parts, such as bearing seals, kits, and parts, shock absorbers, and independent coil suspension. We offer delivery in Australia, New Zealand, the USA, Canada, France, Ireland, and Germany.
Axles and ratings are as follows
- 45mm Round Unbraked Lazy Axle Kit – 1450kg
- 45mm Square Unbraked Lazy Axle Kit – 1450kg – 1600kg
- 50mm Square Unbraked Lazy Axle Kit
- 60mm Round Axle 3t Unbraked Axle
- 3t x 65mm Round Lazy Axle Kit
Calculating The Correct Axle Measurements
- Measure the offset wheel. The wheel offset is the distance between the hub’s inside and the rubber’s outside.
- Add 50 mm to the offset. Alternatively, choose the distance between the rubber and the chassis.
- Multiply by 2 for both sides. Add your chassis width to the above number.
Still unsure of what measurements to take? Check out this handy guide below:
[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres
Identifying Bearing Combinations
You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser-engraved onto the bearing. You will require both the inner and the outer bearing numbers.
Find Similar Unbraked Axles Below
- 39mm Round Unbraked Lazy Axle
- 40mm Square Galvanised Axle – Unbraked Hub
- 40mm Square Galvanised Axle – Unbraked Hub
- 45mm Round Unbraked Lazy Axle Kit – 1450kg
- 45mm Round Galvanised Lazy Axle
- 45mm Square Unbraked Lazy Axle Kit – 1450kg – 1600kg
- 50mm Square Unbraked Lazy Axle Kit
- 50mm Square Slimline Galvanised Axle – Marine
- 2t Unbraked 6 Stud Land Cruiser Lazy Hub
- 2t Unbraked 5 Stud Land Cruiser Lazy Hub
- 60mm Round Axle 3t Unbraked Axle
- 3t x 65mm Round Lazy Axle Kit
Additional information
| Weight | 50 kg |
|---|---|
| Dimensions | 240 × 50 × 50 cm |
| Beam Size | 40mm Square |
| Axle Rating | 1000kg ATM |
| Axle Type | Unbraked axles |
| Bearing Profile | |
| Coating | Galvanised |
| Hub Cap | 45.2mm |
| Grease Seal Type | Marine |
| Materials | K1045 Steel |
| Stud Pattern | 5 Stud Landcruiser Galvanised, 6 Stud Landcruiser Galvanised, Ford (5 x 114.30mm), Holden HT (5 x 107.95mm), Holden HQ (5 x 120.65mm), Holden Commodore (5 x 120mm) |
