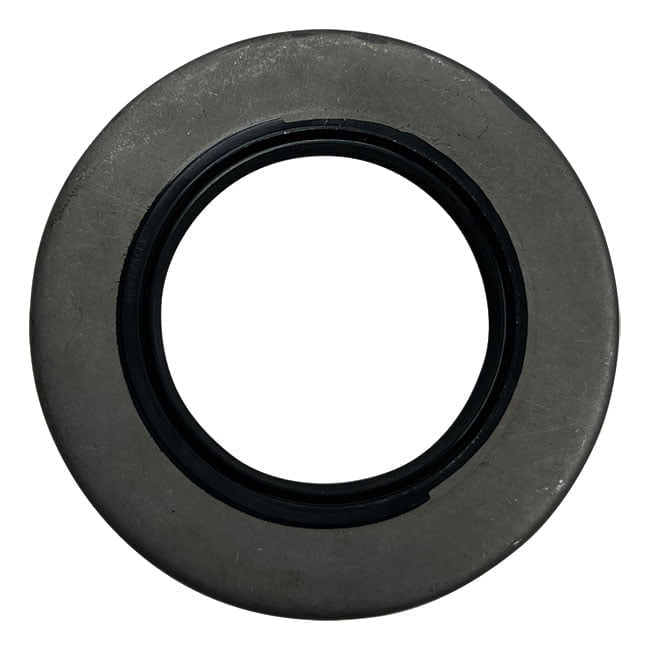

2t Melb Trailer Bearing Seal – 64190
Price
$14.35 Inc.GST
Shipping
2t Melb Trailer Bearing Seal – 64190
2t Melb Trailer Bearing Seal – 64190 requires care during insertion into the hub. D
On some seals, a small spring is inserted under the seal’s lip.
Be careful not to dislodge this spring from under the lip.
Bearings are often destroyed by this spring when it inadvertently becomes dislodged.
Specifications
- ID: 50mm
- OD: 85mm
Dexter Seals
- 33940 – ID: 49.20 : OD: 85.73mm : 13mm Thick
- 33970 – ID: 52.37mm : OD: 85.73mm : 13mm Thick
- GS-2250DL – ID: 57.15mm : OD: 85.7mm : Depth: 9.4mm
- GS-2125DL – ID: 54mm : OD: 85.7mm : Depth: 8mm
- 82130 – ID: 48mm : OD: 85.09mm : Marine
Grease
- Carefully smear a small amount of grease on the axle profile before inserting the hub over the axle.
- Lubrication of the seal journal prevents lip burn.
- Always use seals with metal outer. Rubber seals can be more difficult to insert into the hub.
Find more of our extensive range of standard and marine seals here:
- Grease Seal Holden LM
- Holden Standard Marine Seal – 492020
- Slimline – Parallel Standard seal
- Ford Slimline Marine Seal – 491018
- 2t Caravan Bearing Seal | 64607
- 2t to 3t Marine Metal Bearing Seal
- 1.6t Dexter Grease Seal
- 2.0t Dexter Bearing Seal – GS-2125DL
- 2.0t Dexter Bearing Seal – GS-2250DL
- Simplicity Seals
- 2.0t Dexter Bearing Seal – 33970
- 2.0t Dexter Bearing Seal – 33940
- Trojan 2t Marine Seal – PT10141
- 2.0t Melb Trailer Bearing Seal – 64190
Finally, Couplemate only uses the highest quality parts on all axle assemblies, including metal ring grease seals.
Why American boat trailer bearings fail.
2t Melb Trailer Bearing Seal (64190): Do’s & Don’ts FAQ
What You SHOULD Do (Do’s)
- ✔ Lubricate the rubber lip: Always smear a light film of clean wheel bearing grease on the inner rubber lip before sliding the hub onto the axle shaft.
- ✔ Seat the seal flush: Use a proper seal driver tool or a flat block of wood to tap the seal evenly until it sits perfectly flush with the back of the hub.
- ✔ Inspect the axle surface: Thoroughly clean and inspect the axle machined seal journal for rust, scores, or burrs that could tear the new rubber.
- ✔ Match with 2t bearings: Ensure this 64190 profile seal is paired specifically with 2-tonne rated trailer hubs, as its inner/outer dimensions are highly specific.
What You SHOULD NOT Do (Don’ts)
- ✘ Do not drive it in with a bare hammer: Never strike the seal directly with a metal hammer, as this will distort the metal casing and destroy the sealing integrity.
- ✘ Do not install backward: Avoid pressing the seal in reverse; the open side containing the garter spring must face inward toward the grease cavity.
- ✘ Do not reuse an old seal: Never reinstall a seal that has been pried out during a bearing service, as the metal shell warps during removal and will leak.
- ✘ Do not leave the spring out: Make sure the internal tension spring hasn’t popped out of its groove during installation, or the lip won’t seal against the axle.
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 10 × 10 × 2 cm |
| Seal SKU | 64190 |
| Seal ID | 50mm |
| Seal OD | 85mm |
