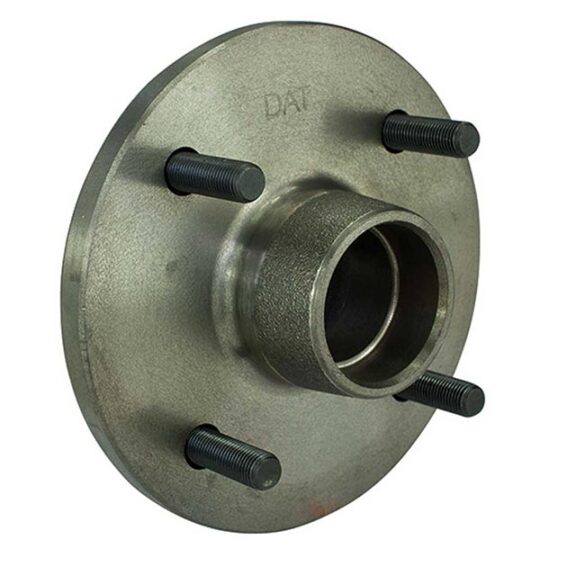

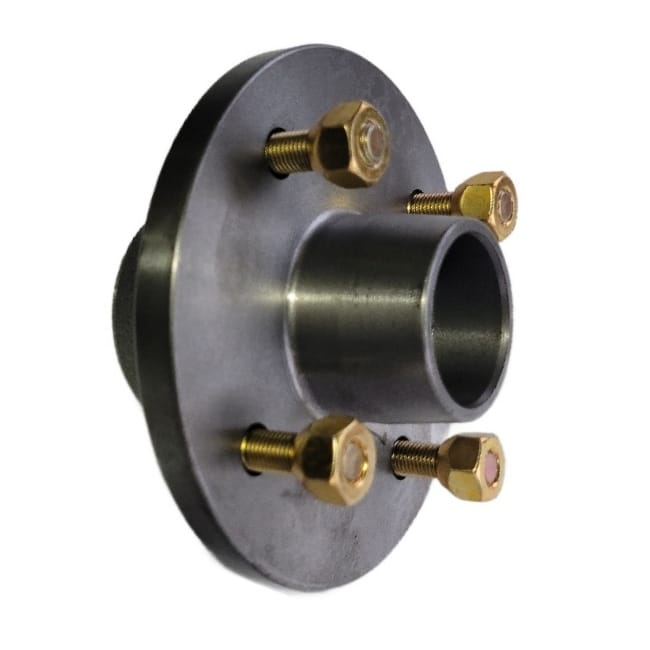

4 Stud Trailer Lazy Hub – Australian Made
4 stud trailer lazy hub is used on trailers under 750 kg and used as a rear axle on a tandem trailer or caravan setups under 2000 kg
Couplemate supports Australian workers and their families who produce products made in Australia.
Unbraked hubs are supplied with the following PCD.
- GEMINI – PCD 100mm – Stud Size 7/16″ – Stud 1.25 TPI – Hub Dia 150mm – Outer Boss 53.00mm – Rating 650kg
- HONDA – PCD 100mm – Stud Size 7/16″ – Stud 1.25 TPI – Hub Dia 150mm – Outer Boss 53.00mm – Rating 650kg
- GEMINI – PCD 100mm – Stud Size 7/16″ – Stud 1.25 TPI – Hub Dia 150mm – Outer Boss 53.00mm – Rating 650kg
- HONDA – PCD 100mm – Stud Size 7/16″ – Stud 1.25 TPI – Hub Dia 150mm – Outer Boss 53.00mm – Rating 650kg
- LANCER – PCD 100mm – Stud Size 7/16″ – Stud 1.25 TPI – Hub Dia 150mm – Outer Boiss 52.5mm – Rated 650kg
- BARINA – PCD 100mm – Stud Size 7/16″ – Stud 1.25 TPI – Hub Dia 150mm – Outer Boss| 52.5mm – Rating 650kg
- MINI – PCD 100mm – Stud Size 7/16″ – Stud Size 1.25 TPI – Hub Dia 150mm – Outer Boss 60.9mm – Rating 1000kg
- MAZDA – PCD 110mm – Stud Size 7/16″ – Stud Size 1.25 TPI – Hub Dia 150mm – Outer Boss 60.9mm – Rating 1000kg
- DATSUN – PCD 4.5″-| Stud Size 7/16″ – Stud Size 1.25 TPI – Hub Dia 150mm – Outer Boss 60.9mm – Rating 1000kg
- PULSAR – PCD 4.5″ – Stud Size 7/16″ – Stud Size 1.25 TPI – Hub Dia 150mm – Outer Boss 60.9mm – Rating 1000kg
- COROLLA – PCD 4.5″ – Stud Size 7/16″ – Stud Size 1.25 TPI – Hub Dia 150mm – Outer Boss 60.9mm – Rating 1000kg
- CORTINA – 4 x 7/16″ Studs – 4.25″ PCD – Hub Dia 150mm – Outer Boss 60.9mm – Rating 1000kg
- SUBARU – 4 x 7/16″ Studs – 140mm PCD – Hub Dia 190mm – Outer Boss 60.9mm – Rating 1000kg
Larger Custom Work Example
Standard Holden bearings LM maximum rating is 1000kg
- Inner bearing ID 31.75mm, OD 59.10mm
- Outer bearing ID 19.05mm, OD 45.20mm
- Seal ID 37.5mm, OD 59.10mm
- Dust Cap 45.20mm
Suit axles with Ford bearings max rating are 1450kg
- Inner bearing ID 35.00mm, OD 59.10mm
- Outer bearing ID 22.00mm, OD 45.20mm
- Seal ID 43.9mm, OD 59.10mm
- Dust Cap 45.20mm
Please note: Wheel nuts are not included in your 4 Stud trailer lazy hub purchase.
What is the best trailer bearing to use?
We recommend Japanese bearings for high-speed highway use and longevity.
- Check bearings yearly for water ingress or carbon black deposits in your grease.
- Carbon black indicates bearing wear. The carbon black comes from wear on the casing of the bearings.
- A quick way to check wheel bearings is to jack up the wheel and grab the wheel top and bottom. Please give it a good shake from front to back.
Couplemate machine unbraked hubs and other spare parts for boat trailers at our Wynnum facility in Queensland. Landrover, Range Rover, and metric Landcruiser studs variations require 48-hour notice.
At Couplemate, we machine our own 4-stud galvanised lazy Hubs at our Wynnum facility in Queensland. Landrover, Range Rover, and metric Landcruiser stud variations require 48-hour notice before we supply them for your axle build.
Additional information
Weight | 3 kg |
---|---|
Dimensions | 15 × 15 × 12 cm |
Stud Pattern | Barina – 4 x 7/16 Studs, Blank – 150mm, Lancer – 4 X 7/16 Studs, Cortina (4 x 107.95mm), Gemini – 4 x 7/16 UNF Studs, Honda – 4 x 7/16 UNF Studs, Pulsar – 4 x 7/16 UNF Studs, Toyota Corolla – 4 x 7/16 Studs, Datsun – 4 x 7/16 UNF Studs, Mini – 4 x 7/16 UNF Studs, Mazda – 4 x 7/16 UNF Studs, Subaru – 4 x 7/16 UNF Studs |
