3t Unbraked Land Cruiser Lazy Hub

Name: 3t Unbraked Land Cruiser Lazy Hub: Technical Overview
Brand: Couplemate
Price: $145.00
Availability: InStock

SKU: N/A Category: Hubs - Unbraked Tag: Couplemate™ Core Brand: Couplemate

3T Unbraked 6 Stud Land Cruiser Lazy Hub

Price

$145.00 Inc.GST

Stud Pattern (PCD)

Clear

Shipping

Select delivery location

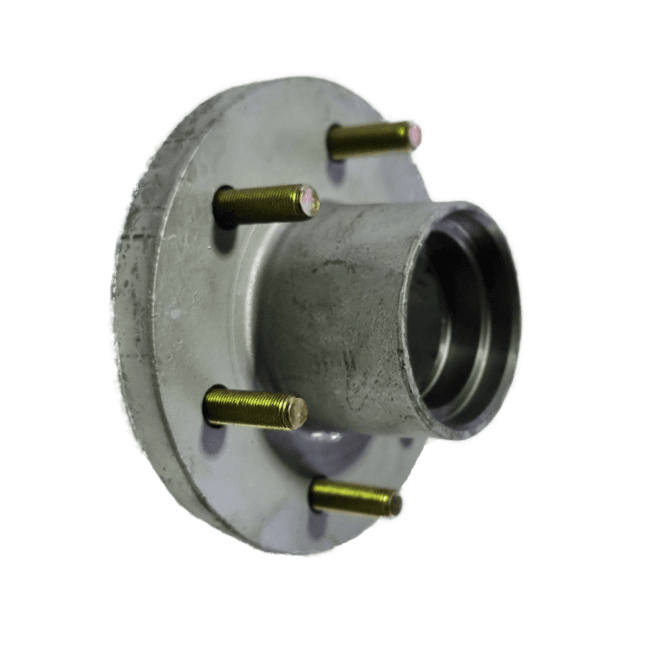

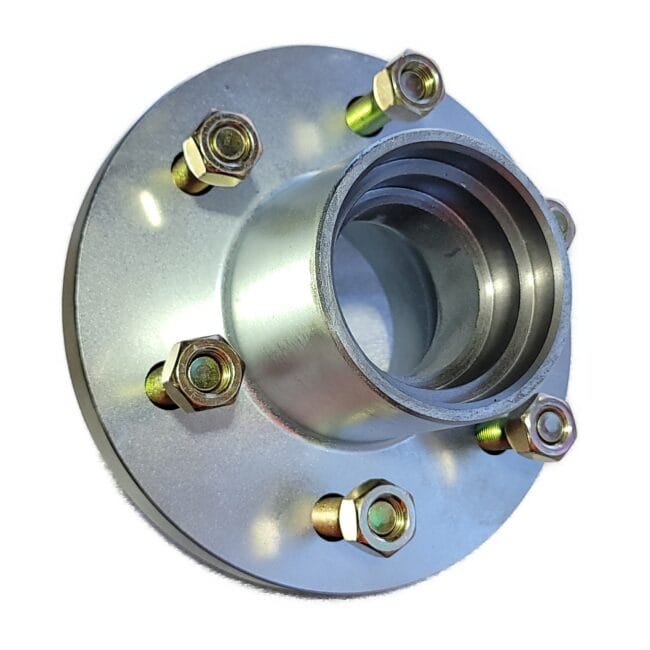

3t Unbraked Land Cruiser Lazy Hub

3t x Lazy Hub is studded to 9/16-inch x 5 Stud or 6 Stud Land Cruiser configuration.

For a 3t (3,000kg) unbraked application, you typically require a heavy-duty lazy axle assembly rather than a standard 750kg hub.

While individual “lazy” hubs are unbraked by definition, Australian law generally requires brakes on trailers with an Aggregate Trailer Mass (ATM) over 750kg. However, 3-tonne-rated lazy hubs are used in specific multi-axle configurations or off-road farm applications.

The 3t hub features a robust design that ensures reliable performance under various conditions.

Its lazy unbraked functionality simplifies usage, making it suitable for a wide range of applications.

The electrogal coating provides enhanced corrosion resistance, extending the hub’s lifespan and maintaining its operational integrity.

With these attributes, the 3t hub stands out as a dependable choice for demanding environments.

Give us a call if you require galvanised lazy hubs not listed here.

Lazy hubs P.C.D.

2t or 3t L/cruiser (6 x 139.7 PCD 1/2 studs) (5 x 150mm 9/16″ studs) (5 x 150mm M14)

We recommend Japanese bearings for high-speed highway use and for their longevity.

Check your bearings yearly for water ingress or black carbon deposit in your grease.
Carbon black indicates bearing wear, so they will need to be replaced.
The carbon black comes from wear on the bearing casings.

3t AL-KO Caravan Bearing Kit

2t Unbraked Hub Links

3T Unbraked Land Cruiser Lazy Hub FAQ

What is the bolt pattern? It features the standard Toyota Land Cruiser 6-stud pattern (6×139.7) for maximum wheel compatibility.
What is the maximum weight capacity? This hub is strictly rated for up to 3,000kg (3 Tonnes) when used in an appropriate multi-axle or specific heavy-duty unbraked setup.

Do’s and Don’ts

DO verify your local braking laws, as unbraked trailers over 750kg GVM are illegal for highway use in many regions.
DO pack the hub thoroughly with high-quality marine grease before your first high-speed trip.
DON’T exceed the 3,000kg load limit, as overloading can cause catastrophic bearing failure.
DON’T use an impact wrench to tighten the castle nut; always torque it by hand to ensure the correct bearing preload.

Additional information

Weight	8 kg
Dimensions	20 × 20 × 20 cm
Stud Pattern (PCD)	5 Stud Landcruiser (5 x 150mm), 6 Stud Landcruiser (6 x 139.7mm)
