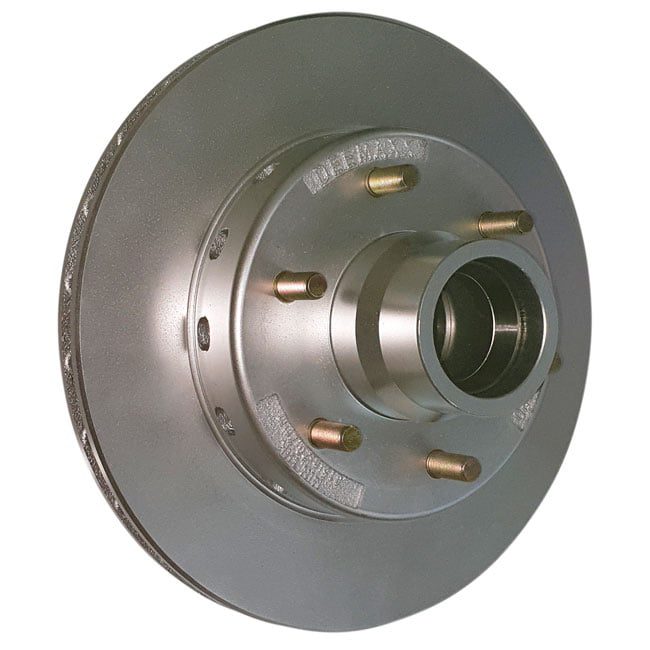

12-inch DeeMaxx Disc Rotor | Ventilated


12″ Ventilated Disc Rotor for 6S Landcruiser Rims

Advanced heat dissipation via ventilation.
✓ Dacromet-coated for superior corrosion resistance.
Suits American-style boat trailer brakes (DeeMaxx and Kodiak).

Designed and manufactured by DeeMaxx.

Couplemate accepts PayPal, Visa and Mastercard.

12″ DeeMaxx Disc Rotor | Ventilated

12″ DeeMaxx Disc Rotors are known for their ability to provide superior heat dissipation. By having ventilation gaps, air can better circulate in your discs which helps keep caliper brakes cooler.

DeeMaxx is known for their great quality in American boat trailer rotors. With a rotor thickness of 22mm, these brake hubs will suit both DeeMaxx and Kodiak hydraulic caliper brakes.

Each disc is supplied dacromet coated, as it provides great rust resistance which is especially important for boat trailers exposed to salt water.

You can see our full range of American Boat Trailer Parts here.

Product Specifications

  • Stud Pattern: 6S Landcruiser (6 x 139.7mm)
  • Stud Type: 1/2″ UNF
  • Stud Centre: 69.85mm
  • Coating: Dacromet
  • Rotor Thickness: 22mm
  • Maximum Rotor Diameter: 304.80mm (12″)
  • Bearings: Dexter 2.0t Marine

Suits 2.0t American Dexter Bearings

  • Inner Bearing: 25580/20 (ID 44.45mm) (OD 82.93mm)
  • Outer Bearing: 15123/245 (ID 31.75mm) (OD 59.10mm)
  • Grease Seal: SKU (ID 50.00mm) (OD 85.00mm)
  • Dust Cap: DC1980

Discs are supplied without bearings. Spare bearing kits can be purchased separately here.

Installation Overview

Disc mounts are dry-fitted for the best results.

  • Fit the bearings into the disc rotor without grease (initially).
  • Fit the rotor onto the axle. Lock the axle nut.
  • Bolt the mounting plate onto the disc caliper
  • Place a cable tie around the rotor.
  • Install the caliper and mount it over the disc rotor.
  • Install an airline into the hydraulic thread to blow out the piston onto the disc pad, locking the disc pad into position.
  • Tack weld the mounting plate into position.
  • If you are happy with the location of the mount, remove the caliper and rotor to finish welding.
  • Grease the bearings and re-install the disc.

Find more Deemaxx parts here

Additional information

Weight12 kg
Dimensions30 × 30 × 15 cm




Stud Pattern

6S Landcruiser (6 x 139.7mm) (1/2")

Stud Centre


Caliper Brake Type

DeeMaxx, Kodiak

Disc Diameter

304.80mm (12")

Disc Thickness


Rust Protection

DeeMaxx Dacromet Coating
