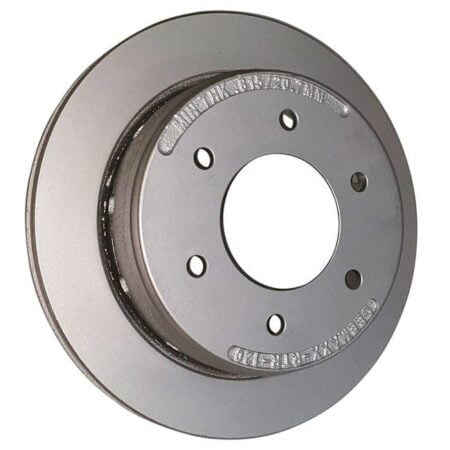

Top Hat Disc Rotor Maxx Coated

$88.00$125.90 inc GST

SKU: N/A Category:


Top Hat Disc Rotor Maxx Coated suit Ford and Landcruiser Hubs

Top Hat Disc Rotor Maxx is ideal for all Australian and American galvanised hubs. This suits a 10-inch or 12-inch disc rotor setup.

Ventilated top hat disc rotors can be used on Australian hubs however, use Ameican calipers. A ventilated rotor has an air gap in-between discs. The purpose of the air gap is to dissipate heat.

Caliper brackets fit standard electric mount plates making a conversion from unbraked axles to braked axles easy.

Purchase galvanised lazy hubs here.

You will also need a galvanised hub to fit these rotors onto your axles.

Rotors fit the following stud patterns

  • Ford – PCD 4.5 inch or 112.5mm. Suits a 10-inch rotor.
  • 6 Stud Landcruiser PCD – 140mm. Suits 12″ rotor
  • 5 Stud Landcruiser PCD – 150mm. Suits 12″ rotor

American rotor wall thickness is 18mm.

Australian 10-inch calipers have 15mm disc rotor walls. This Rotor suits DeeMaxx and Kodiak calipers only.

Purchase calipers here.

American rotors are ideal for 3t trailers due to twin-piston calipers. Australian hydraulic calipers have a lower braking capacity.

If you have Australian or American hubs, this top hat will fit, however you must use American calipers only.

Couplemate Trailer Parts sells only the best quality Top Hat Disc Rotor Maxx Coated and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.

© Steve Wotherspoon October 7, 2017. Images and text may be copied, provided a link back to the copied page and the source is displayed where the content or image is located.

Additional information

Weight6 kg
Dimensions30 × 30 × 15 cm
Stud Pattern

Ford 5 Stud, Land Cruiser 6S, Land Cruiser 5S
