45mm Round Parallel Stub Axle

Part No: 45RSPLL Categories: , Tag:
Part No: 45RSPLL Categories: , Tag:

$32.23$51.75

Couplemate - Engineered For Quality

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

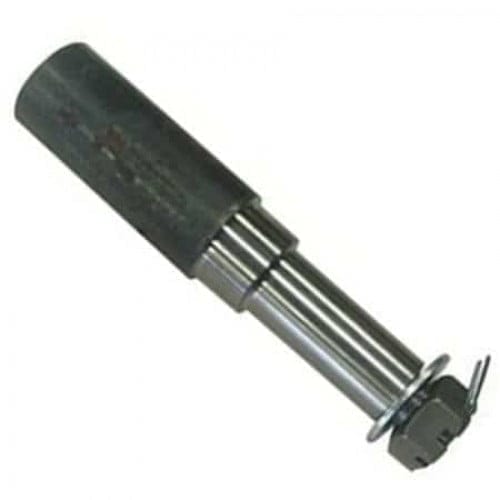

45mm Round Parallel Stub Axle

45mm round parallel stub axles used on larger trailers are load-rated to 800kg each or 1600kg per pair.

Select from an electric or marine turn. An electric turn suits both electric and hydraulic backing plates, while a marine turn fits marine or unbraked axles. Smaller-size stub axles can break under stress loading, impacting running equipment.

Shock loading applies stress loads through potholes, gutters and other obstacles that can accidentally change the dynamics of your rig.

We recommend you use only Japanese Bearings.

Seal Shoulder

The seal shoulder is an essential factor when selecting stub axles.

  • Electric stub axles have a seal that should set back 128mm for standard slimline bearings and 140mm for parallel bearings.
  • Marien stub axles have a rear shoulder of 115mm to accommodate a marine seal.

Please measure the back shoulder before ordering.

Towing rated capacity

  • 750kg each or 1450kg per pair when installed on slimline bearings
  • 1600kg per pair when mounted on parallel bearings.

Suitable for welding onto a 45mm Square beam to create an overlay axle. The ideal overlap is 50mm of the welded section between the beam and stub axle.

Parallel are profiles that are ideal for off-road adventures.

Various stub lengths can be produced to be welded to the suspension frame of your off-road camper.

Campers, Caravans or trailers around 2400mm long use a 45mm Square Axle fora rating around the 1600kg mark.

Purchase a spare wheel carrier here.

Understanding Axles and various types of suitable axles and bad axles.

The links below contain a variety of stub axles we manufacture.

Finally, how Vibration fatigue causes axle failure.

Additional information

Weight4 kg
Dimensions25 × 5 × 5 cm
Stub Length

200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
