45mm Round Unbraked Lazy Axle Kit

Part No: 45RL Category: Tag:
Part No: 45RL Category: Tag:

$405.27$609.00

Enter the Face-to-Face length of your axle. (mm).
Please enter a number from 1000 to 2310.

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

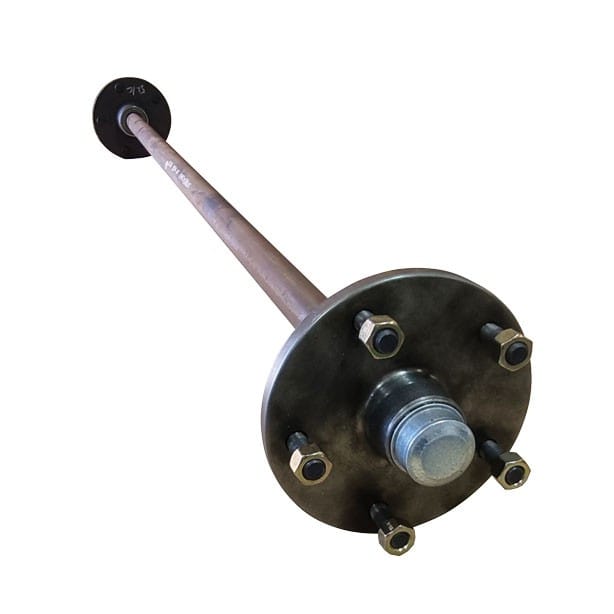

45mm Round Unbraked Lazy Axle Assembly


45mm round axle assembly kit with lazy or unbraked hubs and Japanese bearings.

Here is why Couplemate make one of the best-unbraked axles

  • BlueScope Steel
  • Quality Hubs
  • Japanese Bearings
  • Pre-assembled to factory specifications.
  • Finally, Couplemate’s lifetime warranty against faulty craftsmanship.

I recommend Japanese bearing on all trailer builds and caravan servicing work.


Axle includes:

45mm round lazy axle kit is ideal for trailers up to 1450kg.

Note: 45mm Square axles are recommended for heavier loads and tandem or wide trailers over 2000mm. Undersized axles and heavy loads cause vibration fatigue.

Learn about axle vibration fatigue here.

If overloaded, a wide 45mm Round Axle Assembly Trailer suffers from axle flex. Axle flex rapidly wears your springs due to vibration reverberating from the centre of the axle back to the spring.

Effectively, your spring is working twice as hard as it should.

Learn how to replace broken springs here.

Axles and ratings are as follows

Calculating The Correct Axle Measurements

  1. Measure the offset wheel. The wheel offset is the distance between the hub’s inside and the rubber’s outside.
  2. Add 50 mm to the offset. Alternatively, choose the distance between the rubber and the chassis.
  3. Multiply by 2 for both sides. Add your chassis width to the above number.
Still unsure of what measurements to take? Check out this handy guide below:

[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres

How To Measure An Axle

Identifying Bearing Combinations

You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing numbers.

Where to identify bearing number. Look for the laser engraved number on the bearing.

Additional information

Weight70 kg
Dimensions240 × 50 × 50 cm
Stud Pattern

Ford Parallel, 5 Stud Landcruiser – Parallel, 5 Stud Landrover Defender 5/8 Parallel x 6.5-inch P.C.D., 6 Stud Landcruiser – Parallel, Cortina (4 x 107.95mm), Gemini – 4 x 7/16 UNF Studs, Honda – 4 x 7/16 UNF Studs, Pulsar – 4 x 7/16 UNF Studs, Toyota Corolla – 4 x 7/16 Studs, Datsun – 4 x 7/16 UNF Studs, Mini – 4 x 7/16 UNF Studs, Mazda – 4 x 7/16 UNF Studs, Subaru – 4 x 7/16 UNF Studs, Ford (5 x 114.30mm), Holden HT (5 x 107.95mm), Holden HQ (5 x 120.65mm), Holden Commodore (5 x 120mm), Land Cruiser 6S, Land Cruiser, 5s Landcruiser (5 x 150mm), 5S Landcruiser – 5 x 14mm Studs, Nissan – 6 x 1/2 UNF Studs, Nissan – 6 x 12mm Studs, Ford F100 – 5 x 1/2 UNF Studs, 5 Stud Landrover Discovery 5/8, 5 Stud Landrover Defender

Beam Size

45mm Round

Our Service Lifetime Warranty

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.

Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.

Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.

60-Day Returns

After 60 years of experience, we know that life has its unpredictable moments.

All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.

You can view our full policy for change-of-mind returns here.
