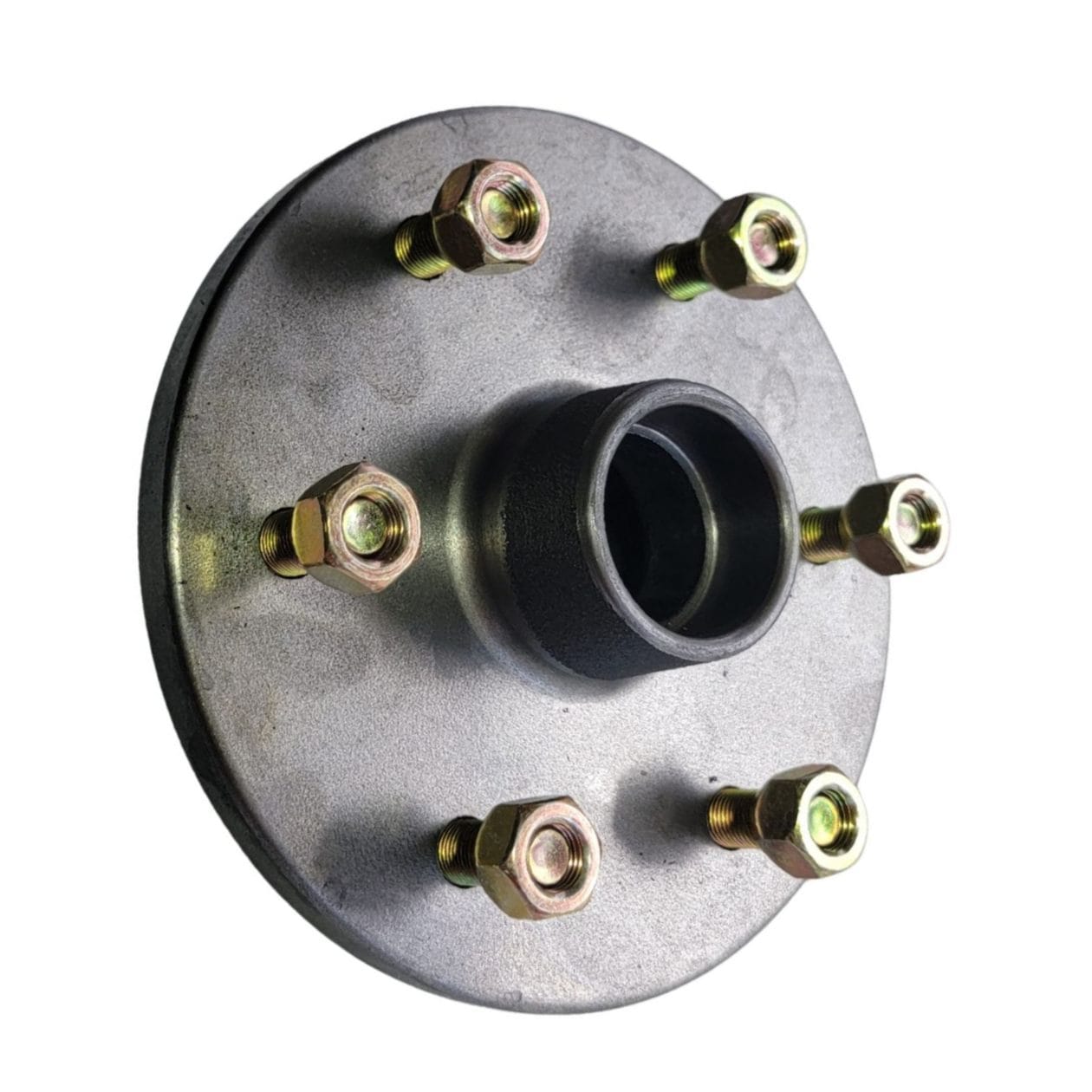

AL-KO 6 Stud Landcruiser Hub with 1/2-inch studs, suit Slimline Bearings
The AL-KO 6 Stud Landcruiser lazy hub configuration is used on 14-inch to 16-inch wheels and suits a variety of NSK Japanese bearing kits.
Note: When installing 15″ or 16″ wheels on 39mm Round Axles, derate the hub bearing rating by 20%.
Supplied with 1/2-inch Studs (no nuts)
6 Stud Landcruiser Hub Upgrades
Upgrading 6-stud hubs is challenging even in the best of times. Before buying your new 5-stud rims and tyres, it would be best to take many measurements.
It is not unusual for customers to buy new Landcruiser tyres only to find the rubber touching the trailer chassis. In this case, the solution is to buy a new axle.
Critical Measurements
- Distance between rubber and chassis
- Rim offset
Available six stud hub P.C.D.’s
- SL and LM Toyota Landcruiser (6 x 139.7mm PCD 1/2 studs) (5 x 150mm 9/16″ studs)
- LM and SL Nissan (6 x 114.3mm PCD 1/2 studs)
- LM and SL Diahatsu Rocky (5 x 139.7mm 1/2″ Studs)
- Parallel Toyota Land cruiser (5 x 150mm PCD 9/16″ studs) (5 x 150mm 9/16″ studs)
- Parallel Toyota Land cruiser (6 x 139.7mm PCD 1/2″ studs) (6 x 139.7mm 1/2″ studs)
We recommend NSK Japanese bearings for high-speed highway use and longevity. Check your bearings yearly for water ingress or black carbon deposits in your grease. Carbon black means bearing wear, so they will need replacing. The carbon black comes from wear on the bearing’s casing.
Wheel bearings are sold separately below.
Ford Japanese Caravan Bearing Kit
- Inner ID 35.00mm, OD 59.10mm (68149)
- Outer ID 22.00mm, OD 45.20mm (12749)
- Seal ID 43.9mm, OD 59.10mm (492015)
- Grease Cap 45.20mm (CM497)
Our full list of AL-KO 190mm Hubs below
Additional information
Weight | 3.6 kg |
---|---|
Dimensions | 20 × 20 × 10 cm |
Stud Pattern | Daihatsu Rocky, Jeep Cherokee / Wrangler, 2t Landcruiser 5 Stud – Al-ko, 2t Landcruiser 6 Stud – Al-ko, 3t Landcruiser 5 stud, 3t Landcruiser 6 stud, 5 Stud Landcruiser – Parallel, 5 Stud Landcruiser, 5 Stud Landcruiser 150mm PCD – M14 Studs – Parallel, 5 Stud Landcruiser Galvanised, 6 Stud Landcruiser – Parallel, 6 Stud Landcruiser Galvanised, Land Cruiser 6S, Land Cruiser, 5s Landcruiser (5 x 150mm), 5S Landcruiser – 5 x 14mm Studs, Nissan – 6 x 1/2 UNF Studs, Land Rover – 5 x 9/16 Studs, 5 Stud Landrover Discovery 5/8, 5 Stud Landrover Defender |
Bearing Profile |
