Holden Swing Away Hub
Price
$70.00 Inc.GST
- Rear-mounted 4WD and 4×4 spare wheel carrier
- Swingaway design clears the rear door area
- Hub with LM/Holden bearings
- K1040 Australian steel hub construction
- Includes NSK bearing cones, dust caps and seals
Shipping
Holden Swing Away Hub
The Couplemate™ Swingaway Spare Wheel Carrier is a rear-mounted spare wheel carrier for 4WD and 4×4 vehicles. Its swingaway design moves the spare wheel clear of the rear door area for loading and unloading.
Product specifications
- 39 mm round stub
- LM/Holden bearing profile
- Hub manufactured from K1040 Australian steel
- 0.02 mm clearance between hub and stub; grease before insertion
- Includes NSK inner and outer bearing cones, Australian-made dust caps and seals
- Available with 250 mm stubs or without stub axles
39 mm Round Stub Holden bearing dimensions
Couplemate™ manufactures Swing Away Hubs from K1040, a high-grade Australian steel. This is the same grade of steel used for stub axles, as seen in the 4WD Swing Away Rear Kits, which ensures a sturdy and quality product.
The Flangeless Hub is manufactured to suit the following bearing profiles:
- LM/Holden Bearings – Light Duty Holder
- SL/Ford Bearings – Medium Duty Holder
- PLL Bearings – Heavy Duty Holder
The kits contain NSK-branded inner and outer bearing cones, our Australian-made dust caps, and seals.
Use tapered roller bearings on trailer and caravan axles as they handle a variety of awkward weights (such as spare wheels, jerry cans, trailer lifts, etc.).
Replace the 4WD swing-away spare wheel carrier if the weight exceeds the bearing limitations. This results in assembly collapse, and if so, replace it with the non-bearing type carrier.
Couplemate™ recommends either the 45mm Slimline or 45mm Parallel model because the fulcrum effect on the rear bar adds load.

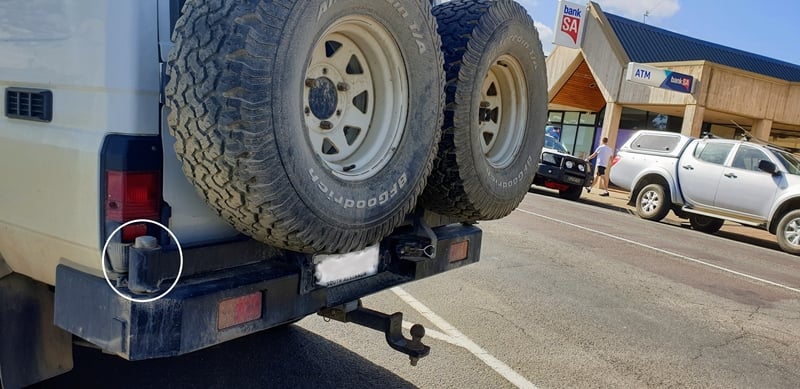

Image 1. The circled area shows a swingaway used as a Spare Wheel Carrier.
Installation Note
The hub already has bearing cups machined in. Do not insert new cups into the hub if you are replacing the bearings for any reason.
Purchase more spare wheel carriers here
- Spare Wheel LM Hub Rescue Kit
- Spare Wheel Slimline Hub Rescue Kit
- Caravan and Boat Rear Wheel Carrier
- Galvanised Spare Wheel, Carrier Rescue Kit
- 45mm Round Spare Wheel Carrier – Parallel
- Ford Swing Away Hub
- Parallel Swing Away Hub
Use these essential quick-reference guidelines and FAQs to ensure a smooth installation and long-lasting performance for your Holden Swing Away Hub.
Frequently Asked Questions
- What type of bearing does this hub use? It uses standard Holden LM series bearings, which are readily available and easy to service.
- Does it come pre-greased? No, hubs generally come with a storage oil coating and require thorough packing with high-quality wheel bearing grease before installation.
- Is this suitable for marine trailers? Yes, but use a high-quality marine seal and bearing protectors (like Bearing Buddies) to keep water out.
The Do’s & Don’ts
DO:
- Pack bearings completely with marine or high-temperature grease.
- Regularly check the pivot pin and swing latch mechanism for wear.
- Torque the wheel nuts to manufacturer specifications after the first 50km.
DON’T:
- Do not use an impact wrench to tighten the central axle castle nut.
- Do not submerge the hub in water while it is still hot from driving.
- Do not exceed the rated load capacity of your specific trailer axle setup.
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 15 × 6 × 6 cm |
| Application | 4WD Vehicles |
| Brand | Couplemate |
| Materials | K1045 Steel |
| Bearing Profile | |
| Beam Size | 39mm Round |
| NSK Bearing # | 11949/10, 67048/10 |
