50mm Drop Towbar Hitch Kit – No Ball
Price
$110.00 Inc.GST
- CTA: CTA-060477
- Can it be inverted: Yes
- Long-Lasting Product: Will withstand harsh towing conditions.
- Ideal for Off-road Use
Shipping

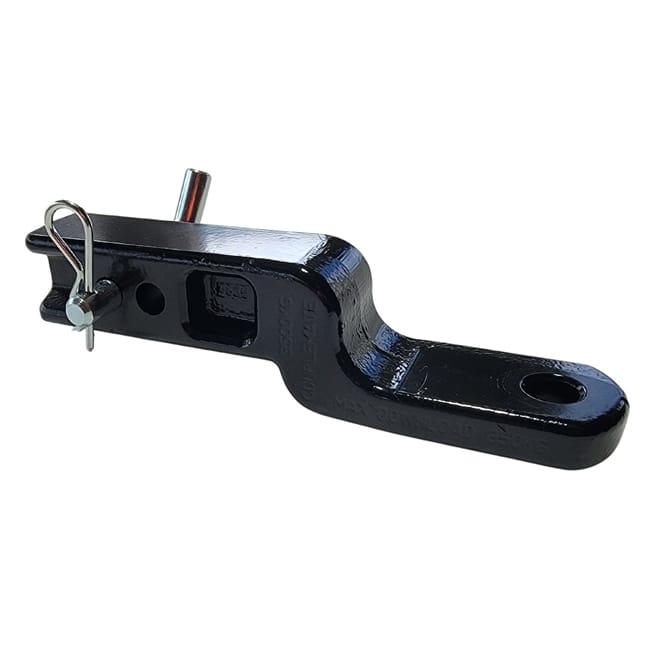

50mm Drop Towbar Receiver Hitch Kit 3.5t – No Towball
Summary: A heavy-duty, Australian-made, solid cast iron towbar receiver hitch kit designed to safely lower or raise your connection height. This hitch has no towball, making it the perfect choice for installing a Cruisemaster DO35, AL-KO, or similar off-road towing pin without buying unnecessary parts.
Purchase & Product Links
Product Description
Improve the connection strength between your trailer and tow vehicle with the Couplemate™ heavy-duty trailer receiver. Unlike standard fabricated and welded tow hitches that use hollow tubing, this premium product is manufactured from solid cast iron. Over time, cast steel products prove far superior to fabricated/welded alternatives for heavy highway use and rugged outback touring.
Why Choose Cast Steel Over Welded Hitches?
Welded tow ball hitch mounts and hollow receivers are prone to distorting under off-road conditions and during intense shock loading on the highway. When inverted to gain extra height, hollow hitches are significantly more likely to deform. Under extreme stress loads, fabricated products have even been known to crack or break directly along the welded components.
The Couplemate™ cast hitch has no fabricated welds to crack, making it perfectly suited to harsh Australian off-road conditions. Even when fully inverted to gain extra height, this cast hitch reliably maintains its full 3,500kg ATM rating.
Perfect for Off-Road Couplings
Couplemate™ highly recommends that all off-road couplings utilise a solid cast receiver hitch. This kit is ideally suited for popular systems, including:
- Cruisemaster DO35 Off-Road Coupling
- AL-KO Off-Road Ball Coupling
Australian Made Quality
The Couplemate™ Trailer Receivers are proudly among the very last trailer hitches on the market to be Australian-made. The receiver shanks are cast in Sydney, then precision-drilled and machined in our Brisbane warehouse, thereby directly supporting the Australian economy.
Key Features & Specifications
Key Benefits
- Maximum Strength: Delivers a stronger, stiffer connection between vehicle and trailer.
- Fully Reversible: Can be safely inverted to obtain an extra 19mm rise.
- Zero Welds: Single-piece solid cast iron avoids weld cracking and deformation.
- 100% Australian Made: Cast in Sydney and machined in Brisbane.
Technical Specifications
| Parameter | Specification Value |
|---|---|
| CTA Number | 060477 |
| Materials | Solid Cast Iron, High-Tensile Steel |
| Horizontal Loading Capacity (ATM) | 3500kg (3.5 Tonne) |
| Vertical Loading Capacity (Static Towball Weight) | 350kg |
| Shank/Hole Diameter | 22mm (7/8″) |
| Tow Ball Shank Length | 62mm |
| Tow Ball Torque Setting | 272Nm |
| Can it be inverted? | Yes (Retains full 3.5t rating) |
| Kit Components Included | Cast receiver bar, Class IV Receiver Hitch Pin, R-Clip (Note: Towball / pin coupling sold separately) |
Engineering Drawings
Frequently Asked Questions (FAQ)
What is a towbar receiver hitch?
A towbar receiver hitch slides directly into your vehicle’s square hitch assembly. It bridges the connection between your tow vehicle and your trailer coupling, usually via a tow ball or an articulated off-road tow pin.
Why does this kit not include a towball?
This kit excludes the towball specifically for owners who are upgrading to an off-road pin articulation system (like a Cruisemaster DO35) or those who wish to reuse their existing, compliant 50mm towball. This saves you from paying for a component you do not need.
Can I invert this hitch to use it as a rise mount?
Yes. Because the Couplemate™ hitch is manufactured from solid cast iron rather than a hollow tube, it can be safely inverted to gain extra clearance height while still retaining its full 3,500kg ATM rating.
How do I know if this hitch matches my vehicle’s capacity?
Hitches are rated for various maximum weights. Always ensure your total trailer weight does not exceed the lowest-rated component of your towing setup. If your vehicle or towbar has a 3.5t rating, your hitch must also match or exceed a 3.5t rating.
There are no FAQs for this product.
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 40 × 20 × 10 cm |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
