50mm Anti-Rattle Tow Ball Receiver Kit
Price
$133.50 Inc.GST
Shop the Strong & Silent Tow Hitch Kit.
✓ Suits maximum 3500kg (3.5t) ATM.
✓ Guarantees a secure towing connection.
✓ Minimises any annoying tow bar rattle noise.
This product can be safely used inverted (upside-down) for a 50mm rise.
Shipping
50mm Anti-Rattle Tow Ball Receiver Kit for 3.5t ATM | Standard (50mm Drop)
Tow ball hitches are the key link between your vehicle and your trailer or caravan. There’s nothing more dangerous than a poor-quality or loose tow bar tongue.
A strong and sturdy link is therefore essential to maintain your safety, your family’s safety, and the safety of other Australians. You know how rough our roads are if you’ve ever travelled along the Bruce Highway, the Great Ocean Road, or even the Oodnadatta Track.
Moreover, if you’ve ever driven with a loose tongue, you may know what tow bar rattle sounds like. (And know how quickly it becomes annoying).
Couplemate™ designed this 50mm Anti-Rattle Tow Ball Receiver Kit to provide the utmost in:
- Security: The cast receiver is fully ADR compliant and has been tested by Queensland engineers.
- Safety: All components are made from high-quality materials and built with quality workmanship.
- Sanity: Custom-fit shims target problem areas in your tow bar that can cause looseness.

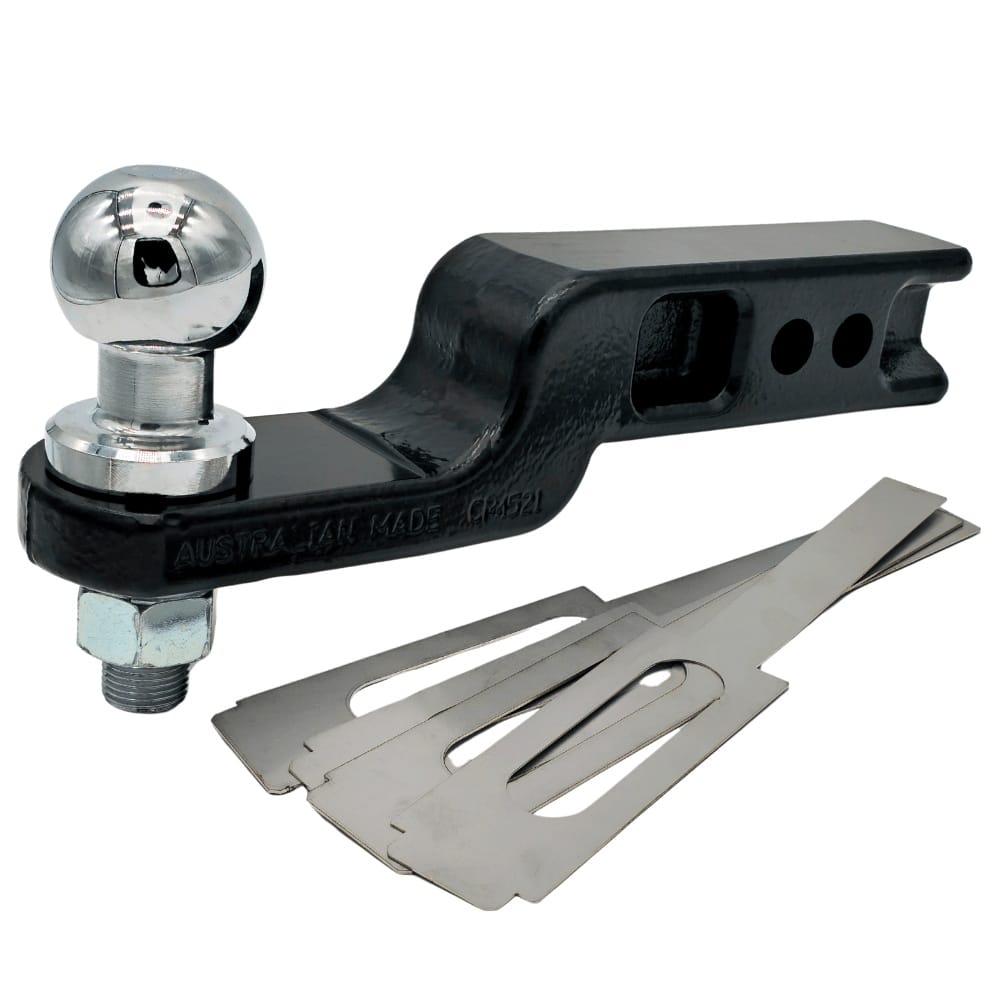

Included in the 50mm Anti-Rattle Tow Ball Receiver Kit
- 1 x 50mm Chrome Tow Ball (pre-torqued)
- 1 x 3.5t 50mm Drop Hitch Receiver
- 2 x Stainless Steel Shims (0.5mm)
- 2 x Stainless Steel Shims (0.9mm)
- 1 x Class IV Retaining Pin and R-Clip
Hole Size: 22.4mm, will suit a 7/8 shank tow ball
The 100mm drop/rise hitch is available here.
What Makes the Tow Ball Hitch Strong? Why is it Better than Others?
Each 50mm Anti-Rattle Tow Ball Receiver Kit includes a genuine Couplemate™ Receiver to suit standard Australian 3.5t tow balls (22mm shank).
The main benefit of Couplemate™ Receivers stems from their design and material composition: excellent cast from high-quality grey iron.
In our experience, welded or hollow receivers can distort and deform over time due to the towing environment. This process can be accelerated when inverted, as some tongues on the market are not designed to be used upside down. Therefore, the cast receiver design is superior, as it is excellent and manufactured as a single piece.
The Couplemate™ Receiver included in your 50mm Anti-Rattle Tow Ball Receiver Kit is the CM521, which has been:
- Developed, designed, and tested by Queensland Engineers.
- Manufactured and quality-checked by Australian workers.
- Widely accepted as the best hitch for standard 50mm vehicle tow bars.
What is Hitch Rattle? How Do You Stop It?
We’ve included a set of our CM256 Stainless Shims to create this Anti-Rattle Tow Ball Hitch Kit.
Rattle occurs when there is too much “free space” between components. For example, if you have a loose tow bar tongue, the rattling comes from the steel of your tow bar vibrating against your hitch receiver. The noise is often louder when there’s no load on your tow ball (i.e. no trailer attached).
You can effectively target any problem areas inside your tow bar (including the top, bottom, or sides) to minimise rattle.
See our YouTube video for a quick guide (great for visual learners):
We also have a handy written “How-To” guide here: Install Your Shims in 4 Steps.
Product FAQ: 50mm Anti-Rattle Tow Ball Receiver Kit (3.5t ATM | Standard 50mm Drop)
- Eliminates Noise: The built-in anti-rattle mechanism firmly secures the shank, stopping annoying clunking sounds while driving.
- High Towing Capacity: Engineered to handle a heavy 3.5-tonne (3,500kg) ATM, making it perfect for large caravans, boats, and horse floats.
- Level Towing Setup: The Standard 50mm drop lets you align your vehicle and trailer heights for safer highway handling.
- Reduced Wear & Tear: By reducing movement inside the hitch receiver, it extends the lifespan of both your tow bar and the hitch pin.
- Universal 50mm Fit: Built to match standard 50mm (2-inch) square hitch receivers widely used on most Australian 4WDs and Utes.
- Fixed Drop Height: The 50mm drop is static. If you switch between trailers of different heights, you might need an adjustable hitch instead.
- Tight Receiver Tolerances: Because it is an anti-rattle kit, it fits very snugly. It may take a bit more effort to slide into receivers with internal rust or heavy debris.
- Tightening Maintenance: You must periodically check and manually tighten the anti-rattle bolt or mechanism to ensure it continues to dampen vibrations effectively.
- Weight Limitations: While rated for 3.5t ATM, it cannot be used for extra-heavy commercial loads exceeding this specific weight limit.
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 40 × 20 × 10 cm |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
1 review for 50mm Anti-Rattle Tow Ball Receiver Kit
Only logged in customers who have purchased this product may leave a review.
Related products
-
22mm – 32mm Tow Ball Reducer Bush
$16.50 Inc.GST -
3.5t x 190mm Caravan Adjustable Tow Bar Hitch
$357.00 Inc.GST -
50mm Drop Towbar Hitch Kit – No Ball
$110.86 Inc.GST -
Tow Bar Hitch Kits 3.5t – 100mm Drop
$142.20 Inc.GST -
3.5t x 120mm Adjustable Tow Bar Hitch | Short
$324.50 Inc.GST -
50mm Reversible Towbar Hitch Kit
$127.25 Inc.GST
Chris Rundle –
Hi, What is the pin hole to tow ball hole measurement please ?
Stephen Wotherspoon –
Hello Chris, the answer is 184.6mm
