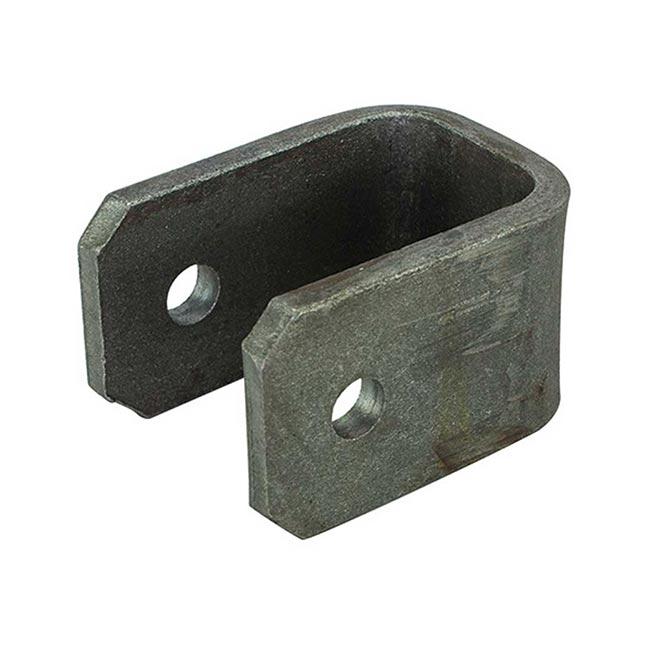

60mm AL-KO Rocker Roller Front or Rear Spring Hanger
60mm AL-KO Rocker Roller replacement rocker roller spring hanger.
Specifications
- Thickness: 10mm
- Hole size: 16mm
Similar 60mm Hangers Below
- Rocker Roller front spring hanger
- Rocker roller centre hanger
- Standard tandem front or rear spring hanger
- Standard tandem centre hanger
- GNS centre hanger
- Outback front spring hanger
- Outback dumbjack
- Slipper Front Hanger
- Slipper Rear Keeper
- Slipper Centre hanger
How do I correctly position front and rear hangers?
Rocker Roller
- Install the centre hanger.
- Bolt the rocker arm onto the centre hanger.
- Bolt the front and rear hangers onto the springs.
- Stretch the rear spring as far as it will go, install a G Clamp, and then tack it.
- Repeat for the front spring.
- The springs are now correctly installed, and the welding is finished.
Outback Springs
The spring length is 841mm. Weld the eye-to-eye spring hangers @ 876mm.
Purchase associated parts here.
- Centre rocker arm
- Centre rocker arm shackle pin
- Complete rocker roller hanger kit
- Complete standard tandem hanger kit
Additional information
Weight | 4 kg |
---|---|
Dimensions | 12 × 10 × 10 cm |
Bolt Diameter | 16mm |
Materials | Steel |
