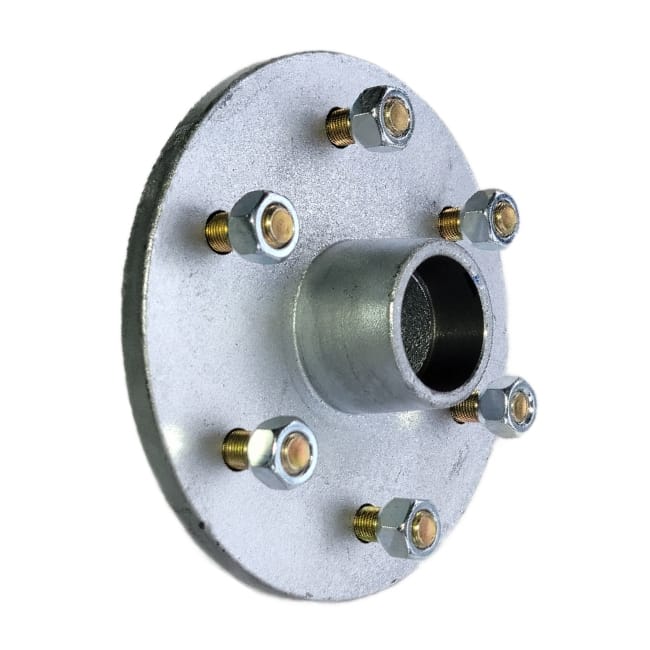

6 Stud Land Cruiser ElectroGal Slimline Hub

Name: 6 Stud Landcruiser ElectroGal Slimline Hub with Wheel Nuts
Brand: Couplemate
SKU: HUB-SL-6S-eGal-BT
Price: $48.00
Availability: InStock

SKU: HUB-SL-6S-eGal-BT Category: Hubs - Unbraked Tags: Galvanised Hubs, marine parts Brand: Couplemate

Al-Ko 6 Stud Landcruiser Galvanised Slimline Hub

Price

$48.00 Inc.GST

Shipping

Select delivery location

6 Stud Land Cruiser ElectroGal Slimline Hub – with 1/2-inch studs | Suits Slimline Bearings

The 6-stud Land Cruiser electrogal hub configuration is used on 14- to 16-inch wheels and is compatible with a variety of NSK Japanese bearing kits.

Note: When installing 15″ or 16″ wheels on 39mm Round Axles, derate the hub bearing rating by 20%.

Supplied with 1/2-inch Studs and Nuts

Critical Measurements

Distance between rubber and chassis
Rim offset
Available six-stud hub PCD’s

Hub & Bolt Pattern Compatibility (PCD)

Fitment Type	Vehicle / Model	Pattern Specification
SL and LM	Toyota Landcruiser	6 x 139.7mm PCD (1/2″ studs)
SL and LM	Toyota Landcruiser	5 x 150mm PCD (9/16″ studs)
LM and SL	Nissan	6 x 114.3mm PCD (1/2″ studs)
LM and SL	Daihatsu Rocky	5 x 139.7mm PCD (1/2″ studs)
Parallel	Toyota Landcruiser	5 x 150mm PCD (9/16″ studs)
Parallel	Toyota Landcruiser	6 x 139.7mm PCD (1/2″ studs)

Maintenance & Bearing Advice

We recommend NSK Japanese bearings for high-speed highway use and longevity.

Check your bearings yearly for water ingress or black carbon deposits in your grease. Carbon black means bearing wear, so they will need replacing. The carbon black comes from wear on the bearing’s casing. Wheel bearings are sold separately below.

Ford Japanese Caravan Bearing Kit

Pre-Installation & Safety Checklist

Axle Bearing Check: Confirm your axle journals precisely match the Slimline bearing dimensions (34.9mm Inner / 22mm Outer).
PCD & Stud Count Match: Verify the pitch circle diameter (PCD) matches your specific LandCruiser, Jeep, or F-Series rim.
Stud Sizing Verification: Confirm if your rims require the M12 thread pitch or the thicker 14mm heavy-truck upgrade.
Bearing Lubrication: Ensure the included bearings are packed thoroughly with high-temperature marine or automotive grease before final assembly.
Nut Torque Sequence: Always tighten the included wheel nuts in a star pattern to standard factory torque, then re-check after the first 50–100 km.

Frequently Asked Questions (FAQ)

Q: What is a “lazy” hub exactly?

A: A lazy hub is a non-braked trailer hub. It is used strictly to allow smooth wheel rotation without any internal brake drums or disc rotors, typically suited for unbraked trailers under 750 kg ATM or as the unbraked middle axle on multi-axle setups.

Q: How do I know if I need M12 or 14mm wheel studs?

A: You should check the lug holes on your wheel rims and matching specifications. M12 is common on standard passenger/light trailer configurations, whereas 14mm studs are common upgrades for heavy-duty 4×4 Land Cruiser and American F100/F150 wheels that encounter demanding structural loads.

Q: Does the hub come ready to bolt on?

A: The structural bearing cups are pre-pressed into the hub geometry for your convenience. However, you will need to apply bearing grease to the loose rollers, slide the seal in place, and mount it onto your axle spindle.

Additional information

Weight	3.6 kg
Dimensions	20 × 20 × 10 cm
Stud Pattern	2t Landcruiser 5 Stud, 2t Landcruiser 6 Stud, 3t Landcruiser 5 stud, 3t Landcruiser 6 stud, 5 Stud Landcruiser – 9/16" Studs, 5 Stud Landcruiser – Parallel, 5 Stud Landcruiser 150mm PCD – M14 Studs – Parallel, 5 Stud Landcruiser Galvanised – 9/16" Studs, 5 Stud Landrover Defender, 5 Stud Landrover Discovery 5/8, 5S Landcruiser – 5 x 14mm Studs, 5S Landcruiser (5 x 150mm), 6 Stud Landcruiser – Parallel, 6 Stud Landcruiser Galvanised, 6S Land Cruiser, Daihatsu Rocky, Jeep Cherokee / Wrangler, Land Cruiser – M12, Land Rover – 5 x 9/16 Studs, Nissan – 6 x 1/2 UNF Studs
Bearing Profile	Slimline (SL), Parallel (PLL), Holden (LM)
Brand	AL-KO
