70mm Tow Ball Drop Tow Hitch

SKU: N/A Category: Towbar Hitch Receivers Tags: Australian Made, Couplemate™ Core, CTA Certified, Hayman Reese, huntsman, mister hitches, Tag Brand: Couplemate

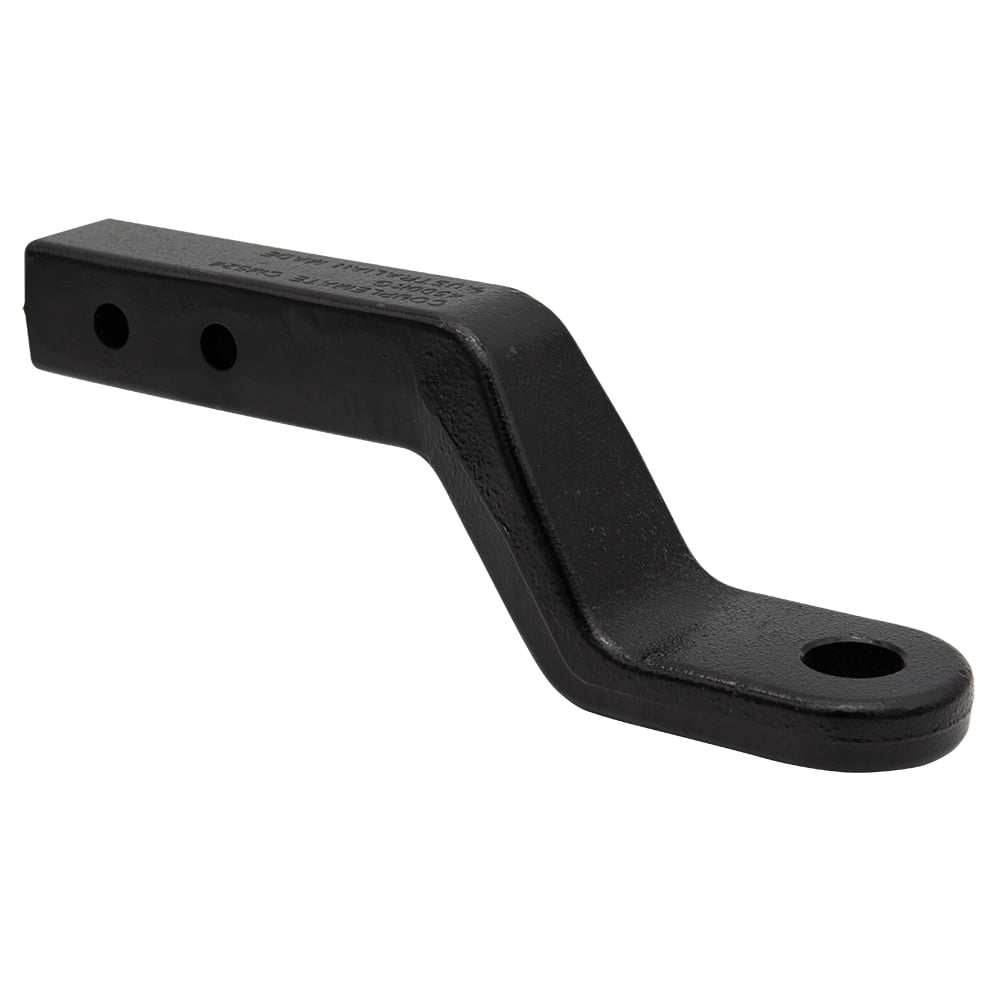

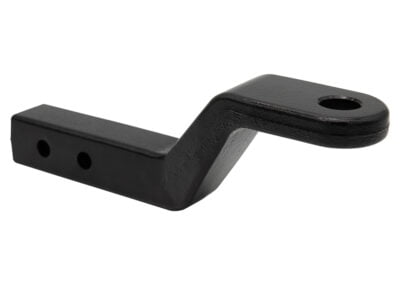

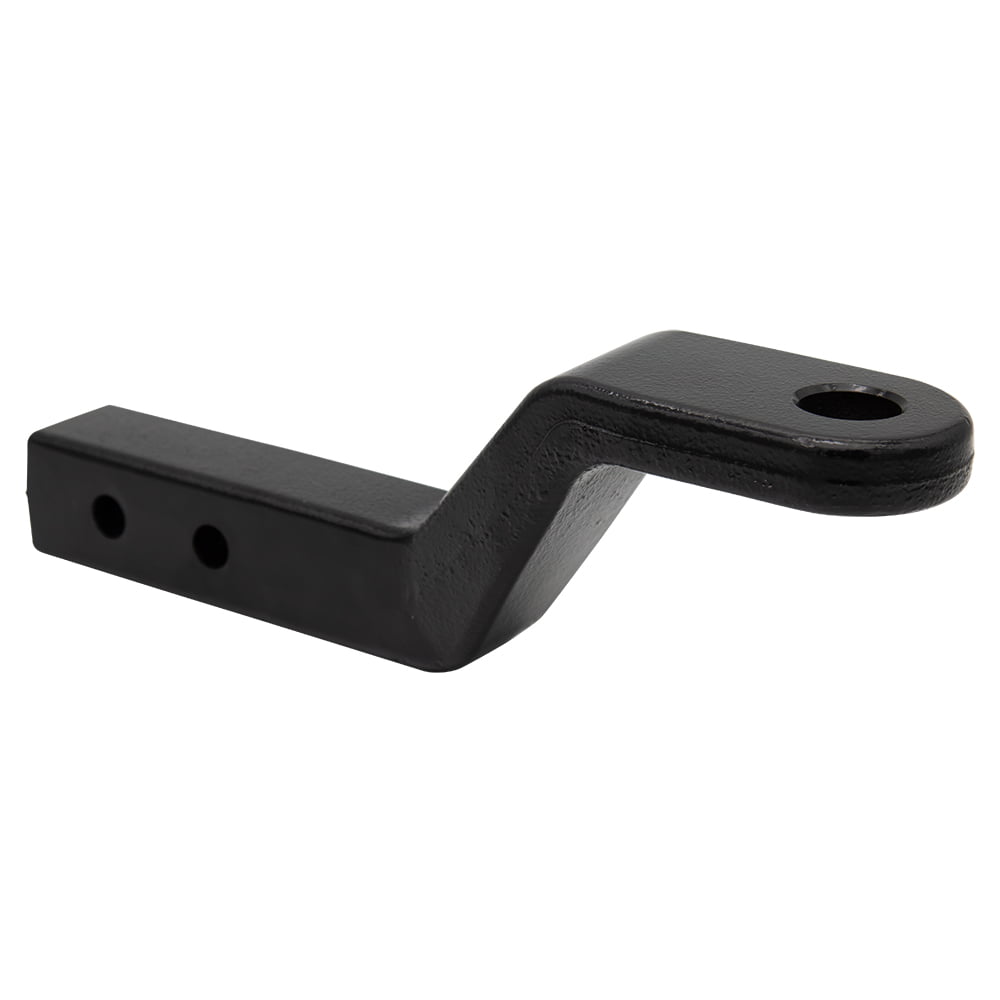

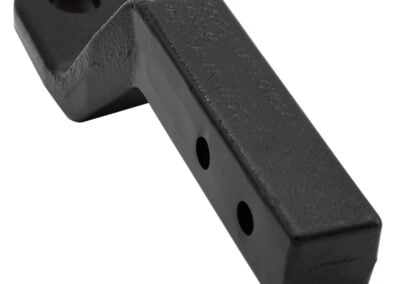

70Mm Tow Ball Drop Tow Hitch Receiver

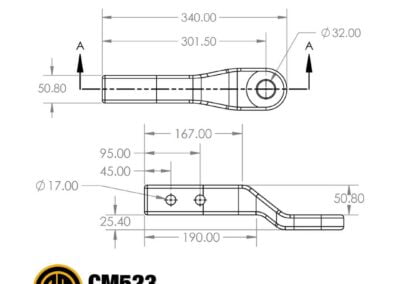

CM523 Engineering Drawing

CM524 Engineering Drawing

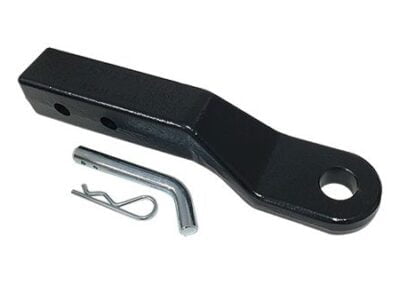

4.5t Tow Ball Tow Hitch Receiver

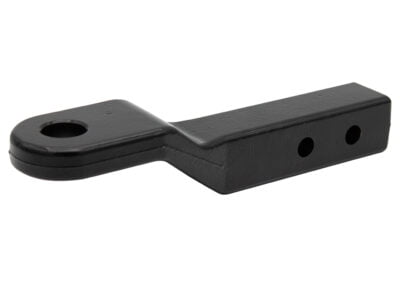

CM523 Safely Inverted Tow Hitch for 70mm Tow Ball 4500kg

Price

Price range: $124.80 through $145.00 Inc.GST

Drop Height

Clear

What are the Benefits of the 70mm Tow Ball Hitch?

✓ Engineered in Australia
✓ Solid cast so it can be safely inverted.
✓ Genuine Couplemate™ Product

Designed and manufactured by Couplemate™ Australia.

Shipping

Select delivery location

70mm Tow Ball Tow Hitch Receiver | 4500kg

A tow bar receiver hitch kit is a set of components that allows you to attach your trailer or caravan to your tow vehicle.

Couplemate™ 70mm Tow Ball Tow Hitch Receivers are made from Solid Cast Iron. Because of their robust material, Genuine Couplemate™ trailer hitches guarantee a strong connection between your trailer and tow vehicle.

Over time, cast steel products are superior to fabricated/welded products. Welded ball mounts and hollow receivers can distort under off-road conditions and during highway shock-loading events. When inverted, hollow hitches are more susceptible to deformation.

For added versatility, it can also be used with the Cruisemaster DO45 tow pin.

You can trust the quality and durability of our 70mm receiver hitches, which are expertly cast, machined, and tested right here in Australia.

2-inch drop and 4-inch Drop 70mm Towbar Receiver Product Specifications

Material: Cast Ductile Iron (500/7)
Maximum Capacity: 4.5t
Shank hole: 32mm
Does not come with a 70mm tow ball.

This product also suits the shank size for 2 5/16″ Tow Balls (American size).

How can I insert a 50mm tow ball?

Towing Disaster: 4.5t on a 3.5t Receiver

You can use a Tow Ball Reducer Bush to take a 4.5t receiver to a 3t receiver. However, you cannot go the opposite way.

The right image shows a well-known heavy-duty tow ball mount or tow bar tongue rated at 3.5t.

However, a welder has used an oxy torch to enlarge the hole size to 32mm to fit a 4.5t tow ball.

The image on the right is a well-known heavy-duty tow ball mount or towbar tongue.

Review Related Products

❓ Why do I need a 70mm Tow Ball Drop Tow Hitch?

This specialized hitch is designed for lifted 4WDs or tall tow vehicles pulling heavy-duty trailers equipped with a 70mm coupling. It drops the hitch point by 70mm to achieve a perfectly level tow rig, which is essential for highway safety, legal compliance, and stable weight distribution.

✔️ What are the core advantages?

Eliminates Trailer Sway
By leveling your heavy caravan or commercial trailer, you balance the load across all axles, keeping your rig locked in straight at highway speeds.
Massive 4.5T Capacity
Engineered specifically to accommodate 70mm tow balls, making it perfect for supreme loads (3.5 tonnes to 4.5 tonnes) that standard 50mm hitches cannot safely handle.
Optimized Braking Performance
Ensures even weight distribution onto the tow vehicle’s chassis, maximizing the efficiency of your trailer’s electric or hydraulic braking systems.
Prevents Tyre Scrubbing
Keeps the trailer tyres running flat on the pavement, eliminating uneven shoulder wear and extending the lifespan of your trailer tyres.

❌ What are the disadvantages to consider?

Reduced Departure Angles
The 70mm physical drop sits closer to the ground, increasing the likelihood of scraping on steep driveways, boat ramps, or rough off-road tracks.
Increased Leverage Stress
The extended drop acts as a longer lever against your vehicle’s hitch receiver. Always verify your vehicle manufacturer’s maximum allowed hitch leverage/tongue weight limits.
Cumbersome Weight
Forged from solid high-tensile steel to hit heavy weight ratings, this unit is physically heavy and can be awkward to slip in and out of the receiver.
Fixed Height Restrictions
If you regularly tow multiple trailers of different heights, a fixed-drop hitch lacks the flexibility of an adjustable multi-drop system.

❓ Can this hitch be inverted to act as a rise?

While many drop shanks can be turned upside down to create a 70mm rise, you must explicitly check the product specifications. Some heavy-duty 70mm hitches are strict “Drop Only” rated due to the directional load forces on the gusset welding.

Additional information

Weight	7 kg
Dimensions	40 × 20 × 10 cm
Drop Height	100mm, 50mm
