Trailer Brake Cable Kit

Name: Trailer Brake Cable Kit - suit Caravan Electric or Overrides
Brand: Couplemate
SKU: CABLE-KIT
Price: 42.50 AUD
Availability: InStock

SKU: CABLE-KIT Category: Couplings and Parts Tags: adventura, cable kit, discovery, expander, silverline, starcraft, stirling Brand: Couplemate

Price

$42.50 Inc.GST

Shipping

Select delivery location

Galvanised Trailer Brake Cable Kit

The galvanised trailer brake cable kit is suitable for installing:

electric brake park brake levers;
mechanical-override drum brakes; and
mechanical-override disc brake calipers.

Trailer Brake Cable Kit Specifications

Cable Coating: Galvanised
Cable Adjuster Coating: Zinc
Cable Length: 10 metres

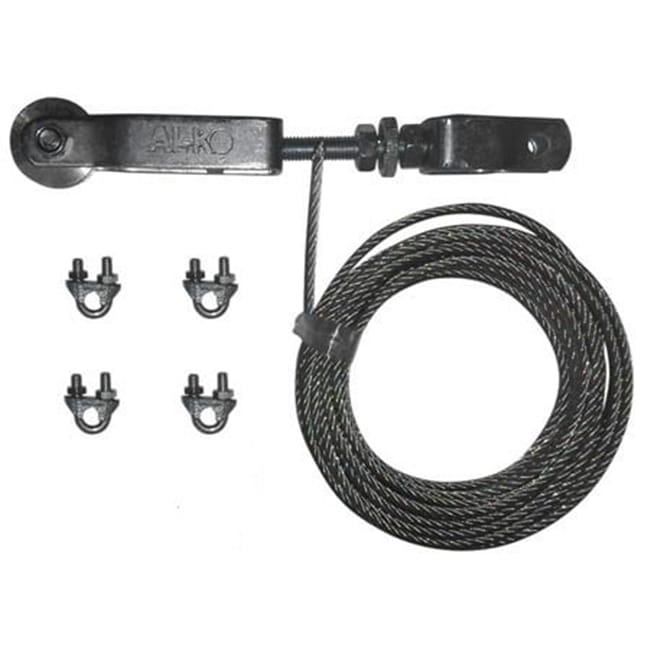

Kit Contents:10 meters of one cable, four wire rope grips and one cable brake adjuster

Do not use the cable brake adjuster to adjust your brakes.

The trailer cable brake adjuster removes the slack from the cable. The brake adjuster is inside the electric backing plate or on the back of the caliper arm.

Regular Trailers vs Boat Trailers

Disc calipers on boat trailers have an adjusting bolt on the back of body: under the caliper arm.

Tightening Instructions: Cable Kit Adjuster

First, adjust the nut until the pads are hard against the rotor, and the rotor is immovable.
Then back the nut off 1/2 turn.
Adjust the cable until tight using the cable adjuster. Do not over-tighten.

Complete Range of Park Brakes

🔧 Brake Cable Kit: Installation Do’s & Don’ts

✅ The Do’s

Measure carefully: Match your old inner cable and outer housing lengths exactly before cutting.
Use proper tools: Cut housing cleanly with dedicated cable cutters to prevent fraying.
Install end caps: Always crimp the included metal ferrule tips to protect cable ends.
Check tension: Perform a stationary brake test before driving.

❌ The Don’ts

Don’t reuse: Never use old, frayed inner wires with new outer housings.
Don’t over-lubricate: Avoid heavy grease if your kit features pre-lubricated slick liners.
Don’t kink lines: Avoid sharp structural bends when routing the housing along the bike frame.
Don’t overtighten: Stop tightening the clamp bolt once the inner core is firmly locked to avoid crushing threads.

Additional information

Weight	1 kg
Dimensions	25 × 25 × 5 cm
