45mm Galvanised Offset Shackle Spring – 710mm

Part No: N/A Category: Tag:

$91.00$222.00

You May Also Require

45mm Shackle Spring Hanger Kit - Tandem

✓ Includes everything you need to mount four shackle springs.
✓ Provides a clean slate for Roadworthy or safety certificates.
✓ Only features high-quality components for road safety.

Supplied by Couplemateâ„¢ Australia.

Couplemate accepts PayPal, Visa and Mastercard.

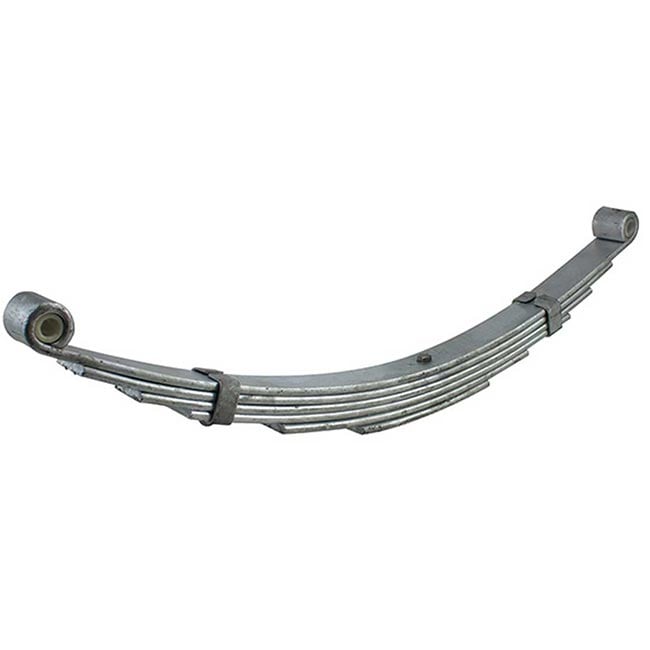

45mm Galvanised Offset Shackle Spring – 710mm

45mm x 710mm Shackle Offset Galvanised Spring. The offset is 50mm off-centre to enable the axles to be closer on tandem trailers for 14-inch or 16-inch wheels.

This gap can be closed by 50mm to 100mm by turning the spring 180 degrees. Ideal for closing the gap between the tyres on tandem trailer setups. Install hangers 25mm longer than the springs.

Product Specifications


  • Width: 45mm
  • Length: 710mm
  • Leaf Thickness: 8mm
  • Offset: 300mm/410mm
  • Free Camber: 105mm
  • Spring Bolt Holes: 9/16″
  • Leaf Ratings (per spring):
    • 4 Leaf = 550kg
    • 5 Leaf = 650kg
    • 6 Leaf = 750kg
    • 8 Leaf = 850kg

N.B. This spring is galvanised and features polyurethane (non-greasable) bushes.

Additional information

WeightN/A
Dimensions93 × 15 × 10 cm
Spring Leaf #

4 Leaf, 5 Leaf, 6 Leaf, 8 Leaf

Spring Length

710mm

Spring Width

45mm Wide

Spring Type

Shackle
