75mm Round Galvanised U-Bolt

Description

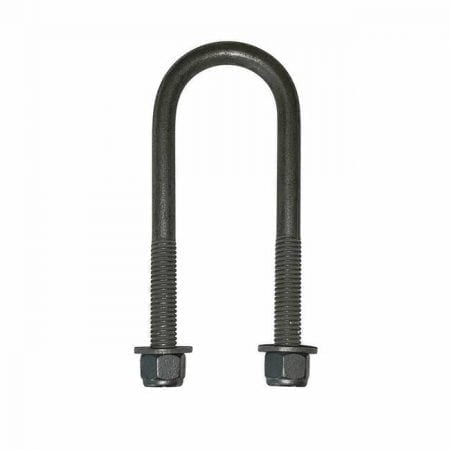

75mm Round Galvanised U Bolt

75mm Round Galvanised U Bolt by Couplemate. Available Sizes 125mm, 150mm and 175mm.

U-bolt kit includes rolled threads with gal flat washer and gal nylock. The thread length is 50mm.

How do I calculate or measure the correct length?

• Spring width plus
• Axle Pad 8mm plus
• Axle width plus
• Nyloc plus

News Articles

• Read why u-bolts could be the primary cause of accidents.
• This article is the catastrophic result of the incorrect tightening of u-bolt on a truck chassis.

How to Measure U bolts (example)

You must retighten u-bolts approx 200lkms after installation due to steels ability to stretch a little under load.

Furthermore, we stress-tested these u-bolts during manufacture and batch test until destruction.

Destruction loads exceed 17,000kg for 1/2 inch galvanised u-bolts.

Finally, our u-bolts are derated to 375kg each or 1500kg per set of 4 or enough u-bolts to suit a single axle.

The max rating of 750kg axles is 750kg with ubolt rating @ 1500kg.

Vibration fatigue can loosen mild steel u-bolts if not re-tightened after 300 km. Excellent article on vibration fatigue here.

Galvanised u-bolt clamp kits are listed below

• 50mm Square Galvanised Ubolt Clamp Kit
• 56mm Galvanised UBolt Clamp Kit
• 75mm Galvanised U bolt Clamp Kit
• 100mm Galvanised U bolt Clamp Kit

U Bolt incl Gal Nylocks and Washers

Couplemate Trailer Parts sells only the best quality 75mm Round Galvanised U-Bolt and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.
