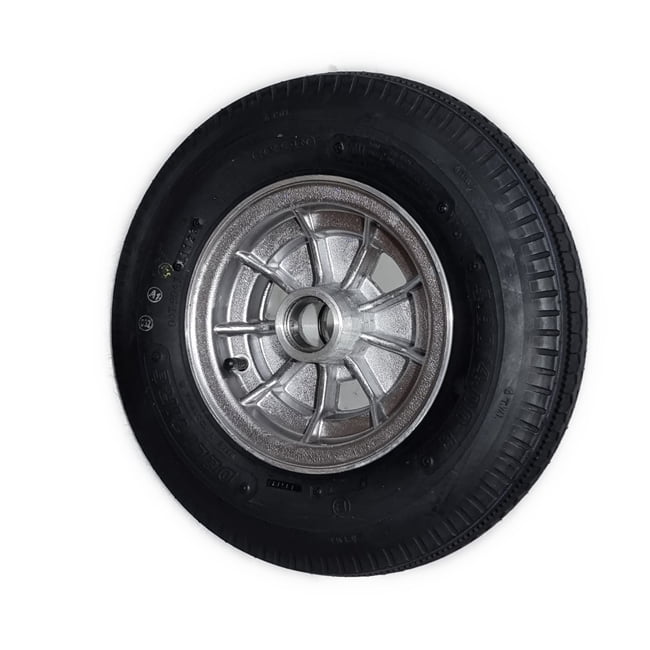

10-Inch Integral Rim and Tyre

10-Inch Integral Rim and Tyre

The 10-inch integral rim and tyre require either Holden Standard or Ford Slimline Bearing.

Holden Bearings are rated to a maximum of 1000kg

Ford bearings are rated to a maximum of 1450kg

The diameter of this wheel is 50cm and it has a maximum load of 500kg.

Bearing Kits

LM Holden | Standard

• Inner ID 31.75mm, OD 59.10mm (67048)
• Outer ID 19.05mm, OD 45.20mm (11949)
• Bearing Seal ID 37.5mm, OD 59.10mm (491015)
• Grease Cap 45.20mm (CM497)

LM Holden | Standard Marine

• Inner ID 31.75mm, OD 59.10mm (67048)
• Outer ID 19.05mm, OD 45.20mm (11949)
• Bearing Seal ID 37.5mm, OD 59.10mm (492020)
• Grease Cap 45.20mm (CM497)

Ford Slimline Kit

• Inner ID 35.00mm, OD 59.10mm (68149)
• Outer ID 22.00mm, OD 45.20mm (12749)
• Seal ID 43.9mm, OD 59.10mm (492015)
• Grease Cap 45.20mm (CM497)

Ford Slimline Marine Kit

• Inner ID 35.00mm, OD 59.10mm (68149)
• Outer ID 22.00mm, OD 45.20mm (12749)
• Seal ID 43.9mm, OD 59.10mm (492015)
• Grease Cap 45.20mm (CM497)
