Ford Slimline Seal
Ford metal grease seal suits 45mm round, 45mm square and all trailer axles with slimline or parallel bearing profiles.
To summarise the video, apply grease to the seal journal before insertion. The seal's rubber lip must first be lubricated to prevent friction from burning the rubber and, therefore, premature wear.
43.9mm ID, 59.10mm OD
Grease seals form part of a wheel bearing kit and require care during insertion into the hub. On some seals, a small spring is inserted under the seal's lip.
Be careful not to dislodge this spring from under the lip.
Bearings are often destroyed by this spring when it inadvertently becomes dislodged. Careful smear a small amount of grease on the axle profile before inserting the hub over the axle.
Always use seals with metal outer. Rubber seals can be more difficult to insert into the hub.
Find other seals here:
- Holden Standard Seal LM
- Marine Seal LM
- Slimline - Parallel Marine SL Seal
- 1.5t Caravan Seal
- 1.6t Dexter Seal
- Simplicity Seal – A75 Series
- Trojan 2t Marine Seal
Finally, Couplemate only uses the highest quality trailer parts on all axle assemblies, including metal ring seals.

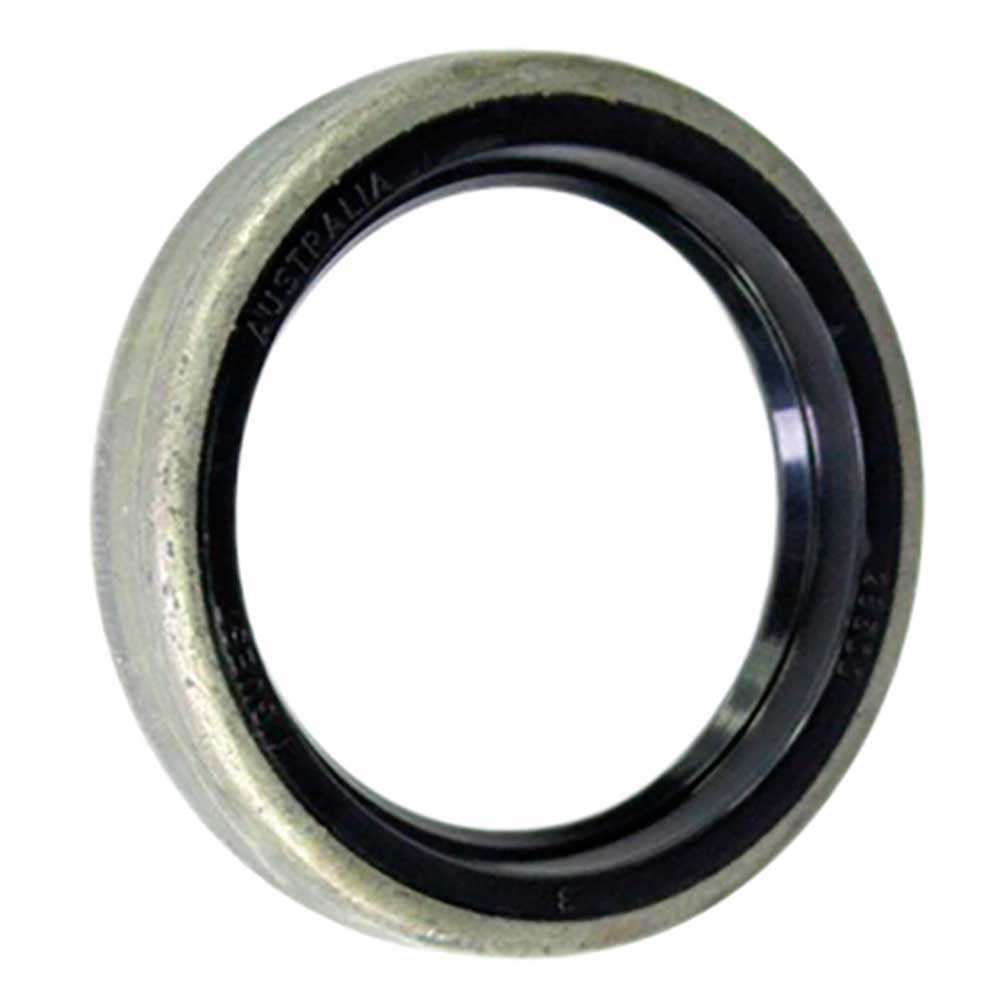

Ford Metal Grease Seal
|Dimensions||6 × 6 × 1 cm|
|Plain or Galvanised|
Plain K1045 Steel, Galvanised + $15.00
