50mm Square Overlay Axle Parallel

A 50mm square overlay axle parallel is made in Australia to your specifications.

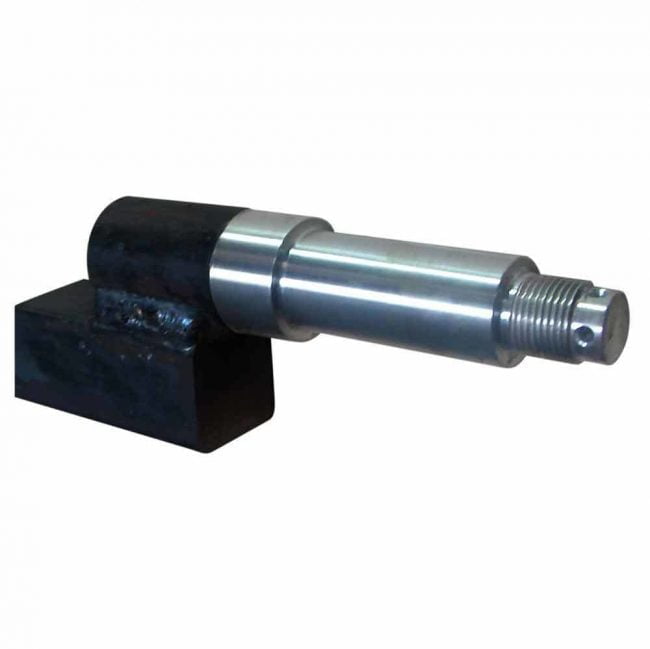

This axle type is manufactured from solid medium tensile steel, but the stub axles are welded on top of the main structural beam.

The centre of gravity, therefore, lowers the trailer height by an amount equal to the distance from the centre of the beam to the centre of the stub axle.

After ordering, we require the following information because we like it right the first time

  1. Wheel Backspace
  2. Outside to Outside Chassis width
  3. Pick-up is recommended; however, we can use your transport or give you a price for our carrier.

Calculating The Correct Axle Measurements

As a result of viewing the video above, calculate the face-to-face measurement.
  1. Measure the offset wheel. The wheel offset is the distance between the hub’s inside and the rubber’s outside.
  2. Add 50 mm to the offset. Alternatively, choose your distance between the rubber and the chassis.
  3. Multiply by 2 for both sides. Add your chassis width to the above number.
Still unsure of what measurements to take? Check out this handy guide below:

[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres

How To Measure An Axle

Identifying Bearing Combinations

You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing number.

Where to identify bearing number. Look for the laser engraved number on the bearing.

Learn how to calculate wheel backspace here

All our 45mm Square Overlay Axle PLLs are built identically with zero variation in camber.

Weld rings are essential to unbolt and reassemble your existing 10″ electric brake setup.

50mm Square overlays are almost standard on car trailers, horse floats and boat trailers. If you need a lower centre of gravity, a drop or overlay axle may be ideal.

Parallel axles are ideal for that extra capacity that you need from time to time.

More information from Alko.

Additional information

Weight90 kg
Dimensions240 × 60 × 60 cm
Tip to Tip Length

1450mm Long, 1475mm Long, 1500mm Long, 1525mm Long, 1550mm Long, 1575mm Long, 1600mm Long, 1625mm Long, 1650mm Long, 1675mm Long, 1700mm Long, 1725mm Long, 1750mm Long, 1775mm Long, 1800mm Long, 1825mm Long, 1850mm Long, 1875mm Long, 1900mm Long, 1925mm Long, 1950mm Long, 1975mm Long, 2000mm Long, 2025mm Long, 2050mm Long, 2075mm Long, 2100mm Long, 2125mm Long, 2150mm Long, 2175mm Long, 2200mm Long, 2225mm Long, 2250mm Long, 2275mm Long, 2300mm Long, 2325mm Long, 2350mm Long, 2375mm Long, 2400mm Long, 2425mm Long, 2450mm Long, 2475mm Long
