M16 Greaseable Shackle Bolt

M16 Greaseable Shackle Bolt

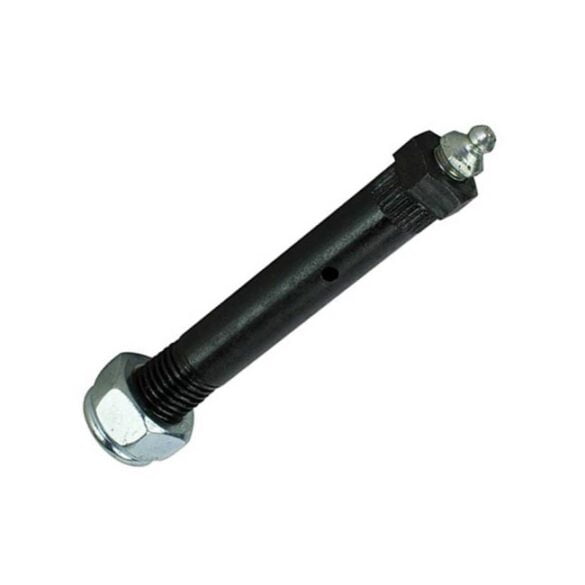

M16 greaseable shackle bolt suit steel bushes on rocker roller and outback spring suspension systems.

Suits 60mm rocker roller, tandem eye-to-eye or shackle springs.

How do I measure my shackle bolt?

Measure from the tip of the thread to the underside of the hex head.

16mm Worn Rocker Roller or Standard Tandem Hangers

There is no fix for worn hangers other than replacement.

The knurl under the head of a greaseable shackle bolt has a particular purpose. The knurl locks into the shackle plate to help prevent the bolt from spinning during spring compressions. Broken welds are a good sign the bolts need replacement.

The knurl is welded onto the shackle plate on the outback trailer springs to stop the bolt from turning. With a rotating bolt in the shackle plate, wear significantly increases.

News: How to Fix Dangerous Caravan Vibration Fatigue

How to tighten suspension bolts.

• Tighten the 16mm x 100mm greaseable shackle bolt until home.
• Back off 1/4 turn.
• You need a small space between your shackle plates and spring; otherwise, you will develop an annoying squeak.
• This squeak is due to no tolerance between shackle plates and spring.

Associated Bolts and Bushes

• M16 Greaseable Shackle Bolt
• M18 Rocker Roller Greaseable Shackle Bolt
• 18mm – 22mm Rocker Roller Bush

Replacement Shackle Bolts, Caravan Trailer Kits
