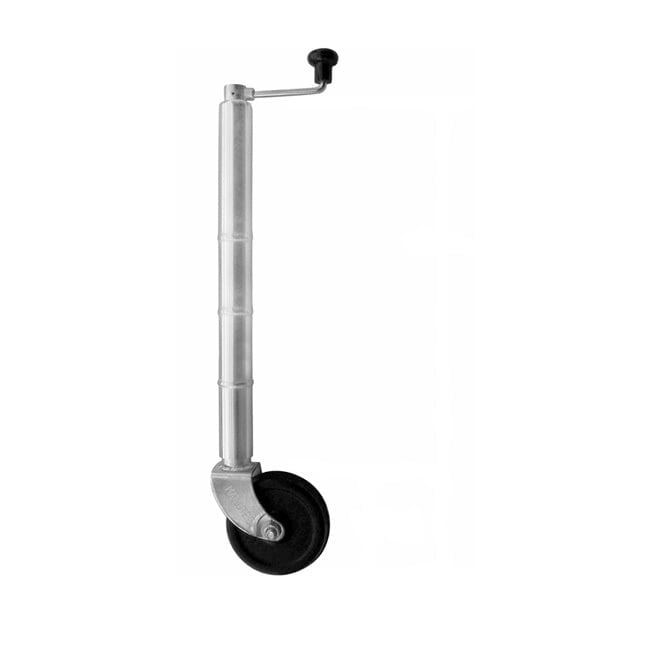

6-inch Extra Height Bolt On Jockey Wheel

The 6-inch extra height bolt-on jockey wheel offers light trailers with larger wheels the necessary support to keep it stable when not attached to the tow vehicle.

Extra High jockey wheels are also suited to larger vehicles. These types of vehicles lift the trailer coupling higher off the ground making it essential to have a longer jockey wheel.

6-inch Extra Height Bolt OnIf you have problems with the 6-inch jockey wheel, consider some larger wheel versions.

There are four types of high-quality Jockey Wheels in the 6-inch rubber range

  • Bolt-on with a Clamp
  • Bolt-on No Clamp
  • Extra Height with a Clamp
  • Extra Height No Clamp
  • U-Bolt Swivel to suit 3-inch and 4-inch trailer chassis rails.

Choosing the right jockey wheel is critical. It helps in more ways; it helps manoeuvre the caravan, and lower and raise the A-frame drawbar bar when required.

Although most caravans come with a jockey wheel, it’s advisable to invest in a good replacement that suits your weight rating better.

If your caravan has a load capacity of 500 kg or below, this is a perfect choice for you. It’s easy to use, adjust, remove, and manoeuvre. Made of solid rubber, it comes with a nylon insert and clamp bolts for secure attachment.

We recommend this product for trailers having 4-leaf spring suspensions or smaller.

Note: Wheels are rated for different loads and have two functions

  • Lift the caravan off the tow ball.
  • To move the caravan to its location. When moving your trailer, do not forget to lower the stem for maximum efficiency.

Technical Specifications

  • Wheel diameter – 150mm x 50mm
  • Weight – 5.2 kg
  • Static Load Capacity – 500kg
  • Dimensions – 60 cm x 15 cm x 15 cm
  • Zinc Coating
  • Lift 225mm
  • Nylon Bore in the Wheel
  • Solid tyre rubber Wheel

We offer a wide range of jockey wheels, each with a different load capacity.

More Jockey Wheels and Parts are available below

Additional information

Weight5.2 kg
Dimensions60 × 15 × 15 cm
