6-inch Swing Up Jockey Wheel

The 6-inch swing-up jockey wheel with solid rubber tyre has a maximum static load capacity of 500kg.

It features a swing-away bracket for convenient stowage when not in use.

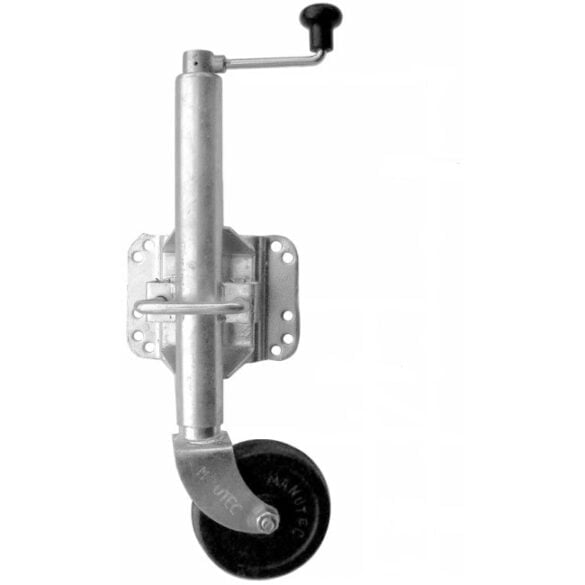

JW2UB-650px Swing Up U-bolt Jockey Wheel When choosing a 6-inch swing-up jockey wheel, it is important to consider the weight of your trailer, the maximum load capacity of the wheel, and the material of the wheel. You should also make sure that the wheel is compatible with your trailer’s drawbar.

If you have problems with the 6-inch jockey wheel, consider some larger wheel versions.

There are four types of high-quality Jockey Wheels in the 6-inch rubber range

  • Bolt-on with a Clamp
  • Bolt-on No Clamp
  • Extra Height with a Clamp
  • Extra Height No Clamp
  • U-Bolt Swivel to suit 3-inch and 4-inch trailer chassis rails.

Choosing the right jockey wheel is critical. It helps in more ways; it helps manoeuvre the caravan, and lower and raise the A-frame drawbar bar when required.

Although most caravans come with a jockey wheel, it’s advisable to invest in a good replacement that suits your weight rating better.

If your caravan has a load capacity of 500 kg or below, this is a perfect choice for you. It’s easy to use, adjust, remove, and manoeuvre. Made of solid rubber, it comes with a nylon insert and clamp bolts for secure attachment.

We recommend this product for trailers having 4-leaf spring suspensions or smaller.

Note: Wheels are rated for different loads and have two functions

  • Lift the caravan off the tow ball.
  • To move the caravan to its location. When moving your trailer, do not forget to lower the stem for maximum efficiency.

Technical Specifications

  • Wheel diameter – 150mm x 50mm
  • Weight – 5.2 kg
  • Static Load Capacity – 500kg
  • Dimensions – 52 cm x 15 cm x 15 cm
  • Zinc Coating
  • Max Height: 520mm
  • Lift 225mm
  • Nylon Bore in the Wheel
  • Solid tyre rubber Wheel

We offer a wide range of jockey wheels, each with a different load capacity.

More Jockey Wheels and Parts are available below

Additional information

Weight5.2 kg
Dimensions60 × 15 × 15 cm
